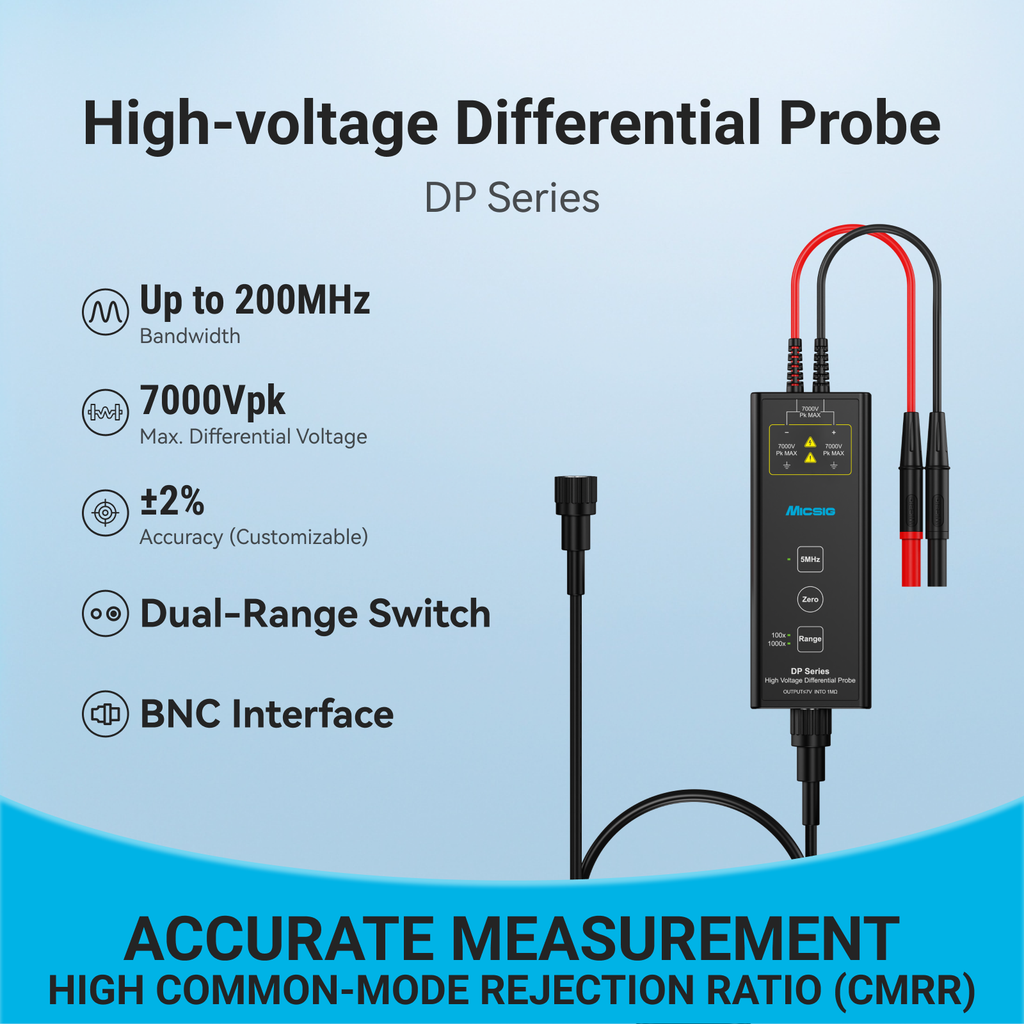

Specifications
| Parameter | Value |
|---|---|
| Bandwidth | 200MHz |
| Max. Input Differential Voltage (DC+AC PK) | 700V(100X), 7000V(1000X) |
| Noise(Full bandwidth) | ≤ 200mVrms(100X), ≤ 600mVrms(1000X) |
| CMRR | ＞-26dB(100MHz), ＞-30dB(10MHz), ＞-60dB(100kHz), ＞-80dB(DC) |
| Delay Time | 12.5ns(100X), 12.5ns(1000X) |
| Input Impedance | 120MΩ/0.78pF(differential), 60MΩ/1.57pF(each input to ground) |
| Output Impedance | 1MΩ |
