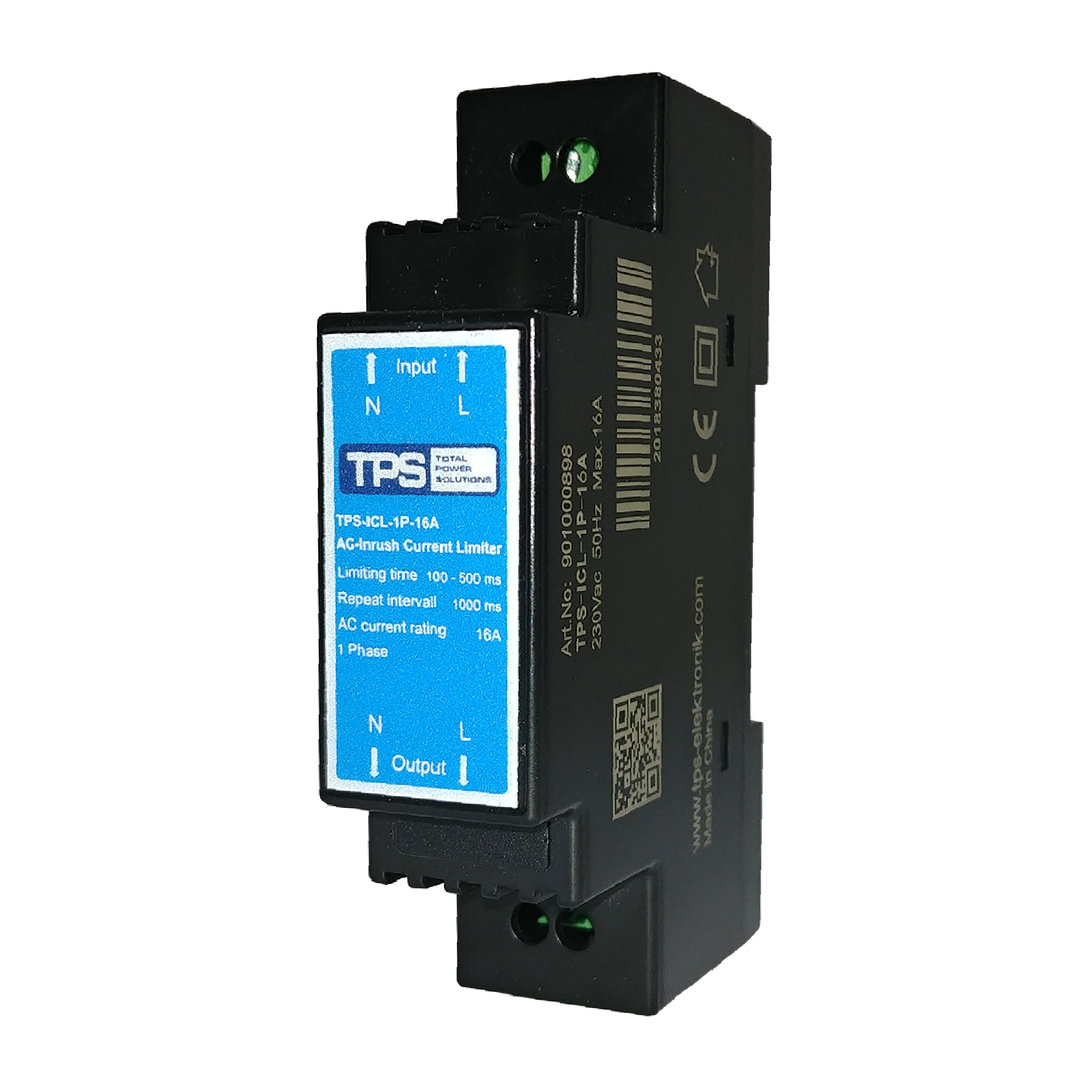

AC-Inrush Current Limiter Slim Series - TPS-ICL-1P-16A

The TPS-ICL-1P-16A AC limiter is a key model in the AC-Inrush Current Limiter Slim Series, designed as a DIN-Rail slim inrush current limiter for inductive and capacitive loads. It features an integrated bypass relais, distinguishing it from simple NTC solutions. As a 45A peak current limiter, it restricts peak current to 45A for 100-500ms, serving as a reliable inrush current protection device. Operating at 230VAC (within the 207-253VAC range, 47-63Hz), this 16A AC current limiter comes with screw terminals compatible with 16-12 AWG (1.3-3.3mm) wires. Certified with CE and RoHS, the IP20 inrush current limiter is ideal for applications such as switching mode power supply (SPS) limiter use, power factor correction (PFC) systems, AC power sides, large rectifier current protection, and diode bridge protection.

Key Features

• Integrated Bypass Relais: This Integrated bypass relais current limiter adopts an integrated bypass relay design, offering better performance than simple NTC solutions.
• Peak Current Control: As a 45A peak current limiter, it limits peak current to 45A for 100-500ms, effectively protecting circuits from inrush current damage.
• Load Compatibility: Engineered as an inductive capacitive loads limiter, it is suitable for both inductive and capacitive load types.
• DIN-Rail Mounting: The DIN-Rail slim inrush current limiter is designed for easy mounting on DIN RAIL TS 35/7.5 or TS 35/15, facilitating convenient installation.
• Electrical Parameters: This 230VAC inrush current limiter operates within 207-253VAC, 47-63Hz, with a 16A AC current rating, meeting various system requirements.
• Certifications: Compliant with CE and RoHS, this CE RoHS current limiter adheres to international safety and environmental standards.
• Protective Functions: It helps protect against unintended fuse release, allows smaller and faster circuit breakers, and enables reduction of cabling sections.
