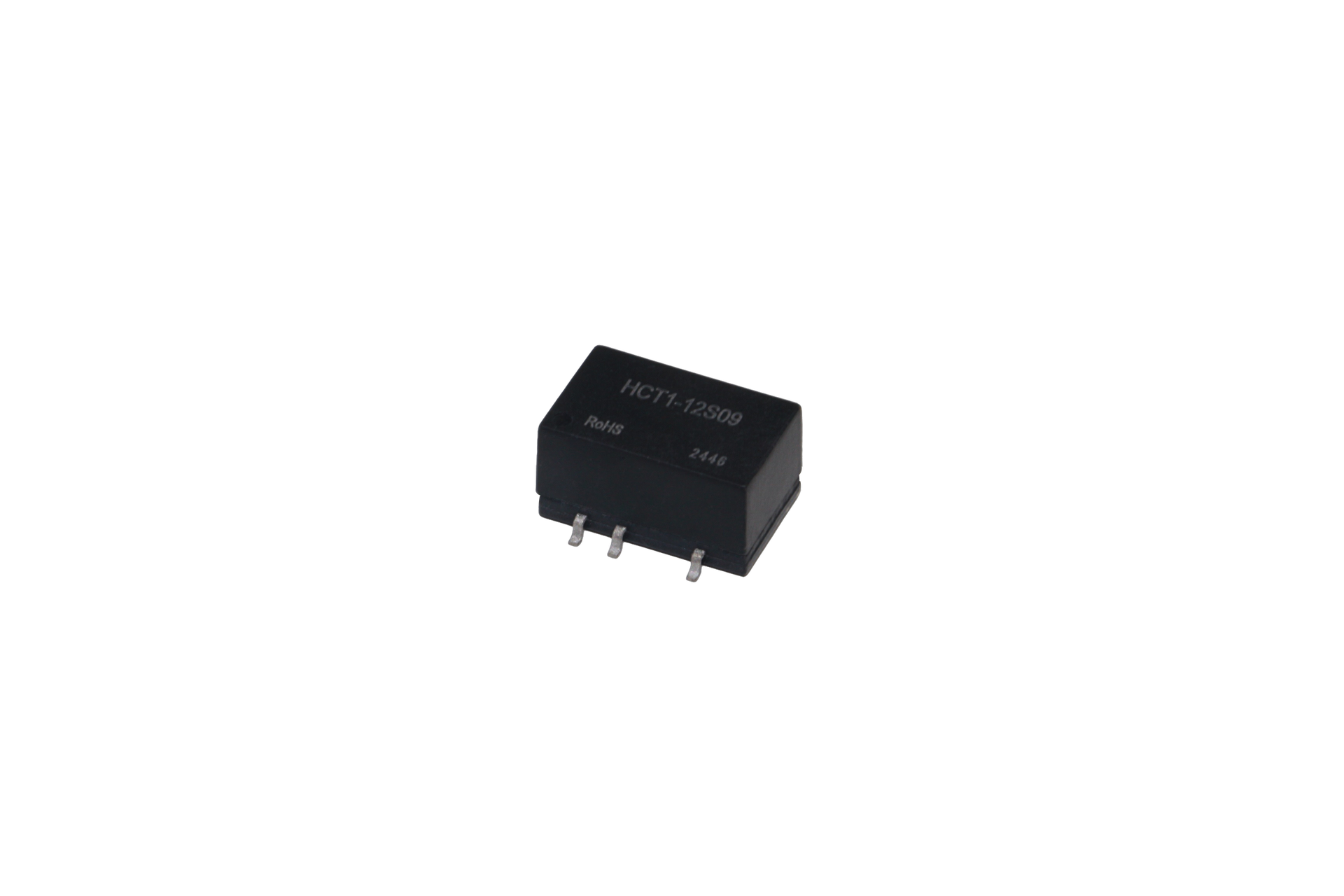

TPS-HCT112S09 DC/DC Converter - High-Performance Module in TPS-HCT1 Series
The TPS-HCT112S09 is a high-reliability member of the TPS-HCT1 Series DC/DC Converter, designed to excel in demanding industrial and automotive environments. It belongs to a versatile product family that includes models like the TPS-HCT103S03 DC/DC module, TPS-HCT105S05 power supply, and TPS-HCT112S12 converter, ensuring consistent performance and seamless system integration. As an SMD package DC/DC converter, it features a compact and surface-mount design, ideal for space-constrained installations. Operating across an extended temperature range of -40°C to +105°C, it stands out as a -40°C to +105°C DC/DC module, guaranteeing stable operation in extreme environmental conditions. With an isolation voltage of 1500VDC, it qualifies as a 1500VDC isolation converter, enhancing electrical safety in critical systems. Boasting 88% efficiency, it is an 88% high efficiency DC/DC converter, optimizing energy utilization for reduced power loss. It features a low no-load input current of 5mA, classifying it as a No-load 5mA input current converter, which is energy-efficient in standby modes. It accepts input voltages of 3.3VDC, 5VDC, 12VDC, 15VDC, and 24VDC, falling under the 3.3VDC 5VDC 12VDC 15VDC 24VDC input category, and provides versatile output options including 3.3V, 5V, 9V, 12V, 15V, and 24V, covering the 3.3V 5V 9V 12V 15V 24V output range. Equipped with Short-circuit protection DC/DC, it ensures operational stability and prevents damage from unexpected electrical faults. The module is widely used as an Industrial control DC/DC module and Automotive DC/DC converter, thanks to its robust performance. It features a UL94V-0 flame-retardant casing, classifying it as a UL94V-0 flame-retardant module, and has a 3500Kh MTBF rating, qualifying as a 3500Kh MTBF DC/DC module, ensuring long-term reliability.
Key Features
- Series Affiliation: Integral part of the TPS-HCT1 Series DC/DC Converter, compatible with models such as TPS-HCT103S03 DC/DC module, TPS-HCT105S05 power supply, and TPS-HCT112S12 converter for flexible system configuration.
- SMD Package: Utilizes an SMD package, functioning as an SMD package DC/DC converter for space-efficient surface-mount installations.
- Extended Temperature Range: Operates reliably from -40°C to +105°C, qualifying as a -40°C to +105°C DC/DC module for harsh industrial and automotive environments.
- Electrical Isolation: Features 1500VDC isolation, making it a 1500VDC isolation converter for enhanced safety in electrical systems.
- High Efficiency: Delivers 88% efficiency, classifying it as an 88% high efficiency DC/DC converter for optimal energy savings.
- Low No-Load Current: Boasts a 5mA no-load input current, functioning as a No-load 5mA input current converter for energy efficiency in standby.
- Versatile I/O: Accepts 3.3VDC, 5VDC, 12VDC, 15VDC, 24VDC inputs (part of 3.3VDC 5VDC 12VDC 15VDC 24VDC input options) and provides 3.3V, 5V, 9V, 12V, 15V, 24V outputs (covering 3.3V 5V 9V 12V 15V 24V output needs).
- Safety Protection: Equipped with Short-circuit protection DC/DC to ensure stable operation and prevent damage from short-circuit events.
- Broad Applications: Ideal as an Industrial control DC/DC module and Automotive DC/DC converter for critical operation scenarios.
- Flame-Retardant Design: Uses UL94V-0 material, classifying it as a UL94V-0 flame-retardant module for enhanced safety in high-risk environments.
- Long-Term Reliability: Boasts a 3500Kh MTBF rating, qualifying as a 3500Kh MTBF DC/DC module for extended service life in demanding applications.
Specifications
Parameter | Value |
---|---|
Dimensions (L*W*H)(mm) | 13.5*11.0*7.25 |
Efficiency | 88% |
Input Voltage | 12VDC |
Output Current | 11-111mA |
Output Power | 1W |
Output Voltage | 9VDC |
Weight | 1.7g |
Isolation Voltage | 1500VDC |
Package Type | SMD |
