Oscillograph TO2002 | Micsig TO2002 Tablet Oscilloscope

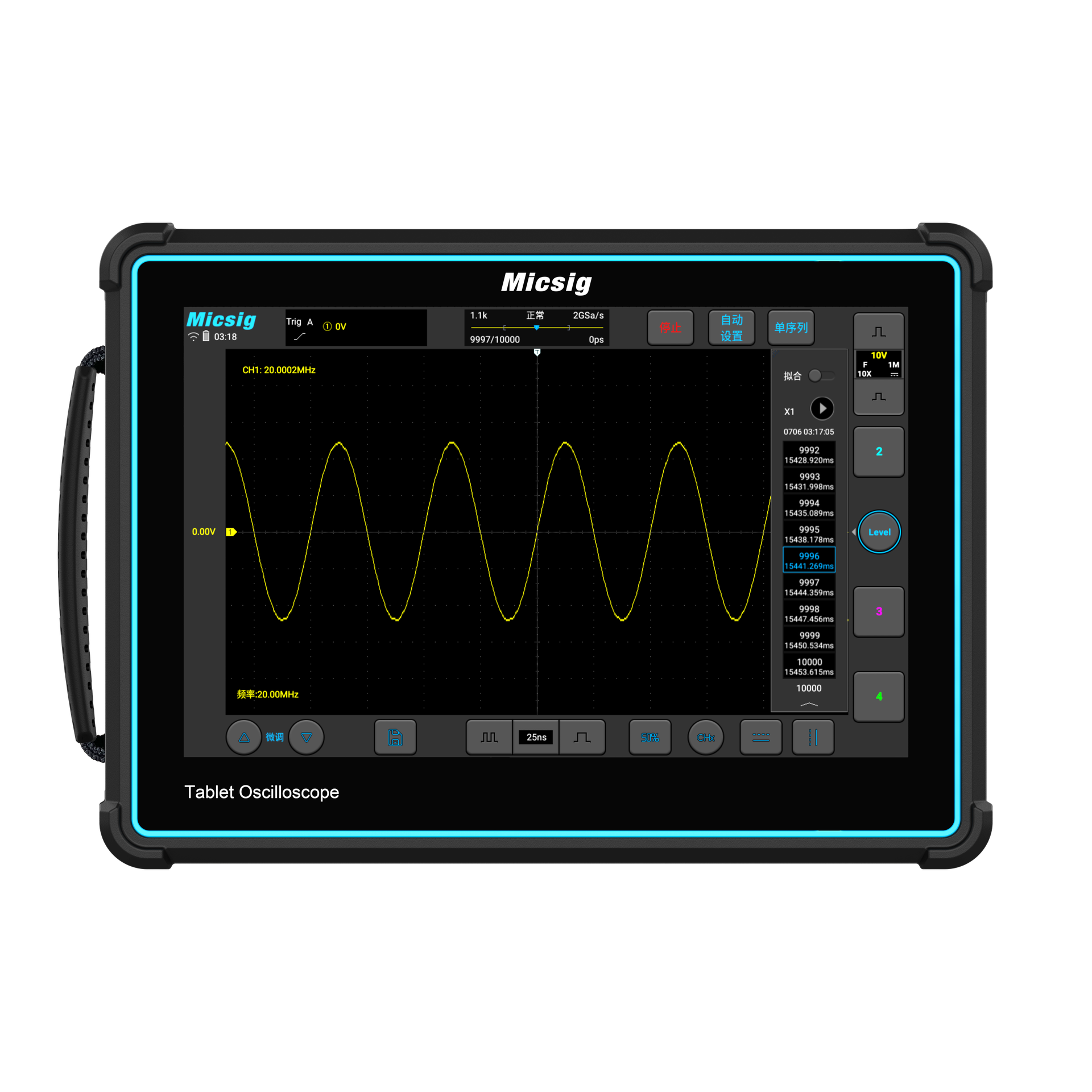

The Oscillograph TO2002, also known as the Micsig TO2002 Tablet Oscilloscope, is a portable handheld oscilloscope designed for electronic debugging and field work. As a 200MHz bandwidth oscilloscope with 2 analog channels, it delivers a max. 1GSa/s sampling rate and 110Mpts memory depth, capturing waveforms at 78,000 wfms/s. Featuring a 10.1-inch integrated capacitive touchscreen with 1280×800 resolution, it runs on an Android-based OS for intuitive operation and supports Wi-Fi remote control via PC software or mobile app (Android/iOS). Built with a rugged and compact design weighing only 1.9kg, it includes a 7500mAh Li-Ion battery for extended field use, 32GB internal storage, and comprehensive interfaces such as USB 3.0/2.0, Type-C, HDMI, and trigger out. The TO2002 supports hardware-based serial bus decoding (RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C), advanced trigger types, and 31 auto measurements, making it an ideal tool for engineers who require a reliable, portable oscilloscope for debugging and testing in various environments.

Key Features

• Portable & Lightweight Design: Weighs only 1.9kg with a compact form factor, ideal for handheld use and fieldwork.
• High Performance Specs: 200MHz bandwidth, 1GSa/s sampling rate, 110Mpts memory depth, and 78,000 wfms/s capture rate.
• Android-Based Touch Interface: 10.1-inch 1280×800 touchscreen with intuitive UI, supporting app installation and remote control via Wi-Fi.
• Long Battery Life: 7500mAh Li-Ion battery enables extended operation without external power.
• Comprehensive Connectivity: Includes USB 3.0/2.0, Type-C, HDMI, Wi-Fi, and trigger out for flexible integration.
• Advanced Debugging Features: Hardware serial decoding, multiple trigger types, 31 auto measurements, and hardware digital filtering.
