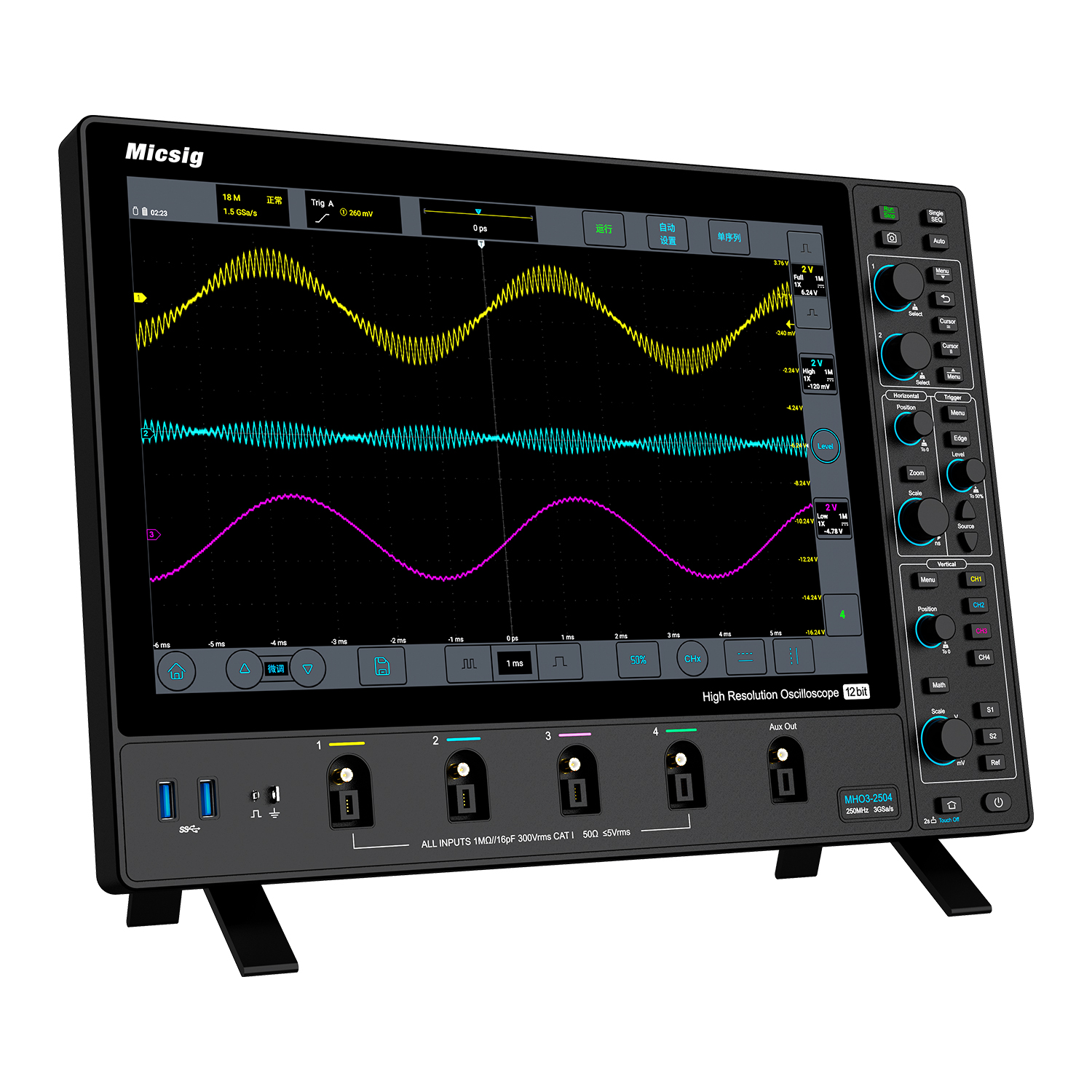

Oscillograph MHO3-5004 High Resolution Oscilloscope

The MHO3-5004 is a professional 4-channel digital oscilloscope from Micsig, featuring 12-bit vertical resolution, 500 MHz bandwidth, and a 3 GS/s real-time sampling rate for detailed signal analysis. With its 14-inch anti-glare touchscreen (1920x1200 resolution), 360 Mpts memory depth, and a high waveform capture rate of 230,000 wfms/s, it provides exceptional clarity and performance for engineers in debugging, testing, and research applications. The oscilloscope supports advanced functions like segmented storage acquisition, FFT analysis, and extensive bus decoding (including CAN, LIN, SPI, I²C, ARINC-429, and MIL-STD-1553B). It also offers remote control via PC or mobile app, runs on Android, and includes a low noise floor of <80 µVrms for accurate measurement of weak signals.

Key Features

• High Resolution ADC: 12-bit vertical resolution with 4096 quantization levels, offering 16 times more detail than traditional 8-bit oscilloscopes.
• Wide Bandwidth: 500 MHz bandwidth with <0.7 ns rise time for high-frequency signal analysis.
• Large Memory Depth: 360 Mpts memory depth ensures signal fidelity even with long time-base signals and multiple active channels.
• Fast Waveform Capture: 230,000 waveforms per second capture rate for capturing intermittent and complex signals.
• Low Noise Design: Noise floor <80 µVrms at full bandwidth, enabling precise measurement of small signals.
• Segmented Storage Acquisition: Captures and replays intermittent signals efficiently, ideal for pulse and serial bus analysis.
• Advanced Analysis Tools: Includes FFT function, advanced math operations, and auto-measurements for comprehensive signal analysis.
• Extensive Bus Decoding: Standard support for RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC-429, and MIL-STD-1553B.
• Remote Control & Connectivity: Supports PC and smartphone remote control, SCPI commands, HDMI output, USB 3.0, USB Type-C, and LAN.
• User-Friendly Interface: 14-inch capacitive touchscreen with intuitive UI, allowing users to operate within minutes.
• Portable & Space-Saving: Ultra-thin design (35.8 mm) with wall-mount option, weighing only 4.3 kg.
• Android Operating System: Built-in app store, browser, and tools for flexible operation and expansion.
