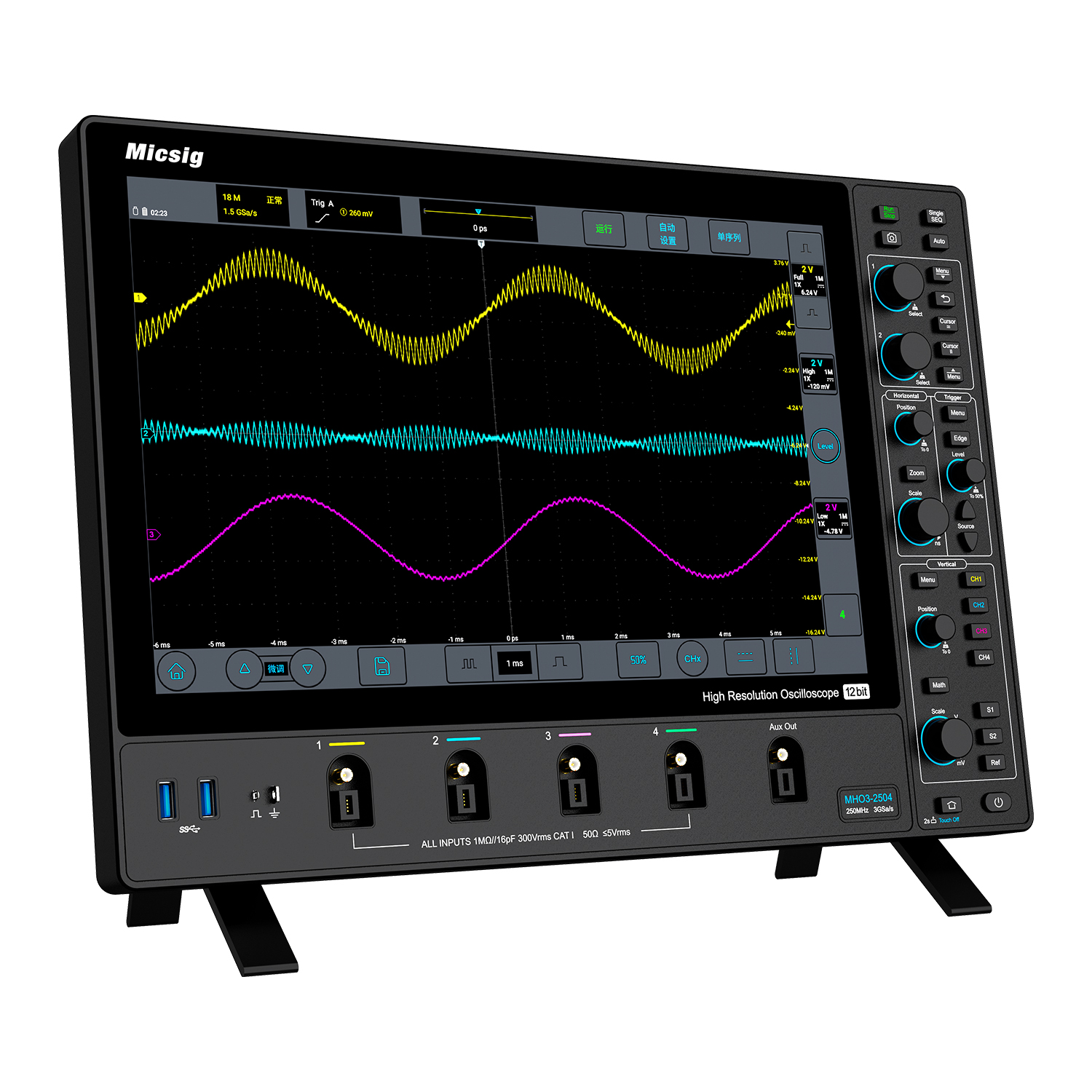

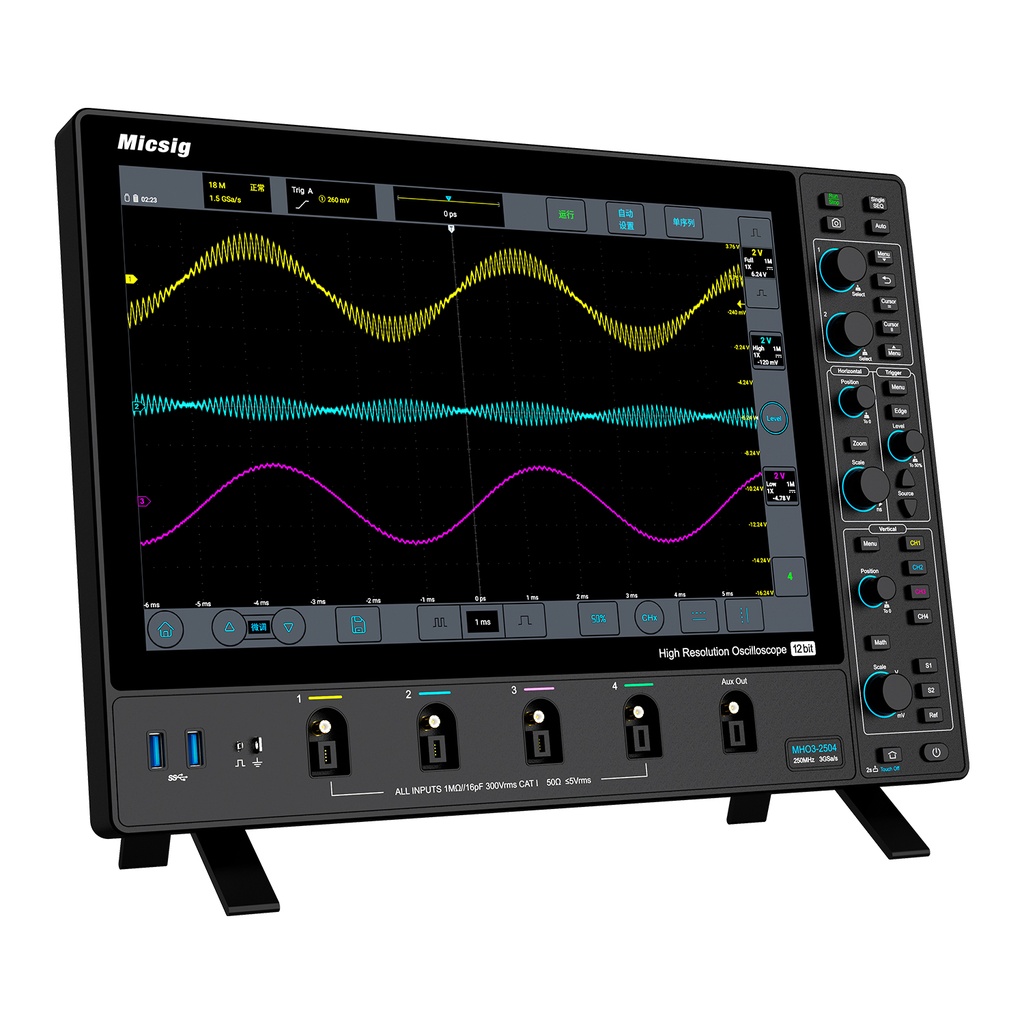

Micsig MHO 3 Series High Resolution Oscilloscope - MHO3-5004

The Micsig MHO 3 Series High Resolution Oscilloscope - MHO3-5004 is a top-tier 4-channel High Resolution Oscilloscope, leading the MHO 3 series with exceptional performance for demanding applications in electronics, automotive, and aerospace. As a 500MHz Bandwidth High Resolution Oscilloscope, it combines a 3GSa/s Sampling Rate Oscilloscope capability and 360Mpts memory depth, solidifying its position as a Large Memory Depth Oscilloscope (360Mpts) for capturing complex, high-frequency waveforms with precision. Featuring a 14-inch anti-glare touch screen with 1920x1200 resolution, it operates as a 14-inch Touch Screen Oscilloscope, delivering sharp waveform visualization and intuitive full-touch control. Its 12-bit vertical resolution (4096 quantization levels) classifies it as a 12-bit Vertical Resolution Oscilloscope, offering 16 times the detail of traditional 8-bit oscilloscopes, enabling engineers to detect subtle signal variations critical for advanced analysis. With a High Waveform Capture Rate Oscilloscope (230,000wfms/s) and Low Noise Oscilloscope (<80μVrms) performance, it excels at capturing transient and weak signals, essential for debugging and high-precision testing. It supports Segmented Storage Oscilloscope functionality to efficiently capture intermittent signals over extended periods and High-pass Low-pass Filter Oscilloscope features for targeted frequency range analysis. As a Serial Bus Decoding Oscilloscope, it handles RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, and I²C, while also functioning as a MIL-STD-1553B Decoding Oscilloscope and ARINC-429 Decoding Oscilloscope, making it versatile for diverse communication protocol testing. It includes Advanced Math & FFT Oscilloscope capabilities, such as addition, subtraction, integration, differentiation, and real-time spectral analysis via FFT. Designed for flexibility, it is a Remote Control Oscilloscope (PC/Mobile) with support for PC, smartphone, and SCPI command control, and a Wall-mountable High Resolution Oscilloscope with a 130mm x 300mm interface to optimize workspace. The Mic-OPI Probe Interface Oscilloscope enables automatic probe compensation and calibration, with a BNC adapter for broad probe compatibility. Equipped with 32GB internal storage, it supports multiple file formats (WAV, CSV, BIN) for data analysis, and a user-friendly UI (masterable in 5 minutes), balancing power and ease of use for professionals.

Key Features

• Superior Bandwidth & Resolution: 500MHz bandwidth, 4 channels, 3GSa/s sampling rate, 360Mpts memory, and 12-bit vertical resolution for high-frequency, detailed signal capture.
• Clear Display & Easy Operation: 14-inch 1920x1200 touch screen for sharp visualization and intuitive control, with a user-friendly interface for quick proficiency.
• Advanced Signal Handling: 230,000wfms/s capture rate, <80μVrms noise floor, segmented storage, and high-pass/low-pass filters for precise signal processing.
• Comprehensive Decoding & Analysis: Supports multiple serial buses, MIL-STD-1553B, ARINC-429, and advanced math/FFT functions for in-depth protocol and signal analysis.
• Flexible Connectivity & Mounting: Remote control via PC/mobile, Mic-OPI probe interface, and wall-mountable design for enhanced usability and space efficiency.
