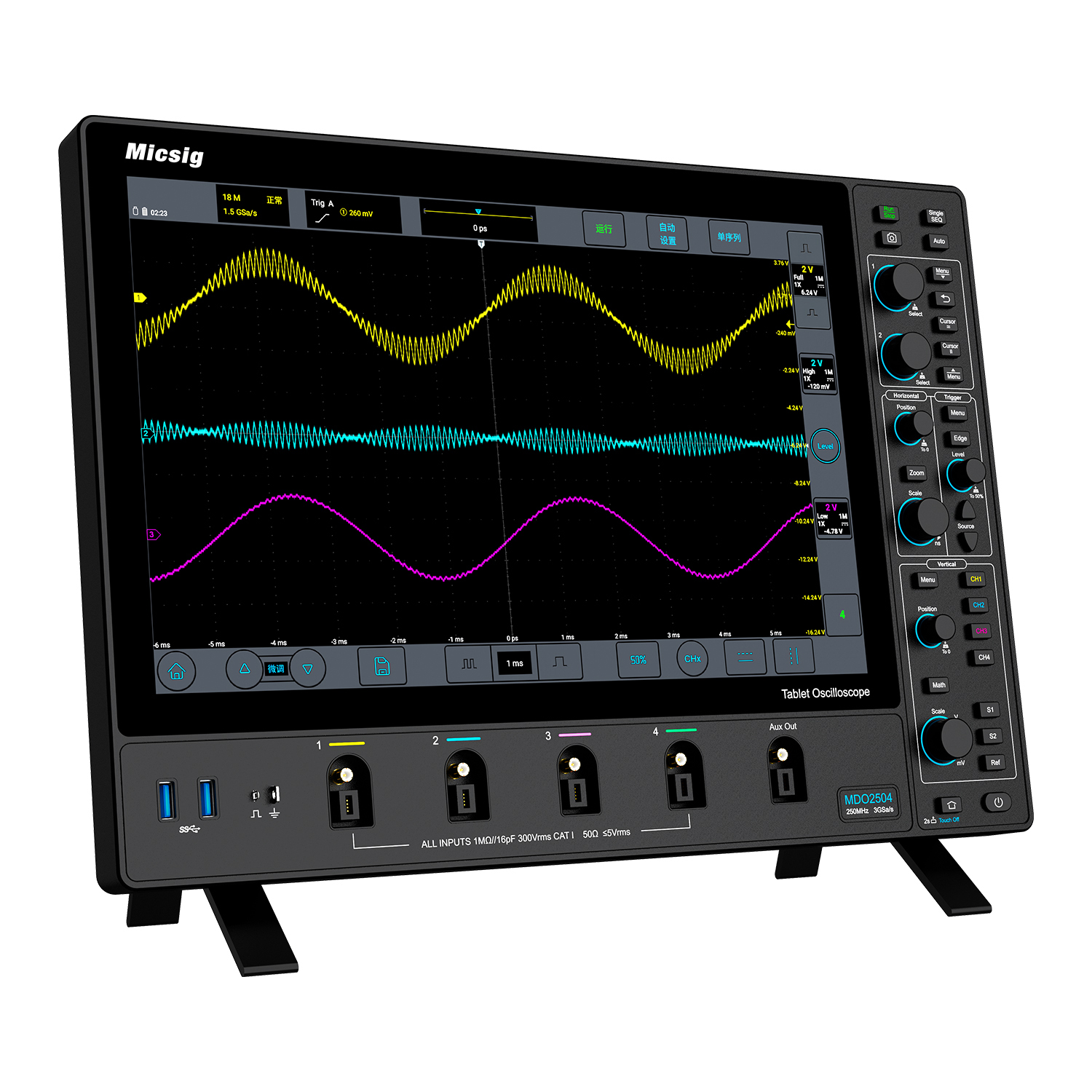

Micsig MDO Series Digital Storage Oscilloscope - MDO5004

The Micsig MDO Series Digital Storage Oscilloscope MDO5004 is a high - performance bench - top oscilloscope that stands out in the field of electronic testing. As a 500MHz Bandwidth Digital Oscilloscope, 4-channel Digital Storage Oscilloscope with 3GSa/s Sampling Rate Oscilloscope capabilities, it can accurately capture and analyze a wide range of complex signals. It features a 14-inch Touch Screen Oscilloscope (1920x1200), offering an intuitive and user - friendly interface. The high - resolution display ensures clear visualization of waveforms, enhancing the efficiency of signal analysis. With a High Waveform Capture Rate Oscilloscope (230,000wfms/s), it can effectively capture transient signals, providing comprehensive data for in - depth analysis. The MDO5004 is also a Large Memory Depth Oscilloscope (360Mpts), which is crucial for long - term signal recording and accurate waveform reproduction. Even when two channels are open simultaneously, it maintains excellent signal fidelity, ensuring reliable results. Additionally, it is a Low Noise Oscilloscope (<90μVrms), allowing engineers to precisely capture weak but important signals during circuit debugging. As a Segmented Storage Oscilloscope, it divides the limited memory space into multiple small segments. This feature enables it to effectively capture target signals multiple times over a long period and replay them for further analysis, which is particularly useful when dealing with intermittent signals. The MDO5004 is equipped with High - pass Low - pass Filter Oscilloscope functionality. Hardware digital filtering can selectively pass or block signal components within a specific frequency range, facilitating the analysis of specific frequency bands of a signal or the observation of changes in specific frequency components. It is a Serial Bus Decoding Oscilloscope (RS - 232/CAN/CAN FD/LIN/SPI/I²C), MIL - STD - 1553B Decoding Oscilloscope, and ARINC - 429 Decoding Oscilloscope. This wide - range bus decoding support makes it suitable for various communication protocol analysis tasks in the automotive, aerospace, and electronics industries. Moreover, it is a Remote Control Oscilloscope (PC/Mobile). The MDO5004 supports PC and smartphone remote control, along with SCPI commands, enabling engineers to operate it flexibly from a distance. It also has a Wall - mountable Digital Oscilloscope design, with a 3.58cm ultra - thin body and a 130 mm x 300 mm wall - mount interface, which can save desktop space and provide flexible installation options. The MDO5004 comes with an original Mic - OPI Probe Interface Oscilloscope. This interface can automatically identify passive probe attenuation and perform one - click auto - calibration. It also comes standard with a BNC adapter, making it compatible with a wide range of BNC probes. In addition, it offers Advanced Math & FFT Oscilloscope functions. It supports various mathematical calculations such as addition, subtraction, multiplication, division, integration, and differentiation. It also supports custom function formulas for advanced signal analysis and FFT (Fast Fourier Transform) for real - time spectral analysis of collected waveform signals. The MDO5004 runs on the instrument - dedicated SigTestUI™ operating system. Thanks to the accumulation of 10 years of UI design experience, the user interface is highly simplified, allowing new engineers to quickly learn to use it in just 5 minutes.

Key Features

• High - Performance Specifications: 500MHz bandwidth, 4 channels, 3GSa/s sampling rate, 230,000wfms/s waveform capture rate, and 360Mpts memory depth ensure accurate signal capture and analysis.
• User - Friendly Design: 14 - inch touch screen with 1920x1200 resolution and an intuitive UI make operation easy. It can be wall - mounted to save space.
• Advanced Signal Processing: Low noise floor, segmented storage, high - pass and low - pass filters, and advanced math and FFT functions enhance signal analysis capabilities.
• Versatile Decoding: Supports serial bus decoding for multiple protocols like RS - 232, CAN, and more, as well as MIL - STD - 1553B and ARINC - 429 decoding, suitable for various industries.
• Remote Control and Probe Compatibility: Allows remote control via PC or mobile, and the Mic - OPI probe interface enables easy probe calibration and compatibility with BNC probes.
