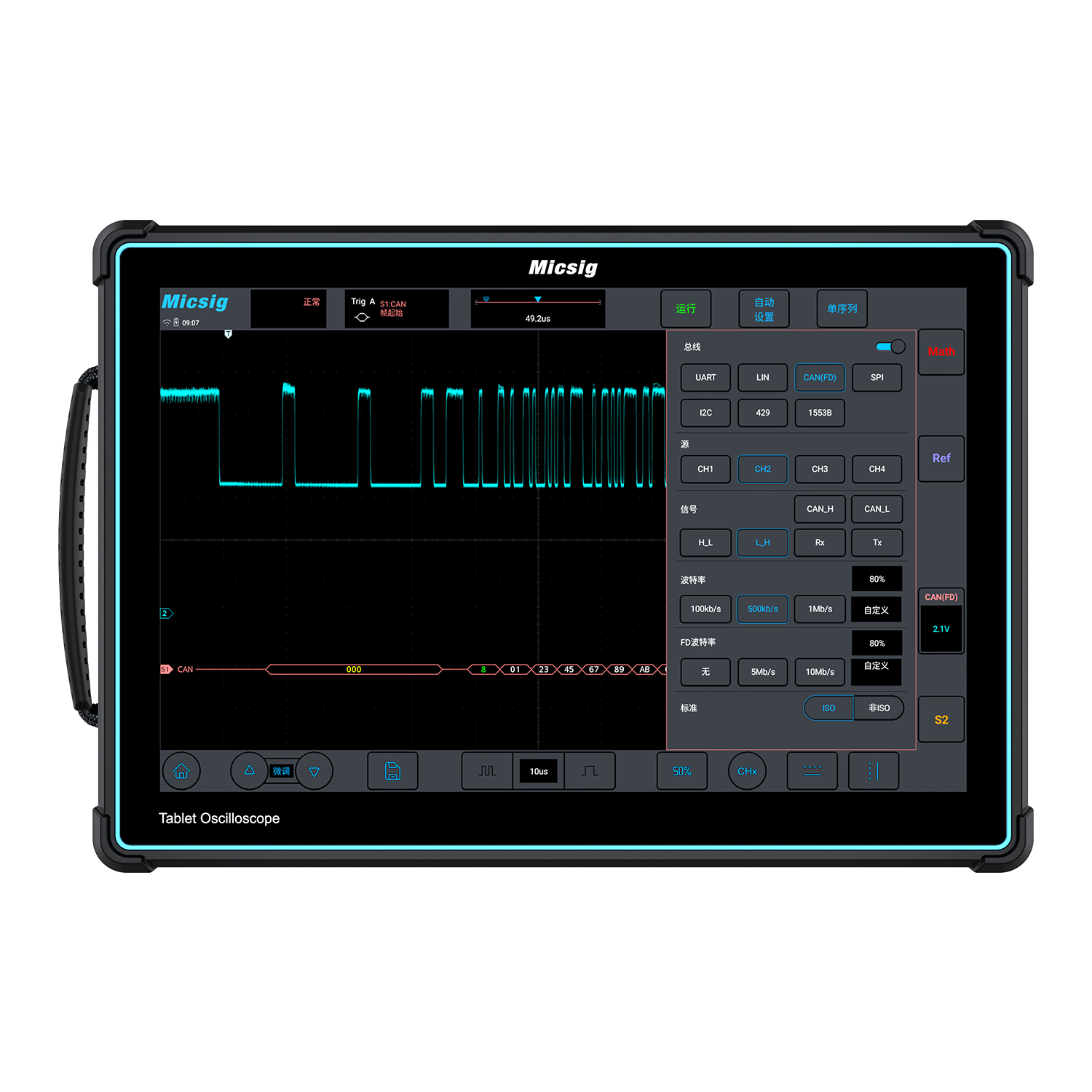

Micsig ETO Series Tablet Oscilloscope - ETO3504

The Micsig ETO Series Tablet Oscilloscope ETO3504 is a high-performance 4-channel Tablet Oscilloscope, part of the Micsig ETO Series, designed to deliver exceptional functionality for both laboratory and field applications. As an ETO3504 Tablet Oscilloscope, it features a 350MHz bandwidth, 3GSa/s sampling rate (qualifying as a 3GSa/s Sampling Rate Oscilloscope), and 360Mpts memory depth, making it a Large Memory Depth Oscilloscope (360Mpts) that ensures accurate signal capture even for complex waveforms . Equipped with a 14-inch antiglare full touch screen (1920*1200 pixels), it offers intuitive operation as a 14-inch Touch Screen Oscilloscope, complemented by the Micsig Sigtest OS Oscilloscope system for seamless multitasking . Its built-in 7.4V/13500mAh Li-ion battery enhances portability, classifying it as a Portable Tablet Oscilloscope with Battery, ideal for field use, while a special power lock design prevents accidental startup . This oscilloscope supports advanced features including High-pass Low-pass Filter Oscilloscope functionality, Segmented Storage Oscilloscope capability (capturing up to 10,000 events), and a High Waveform Capture Rate Oscilloscope (230,000wfms/s), enabling efficient analysis of intermittent signals . It also provides comprehensive serial bus decoding for RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC-429, and MIL-STD-1553B, making it a versatile Serial Bus Decoding Oscilloscope, as well as a MIL-STD-1553B Decoding Oscilloscope and ARINC-429 Decoding Oscilloscope . With support for remote control via PC and mobile app (as a Remote Control Oscilloscope (PC/Mobile)) and a 75mm x 75mm standard VESA mount interface (VESA Mount Tablet Oscilloscope), it offers flexible setup options for various workspaces . Additionally, its low noise floor (<90μVrms) qualifies it as a Low Noise Oscilloscope, ensuring precise capture of weak signals .

Key Features

• Superior Signal Handling: 350MHz bandwidth, 3GSa/s sampling rate, and 360Mpts memory depth for accurate capture of complex waveforms, suitable for diverse testing scenarios .
• User-Friendly Design: 14-inch full touch screen with intuitive interface, powered by Micsig Sigtest OS for efficient operation .
• Portability & Durability: Built-in large battery for field use and power lock design, complemented by VESA mount compatibility for flexible placement .
• Advanced Analysis Tools: Segmented storage, high waveform capture rate, and comprehensive serial bus decoding (including MIL-STD-1553B and ARINC-429) for in-depth signal analysis .
• Remote Control Capability: Supports PC and mobile remote control, enhancing flexibility in testing setups .
