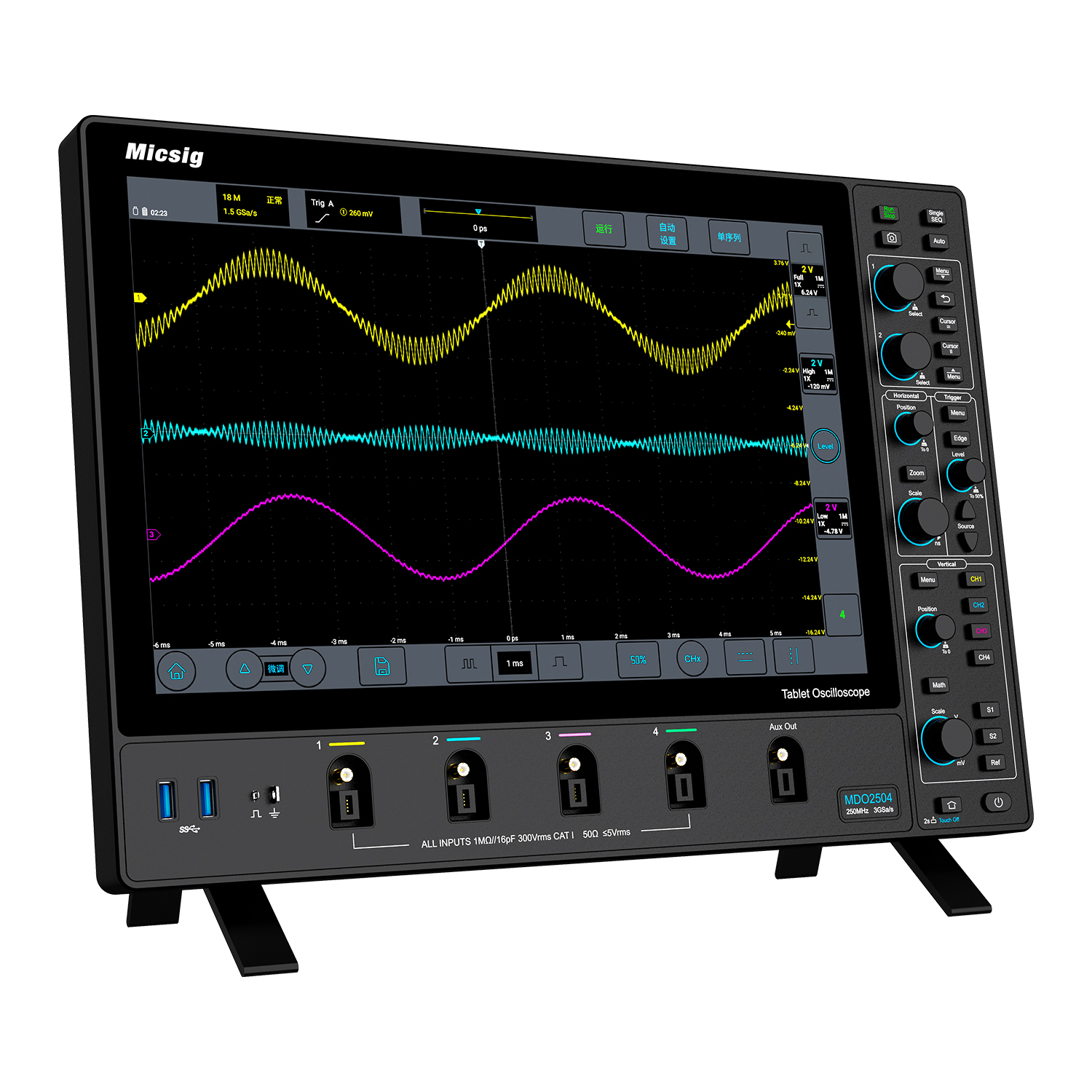

MDO2504 250MHz 4-Channel Digital Storage Oscilloscope

The MDO2504 is a 250 MHz bandwidth, 4-channel digital storage oscilloscope from the MDO Series, offering a maximum real-time sampling rate of 3 GSa/s, up to 360 Mpts memory depth, and a waveform capture rate of 230,000 wfms/s. With a fast rise time of ≤1.4 ns and an ultra-low noise floor of <90 µVrms (at 1 mV/div, 1 MΩ), it captures weak signals with high fidelity. The 14-inch anti-glare touch screen with 1920 x 1200 resolution provides an intuitive user interface, allowing engineers to master operation within minutes. This oscilloscope integrates advanced features such as hardware digital filtering, segmented storage acquisition, and a comprehensive set of math functions including FFT for real-time spectral analysis. It supports multiple trigger types (Edge, Pulse Width, Logic, Runt, Slope, Time Out, Video, Serial) and includes standard serial bus decoding for RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C, ARINC-429, and MIL-STD-1553B. The MDO2504 also offers versatile connectivity with USB 3.0 Host, USB Type-C, LAN, HDMI, and Trigger out, plus a Mic-OPIT™ probe interface for automatic probe compensation. Data can be saved in BIN, CSV, or WAV formats, or as images/videos, making it ideal for comprehensive signal analysis and documentation. Vertical resolution is 8 bits, and statistics measurement tracks up to 10,000 counts of average, max, min, and RMS values.

Key Features

• High Bandwidth & Fast Rise Time: 250 MHz bandwidth with ≤1.4 ns rise time for accurate high-speed signal capture.
• Deep Memory & High Sampling Rate: Up to 360 Mpts memory depth, 3 GSa/s real-time sampling, and 230,000 wfms/s capture rate ensure long-duration waveform fidelity and rare event detection.
• Ultra-Low Noise: Noise floor <90 µVrms (1 mV/div, 1 MΩ) enables precise measurement of small signals.
• Large Touch Display: 14-inch anti-glare capacitive touch screen with 1920 x 1200 resolution for clear waveform viewing and intuitive operation.
• Comprehensive Triggering & Decoding: Supports edge, pulse width, logic, runt, slope, and serial triggers; includes standard decodes for RS232, CAN, LIN, SPI, I²C, ARINC-429, and more.
• Advanced Analysis Tools: Hardware digital filtering, segmented storage, math functions (add, subtract, multiply, FFT, etc.), and statistics measurement with up to 10,000 counts.
• Flexible Connectivity & Storage: USB 3.0 Host, USB Type-C, LAN, HDMI, Trigger out; 32 GB internal storage for saving waveforms and data in multiple formats (BIN, CSV, WAV, image, video).
• Mic-OPIT™ Probe Interface: Automatically matches probe attenuation and performs compensation/calibration, with included BNC adapter for standard probes.
