FSP120-AWAN3
Article Number:
DA1196
Manufacturer Code:
9NA1206900
Manufacturer:
FSP Technology Ltd.
Accessories for Product
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.
Product Description

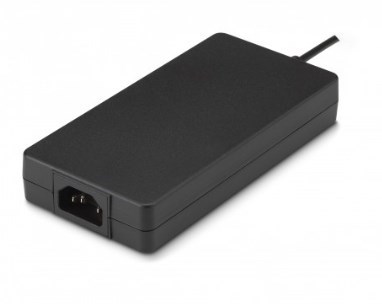

120 W Desktop Adapter – FSP120-AWAN3
The FSP120-AWAN3 is a versatile 120 W desktop adapter with a regulated 19 V / 6.32 A DC output and universal AC input (100–240 VAC). Engineered for safety and reliability, it features OVP, OCP, and SCP protections and is validated through burn-in and Hi-Pot testing. Compact and efficient, it suits a wide range of devices.
Key Features
- Output: 120 W (19 V / 6.32 A DC).
- Input: 100–240 VAC universal.
- Protections: OVP, OCP, SCP.
- Testing: Burn-in and Hi-Pot validated.
- Applications: Notebooks, embedded devices, peripherals.
Specifications
| Parameter | Value |
|---|---|
| Cable Length | 1500mm |
| Connector | DIN Power 4Pol |
| Dimensions (L*W*H)(mm) | 151*75*25mm |
| Efficiency | DoE Level VI |
| Input Voltage | 90-264Vac |
| Output Current | 2.22A |
| Output Power | 120W |
| Output Voltage | 54Vdc |
| Socket | C14 |
| Weight | 0.38kg |
Technical data sheets
Legislation and Compliance
-
RoHS.pdf
-
CE
-
UL
-
WEEE
-
UKCA
