Product Description

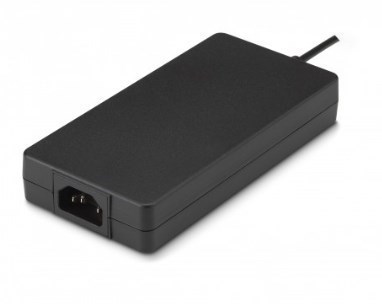

120 W Desktop Adapter – FSP120-AHAN3
The FSP120-AHAN3 is a robust 120 W desktop adapter designed for demanding industrial and computing applications. With full-range AC input via IEC320-C14 and regulated 12 V / 10 A DC output, it delivers consistent power with low ripple. Polarity configuration: P2=+, P4=+, P1=-, P3=-, Shield=-.
Compact dimensions (151.3 × 75.6 × 25.4 mm) and certifications (CB, UL, CE, TUV, RoHS, WEEE) make it suitable for global use. Includes additional design: 3kΩ resistor, 47 pF for EMC and safety.
Key Features
- Output Power: 120 W (12 V / 10 A DC).
- Input: Full-range AC via IEC320-C14.
- Dimensions: 151.3 × 75.6 × 25.4 mm.
- Compliance: CB, UL, CE, TUV, RoHS, WEEE.
Specifications
| Parameter | Value |
|---|---|
| Cable Length | 1500mm |
| Connector | DIN Power 4Pol |
| Dimensions (L*W*H)(mm) | 151*75*25mm |
| Efficiency | DoE Level VI |
| Input Voltage | 90-264Vac |
| Output Current | 10A |
| Output Power | 120W |
| Output Voltage | 12Vdc |
| Socket | C14 |
| Weight | 0.69kg |
Technical data sheets
Legislation and Compliance
-
RoHS.pdf
-
CE
-
UL
-
WEEE
-
UKCA
