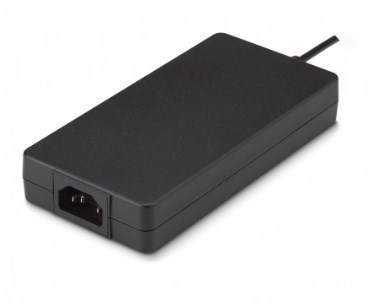

FSP120-AHAN3 120W AC-DC Power Supply / Adapter

The FSP120-AHAN3 is a 120‑watt AC to DC power supply (adapter) from FSP, designed as a reliable power solution for IPC systems, embedded systems, POS systems, industrial control devices, and other ITE applications requiring stable 12V DC output. As a compact power supply unit (PSU) with a C14 socket, this FSP120‑AHAN3 model operates from a wide input voltage range of 90‑264Vac (47‑63Hz) and delivers 12Vdc at 10A (120W continuous). It meets high efficiency standards: ≥88% efficiency compliant with DOE Level VI and ≥89% efficiency compliant with CoC Version 5 Tier 2, ensuring low power consumption and reduced heat generation. The adapter includes comprehensive protection features: over voltage protection (OVP set at 19V), short circuit protection, over current protection (OCP), over temperature protection (OTP), and brown‑out protection. With a low no‑load power consumption ≤0.5W, touch current ≤0.25mA, and an MTBF of 300,000 hours at 25°C (SR332), it offers high reliability. The FSP120‑AHAN3 is also equipped with a PFC circuit, meets EN55032 Class B EMC standards, and has an operating temperature range from 0°C to 40°C (100% load) derating to 55% load at 70°C. This 12V 10A power supply is ideal for use as a computer power supply for industrial PCs, server auxiliary power, POS systems, and embedded applications.

Key Features

• Wide Input & Universal Application: Accepts 90‑264Vac (47‑63Hz) input, making it a universal AC‑DC adapter suitable for global use in IPC, POS, embedded systems, and industrial control.
• High Efficiency & Green Compliance: Achieves ≥88% efficiency (DOE Level VI) and ≥89% (CoC V5 Tier 2), reducing energy waste and meeting stringent international standards.
• Stable 12V Output at 10A: Provides 12Vdc 10A continuous output (120W), with over voltage protection set at 19V, ensuring safe and reliable power for 12V devices.
• Comprehensive Protection Features: Includes over voltage, short circuit, over current, over temperature, and brown‑out protection for enhanced system safety.
• High Reliability & Long Life: MTBF 300,000 hours at 25°C (SR332) and low no‑load power consumption ≤0.5W, ensuring long‑term dependable operation.
• EMC & Safety Certifications: Designed to meet IEC 62368‑1, CB 60950‑1, and CISPR32/EN55032 Class B, FCC Part 15B Class B, with immunity to EN61000‑4‑2/3/4/5/6/8/11.
• Compact & Lightweight: Low‑profile design with C14 inlet, ideal for space‑constrained installations.
• Derating Capability: Operates from 0°C to 40°C (full load) up to 70°C (55% load), suitable for various ambient conditions.
