Product Description

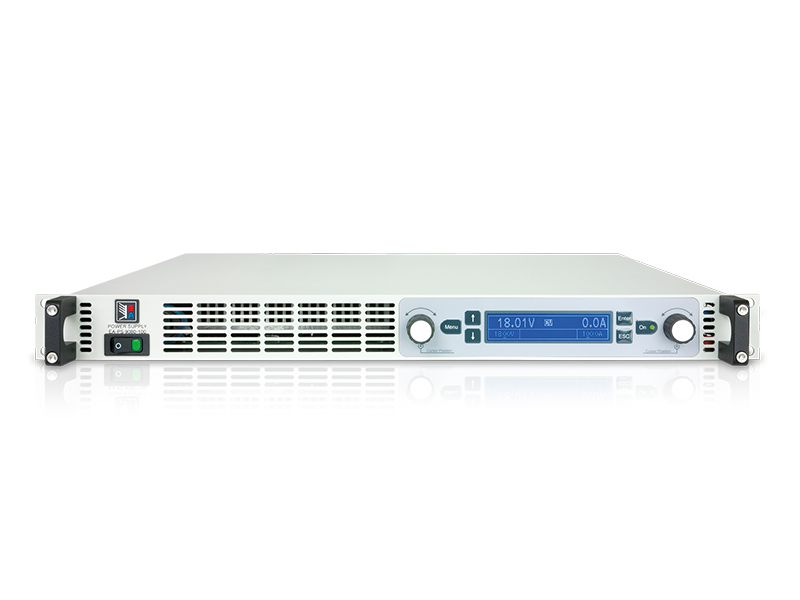

EA‑PS 9500‑20 1U | 500V 20A 3000W 19” Rack Mount Programmable DC Power Supply
The EA‑PS 9500‑20 1U (Order Code:06230408) belongs to EA‑PS 9000 1U series manufactured by EA Elektro‑Automatik. It acts as high-performance alternative to ametek/amtek programmable bench power supply, widely used for 24v power supply, DC power source and industrial lab testing applications.
Core specifications: 0~500V, 0~20A continuously adjustable output, rated 3000W total power, max efficiency up to 93%. 3000W version supports 180~264V AC input with built-in active PFC; high voltage design includes internal discharge circuit to drain residual voltage below 60V after output shutdown, full OVP/OCP/OPP/OTP multi-level protection.
Key Features
- EA‑PS 9500‑20 1U, 500V 20A 3000W rack DC power supply, PN:06230408
- Ultra slim 1U(44mm) 19-inch standard rack enclosure, dimension 482×103×500mm, weight ~11kg
- Active PFC, 180‑264V AC input, high efficiency up to 93%, auto-ranging CV/CC/CP output stage
- Blue dot matrix LCD + dual rotary knobs + front panel lock anti-misoperation function
- Full OVP/OCP/OPP/OTP protection & standard remote sensing function
- Galvanic isolated USB / Ethernet / 15Pin Analog onboard interfaces (0~5V/0~10V switchable)
- Supports SCPI / ModBus RTU protocol & LabView VI driver, Share bus for parallel masterless expansion
- Designed for ametek-grade programmable bench & industrial DC power supply verification
Specifications
| Parameter | Value |
|---|---|
| Output Current | 0-20A |
| Output Power | 3000W |
| Output Voltage | 0-500V |
| Type | 1U |
| Characteristic Curve | U/I/P autoranging |
| External Control | Analogue 0-5V/0-10V, USB, LAN |
| Housing | 19" rack |
| Human Interface | Graphicdisplay & Menue |
| Special Feature | Resistance |
Technical data sheets
Legislation and Compliance
-
RoHS
-
CE
-
UL
-
WEEE
-
UKCA
