Product Description

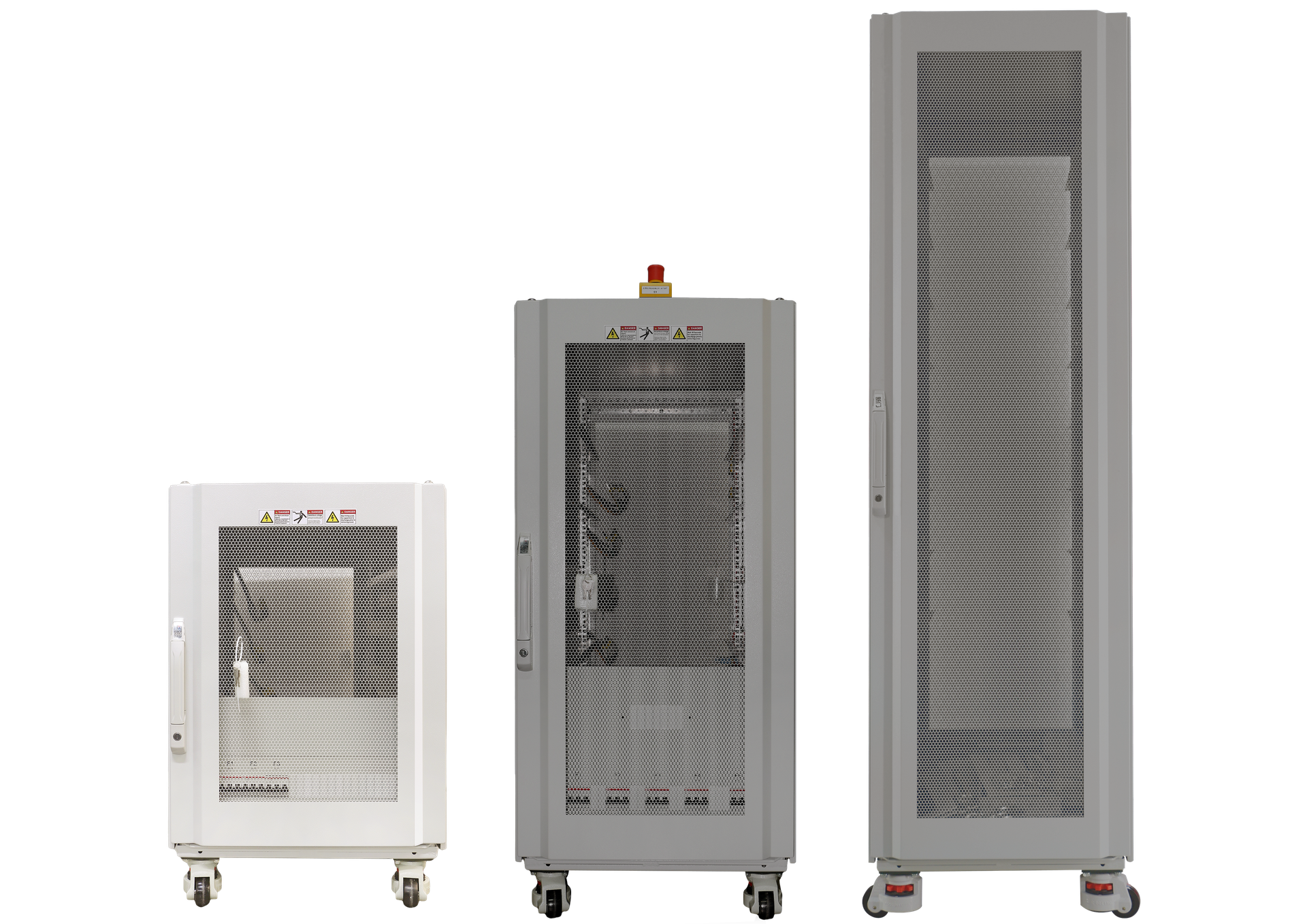

19 Inch Industrial Cabinet - 15U
The TPS 15U 19 inch Industrial Cabinet is engineered for robust performance in demanding environments. This free-standing 19" rack provides secure housing for servers, network devices, and electronic equipment, featuring modular construction and heavy-duty materials. Ideal as an industrial data cabinet or control enclosure, it offers flexibility with optional castors (4x GD-80) for mobility, and customized configurations are available to meet specific needs, including emergency stop, power supply, terminals, and output copper bars (contact for details). It comes in two chassis versions: the 3U version with 3 brackets per side (3x3U) and key components such as an E-strip switch (M32-PV), 2 Siemens Limit Switch door contacts, 2 FINDER 24V/AA relays, 3 ABB S 203M-K32 breakers, and 1 UK 35 BLUE wiring terminal block; the 4U version with 2 brackets per side (2x4U) and key components including 2 ABB S 203-K32 breakers and 1x3V/V AC input terminal. Both versions include a 4.0mm grounded copper plate, with the 3U version having a net weight of 110 kg and gross weight of 135 kg, and the 4U version weighing 125 kg net and 145 kg gross, all packaged in a wooden box. As a heavy-duty industrial rack, it is perfect for industrial network cabinets and data centers, with a free-standing design that supports static loads, while optional castors enhance portability; for detailed installation (e.g., TS007 lock rod fasteners with M6x12 screws), refer to the provided manual.
Key Features
- Durable Construction: Made from sheet steel with powder-coated surface (RAL 7035) for corrosion resistance, ensuring a rugged 19 inch rack that withstands industrial conditions.
- Secure Access: Single front and rear doors reinforced with square pipes, 150° hinges, and lock rods for a reliable 19 inch cabinet with door lock system. Door opening angle can be fixed using stoppers.
- Modular Design: Removable top and bottom panels, height-adjustable castors with Fuma brand bearings (optional), and lifting ring installation points for versatile use as an industrial cabinet with castors.
- Optimized Mounting: 482.6mm (19") width mounting space with front and rear positioning, 512.5mm frame spacing, and enterprise-standard design for easy integration of equipment.
- Inclusive Components: Ships with enclosure frame, doors, side plates, top/bottom plates, inner column, L-brackets, travel switch bracket, cable tray, mounting bar, grounding copper bar (4.0mm), hinges, lock rods, locks, fasteners, and optional electrical parts (e.g., emergency stop).
Specifications
| Parameter | Value |
|---|
