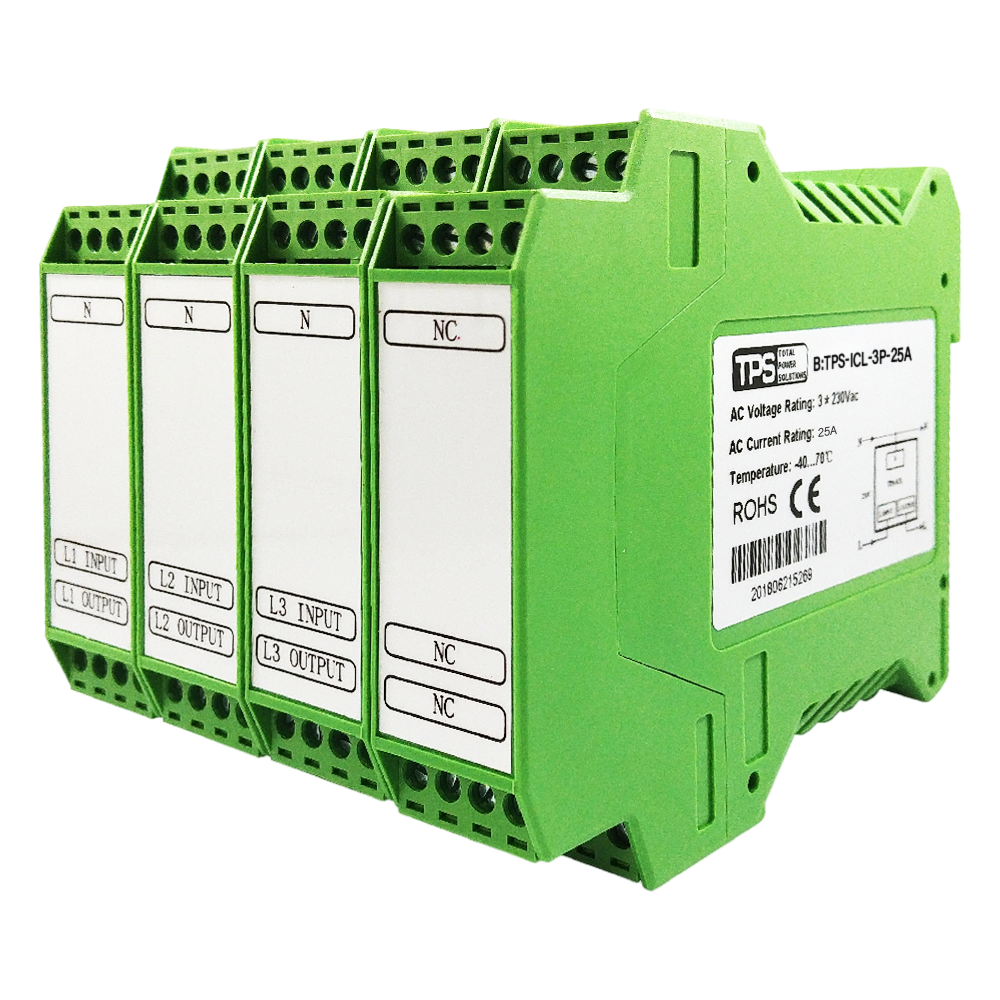

TPS-ICL-3P-25A current limiter

The TPS-ICL-3P-25A current limiter is a high-performance AC-Inrush Current Limiter under the TPS AC-Inrush Current Limiter series. As a 25A inrush current limiter (part of the 12A 16A 25A inrush current limiter range), it features a DIN-Rail AC-Inrush Current Limiter design, allowing easy mounting on DIN RAIL TS 35/7.5 or TS 35/15 vertical rails. Equipped with an Integrated Bypass Relais, it stands out as an Integrated Bypass Relais current limiter that outperforms simple NTC solutions.

This IP20 inrush current limiter operates with an input of 400 VAC and effectively limits peak current to 45A for 100-500ms, making it a reliable 45A peak current limiter. Certified with CE and RoHS, it meets the standards of a CE RoHS inrush current limiter. It is part of a series that includes models like the TPS-ESB-01-12A current limiter, with some variants suitable for 207-253 VAC inrush current limiter applications.

Ideal for Inductive capacitive loads current limiter setups and compatible with Isolating Transformers current limiter systems, it offers a long MTBF of 300,000 hours for stable performance. The case is made of Plastic Material UL V0 (UL compliant), ensuring durability. It uses screw terminals suitable for AWG24-16 wires, with convection cooling and an operating temperature range of 40°C-70°C.

Key Features

• Integrated Bypass Relais: Superior to simple NTC solutions, enhancing reliability and performance.
• Precise Peak Current Limiting: Controls peak current to 45A for 100-500ms, protecting connected equipment.
• DIN-Rail Mounting: Designed for easy installation on standard DIN RAIL TS 35/7.5 or TS 35/15 vertical rails.
• Versatile Applications: Suitable for inductive, capacitive loads, and isolating transformers.
• Certified Safety: Complies with CE and RoHS standards, ensuring safety and environmental friendliness.
• Durable Construction: UL V0 plastic case material for long-term use in industrial environments.
