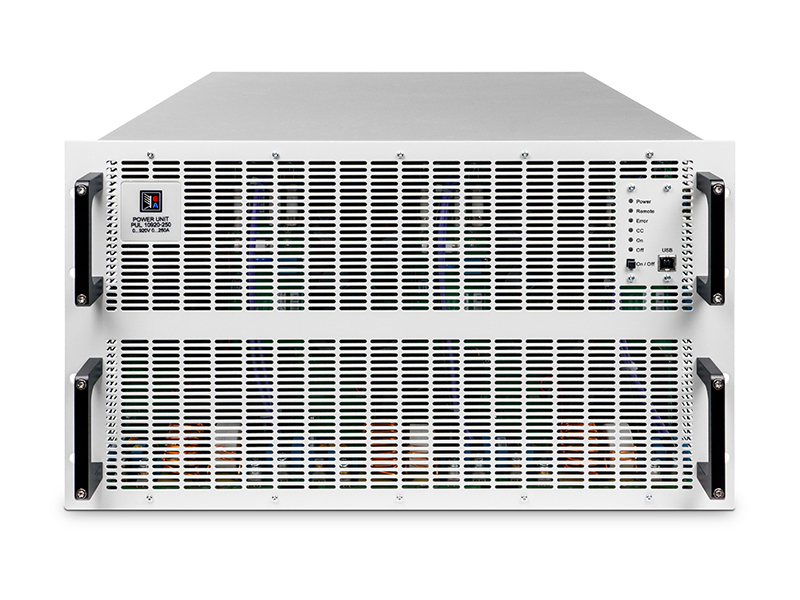

EA-PUL 11500-120 6U 60000W Programmable Electronic DC Load with Energy Recovery

The EA-PUL 11500-120 6U is a high-performance, regenerative, programmable electronic DC load unit from the EA-PUL 10000 series, designed for demanding laboratory and industrial testing applications. As a 60kW electronic load, it features advanced energy recovery technology that feeds up to 96.5% of the consumed DC power back into the AC grid with high efficiency, significantly reducing operating costs and heat generation. It operates as a precise programmable DC load and can also function as a bidirectional DC power source. The unit offers a wide DC input range of 0-1500V and 0-120A, with a constant power characteristic (autoranging) that provides maximum flexibility across a broad operating spectrum. It supports multiple regulation modes (CV, CC, CP, CR) with fast crossover, digital control with 16-bit ADCs/DACs, and adjustable voltage controller speed. Equipped with a galvanically isolated Master-Slave bus and Share-Bus, it enables seamless parallel operation of up to 64 units of mixed power classes (from 5kW) from the 10000 series to create systems up to 3840kW. Standard interfaces include USB, Ethernet, and an analog DB15 connector, with options for CAN, CANopen, Profibus, EtherCAT, Profinet, and Modbus. It is ideal for Battery Test Systems, Fuel Cell Test, On-Board Charger Test, Battery Recycling Test, and Module/Pack testing.

Key Features

• Regenerative & Efficient: Recovers energy back to the AC grid with up to 96.5% efficiency, reducing energy costs and cooling requirements.
• High Power & Wide Range: Delivers 60kW per unit with autoranging DC input (0-1500V, 0-120A), offering a constant power curve for versatile testing.
• Precise & Programmable: Features CV, CC, CP, CR regulation modes with fast crossover, 16-bit digital control, and high measurement accuracy (Voltage ≤0.05% FS, Current ≤0.1% FS).
• Scalable System: Master-Slave and Share-Bus allow parallel operation of up to 64 units (mixed power classes) acting as one system, scalable to 3840kW.
• Comprehensive Connectivity: Built-in USB, Ethernet, analog interfaces. Optional industrial interfaces (CAN, CANopen, Profibus, EtherCAT, Profinet, Modbus) for easy integration.
• Robust & Safe: Complies with EN/IEC/UL 61010-1 safety standards and EMC directives. Includes OVP, OCP, OPP, and OT protection. IP20 rating, forced air cooling (water cooling optional).
• Application-Optimized: Perfect for Battery Testing (cell/module/pack, SOH, EOL), Fuel Cell Test, On-Board Charger Test, and Battery Recycling processes.
