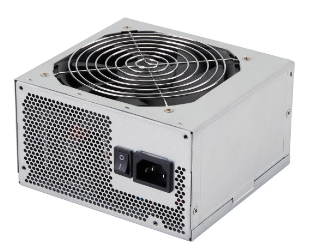

650 W ATX Power Supply – FSP650-50ABA

The FSP650-50ABA is a durable, high-performance 650 W ATX power supply, engineered for use in demanding environments such as PCs, workstations, and server systems. Supporting universal input (90–264 VAC) With an 80 PLUS Gold (~90 % efficiency), and active Power Factor Correction (PFC), this supply delivers reliable and efficient power. The product also offers protections against over-current (OCP), over-voltage (OVP), over-temperature (OTP), short-circuit protection, and resettable shutdown functionality. Cooling is done by a built-in 120 mm cooling fan. With its global Certifications, safety and EMC standards, it’s great for regulated applications.

Key Features

• Compact Form: 140 × 150 × 86 mm design, ideal for tight enclosures.
• Power & Efficiency: 650 W continuous output with 80 PLUS Gold efficiency and active PFC ensuring clean, stable power with reduced heat and energy cost.
• Effective Cooling: 120 mm fan ensures thermal stability and less noise.
• Full Electrical Protection: OCP, OVP, plus low output ripple and noise.
• Quality Assurance:100% Hi-Pot and burn-in testing with an MTBF rating of 100,000 hours at 25 °C ensure enduring performance.
• Universal Compatibility: Supports 90–264 VAC via C14 inlet.
• Multi-Rail Output:
  • +3.3 V at 20 A
  • +5 V at 20 A
  • +12 V at 54.17 A
  • –12 V at 0.3 A
  • +5 V at 3 A
  Combined +3.3 V and +5 V output limited to 100 W.
• Certifications & Compliance: CE, CB, TUV,UL, RCM, Gost-R, BSMI, CCC ROHS.
