Product Description

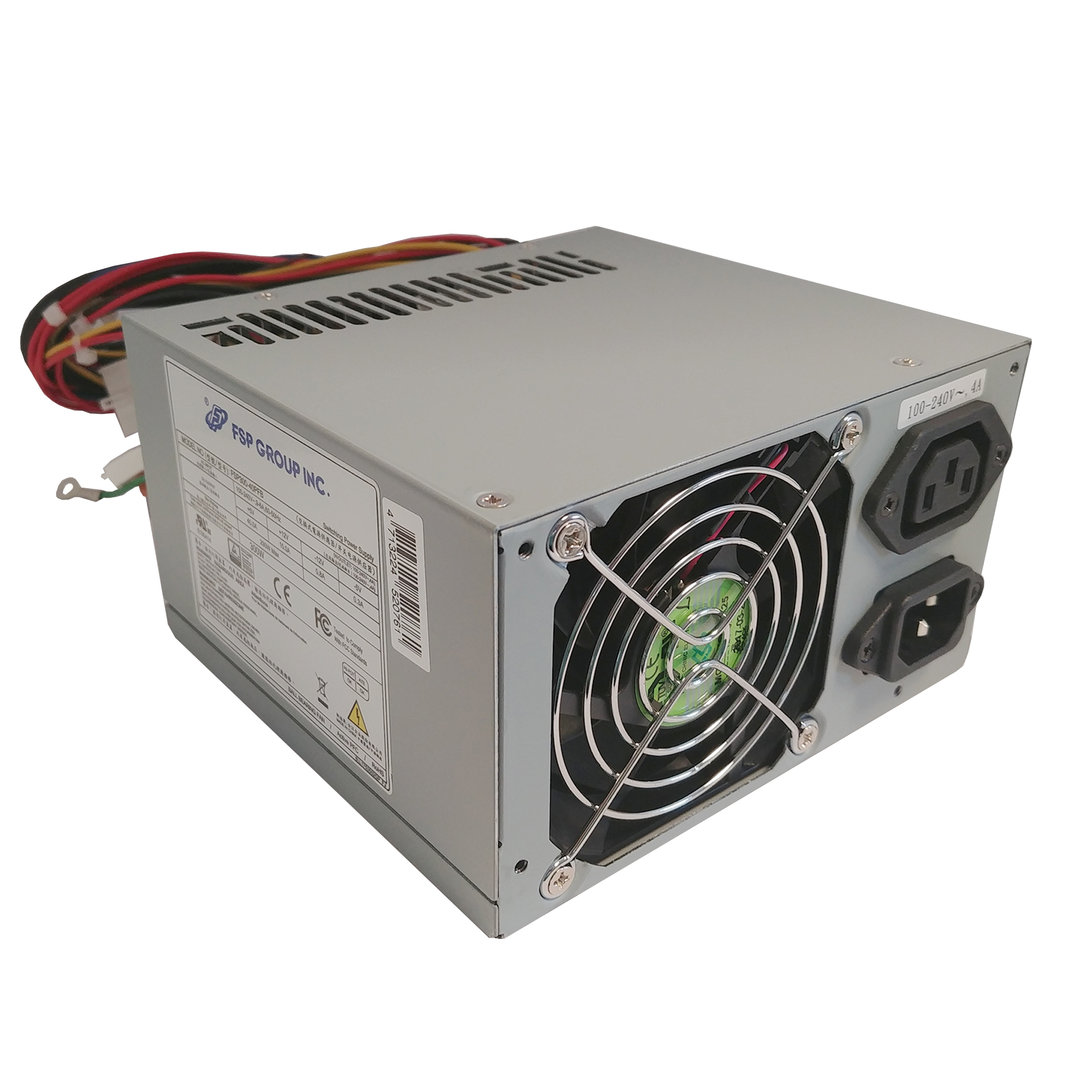

400 W ATX Industrial Power Supply – FSP400-70AGB
The FSP400-70AGB is a robust 400 W ATX (PS/2) industrial switching power supply engineered for desktop, workstation, and IPC applications. It supports universal AC input (90–264 VAC, 47–63 Hz) with active PFC and high efficiency for cool and stable operation. A temperature-controlled 80 mm fan provides reliable cooling, while low ripple/noise and tight regulation ensure dependable system performance.
Designed for longevity, the unit integrates a full protection suite (OCP/OVP/OTP/SCP) and undergoes burn-in/Hi-Pot testing. With standard multi-rail outputs and broad safety/EMC compliance, the FSP400-70AGB is a solid choice for replacements or new industrial builds.
Key Features
- Form Factor: ATX PS/2, approx. 150 × 140 × 86 mm; IEC C14 inlet.
- Power: 400 W continuous output with active PFC.
- Cooling: 80 mm temperature-controlled fan.
- Wide Input: 90–264 VAC, 47–63 Hz.
- Protections: OCP, OVP, OTP, SCP.
- Outputs: +3.3 V, +5 V, dual +12 V rails, −12 V, +5 VSB.
- Compliance: CE, UL/cUL, FCC, TÜV/CB, RoHS.
Specifications
| Parameter | Value |
|---|---|
| Cooling | Fan 80mm |
| Dimensions (L*W*H)(mm) | 140*150*86mm |
| Output Power | 400W |
| Size | PS2 ATX |
| Socket | C14 |
Technical data sheets
Legislation and Compliance
-
RoHS.pdf
-
CE
-
UL
-
WEEE
-
UKCA
