Product Description

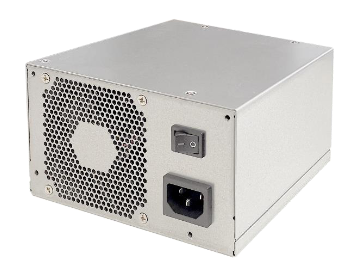

300 W ATX Power Supply – FSP300-50AMB
The FSP300-50AMB is a dependable 300 W ATX (PS/2) power supply for desktops, workstations, and industrial PCs. With universal AC input (90–264 VAC) and active PFC, it delivers stable, low-ripple power in a compact footprint. A quiet 80 mm fan maintains thermal stability for continuous operation.
Protective circuits (OCP/OVP/OTP/SCP) and production tests (burn-in/Hi-Pot) help ensure long service life. Ideal for replacement, service, and new IPC builds requiring a proven ATX solution.
Key Features
- ATX PS/2 Form Factor: About 150 × 140 × 86 mm; IEC C14 inlet.
- Power: 300 W continuous, active PFC.
- Cooling: Quiet 80 mm fan, temperature-controlled.
- Input: 90–264 VAC, 47–63 Hz.
- Protections: OCP, OVP, OTP, SCP.
- Outputs: +3.3 V, +5 V, +12 V, −12 V, +5 VSB.
- Compliance: CE, UL/cUL, FCC, RoHS.

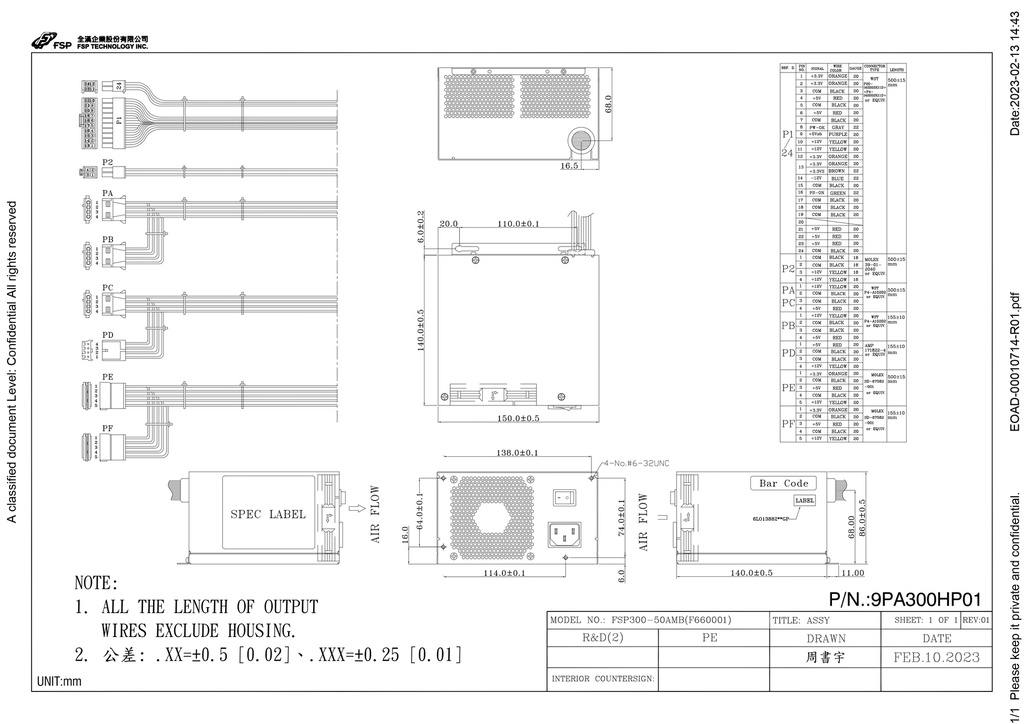

Specifications
| Parameter | Value |
|---|---|
| Dimensions (L*W*H)(mm) | 140*150*86mm |
| Output Power | 300W |
| Size | PS2 ATX |
| Socket | C14 |
Technical data sheets
Legislation and Compliance
-
RoHS.pdf
-
CE
-
UL
-
WEEE
-
UKCA
