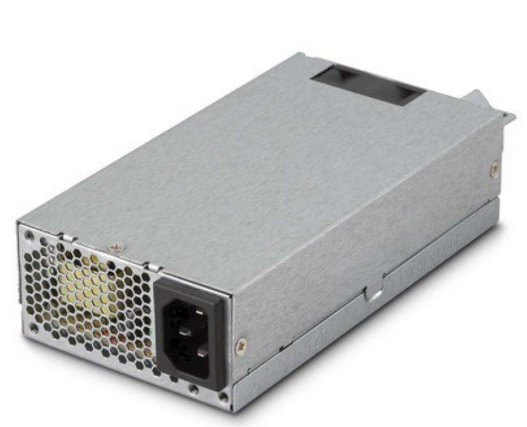

250 W Flex ATX (1U) Power Supply – FSP250-50FEB

The FSP250-50FEB is a durable, high-performance 250 W Flex ATX /1U industrial Level of power supply, engineered for use in demanding environments such as IPCs, network devices, embedded builds. Supporting universal input (90–264 VAC) With an 80 PLUS Bronze rating and active Power Factor Correction (PFC), this supply delivers reliable and efficient power. The product also offers protections against over-current (OCP), over-voltage (OVP), over-temperature (OTP), short-circuit, and resettable power shutdown. it includes as well an MTBF of 100,000 hours at 25 °C, a 100% Hi-Pot test and a burn-in at high ambient temperature. Cooling is done by a built-in 40 mm ball-bearing fan. With its global Certifications, safety and EMC standards, it’s great for regulated applications.

Key Features

• Compact Form: 150 × 81.5 × 40.5 mm; ideal for tight system enclosures.
• Power & Efficiency: 250 W continuous output with 80 PLUS Bronze efficiency and active PFC for reduced heat and energy cost.
• Effective Cooling: 40 mm ball-bearing fan with smart speed control for ultra-quiet operation.
• Full Electrical Protection: OVP, short-circuit protection on all outputs, and an active PFC.
• Quality Assurance: 100% Hi-Pot and burn-in with MTBF of 100,000 hours at 25 °C.
• Universal Compatibility: Supports 90–264 VAC via C14 inlet.
• Multiple Rails Output:
  • +3.3 V at 12 A
  • +5 V at 14 A
  • +12 V at 18 A
  • –12 V at 0.3 A
  • +5 VSB at 2.5 A
  total +3.3 V/+5 V combined ≤ 80 W.
• Certifications & Compliance: UL, CSA, TUV, Nemko, CE, CCC, CB. ROHS.
