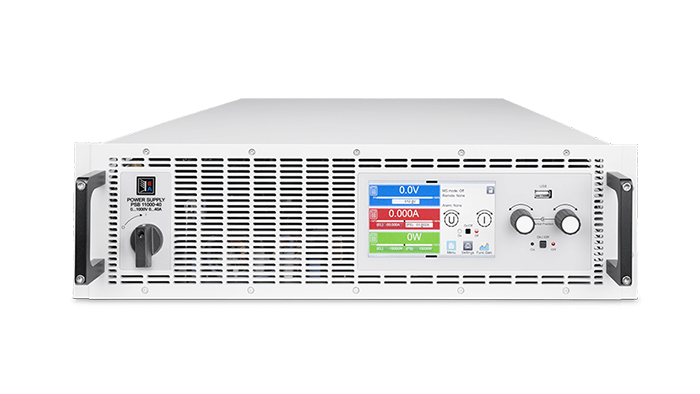

EA-ELR 10360-120 3U Programmable Electronic DC Load with Energy Recovery

The EA-ELR 10360-120 3U is a 15 kW regenerative electronic DC load from the high-performance ELR 10000 Series, engineered for rigorous testing of DC power sources, batteries, and power semiconductors in laboratory and industrial settings. This model operates over a wide voltage range of 0 to 360V and can sink currents up to 120A, with a maximum power handling of 15,000W (derated to 9,000W when operating on a 208V AC supply). Its defining characteristic is the advanced energy recovery system, which inverses up to 95.5% of the absorbed DC power and feeds it back into the AC grid with high efficiency, dramatically reducing energy costs and heat dissipation. The unit is controlled via a intuitive 5-inch color TFT touchscreen and features a comprehensive integrated function generator capable of producing sine, triangle, rectangle, trapezoid, and arbitrary waveforms, as well as specialized functions for battery testing and MPP (Maximum Power Point) tracking for solar panel characterization. For system integration and automation, it comes standard with USB, Ethernet, and a galvanically isolated analog interface, with an optional slot for adding digital bus modules like CAN, Profibus, or ModBus TCP. Supporting master-slave parallel operation for systems up to 960 kW, and equipped with robust protection features including OVP, OCP, OPP, and OT, the EA-ELR 10360-120 3U offers a powerful, efficient, and versatile solution for high-power testing applications.

Key Features

• High Voltage & Power Capability: Handles 0-360V, 0-120A, and 0-15,000W (0-9,000W derated) for testing a wide array of high-voltage DC sources and components.
• High-Efficiency Energy Recovery: Recuperates up to 95.5% of consumed DC power back to the AC grid, minimizing operational costs and thermal load.
• Advanced Programmable Functions: Integrated function generator creates complex current/voltage profiles, including arbitrary waveforms, battery test sequences, and DIN 40839 automotive simulation.
• Multiple Operating & Test Modes: Supports Constant Current (CC), Constant Voltage (CV), Constant Power (CP), Constant Resistance (CR) operation, plus MPP Tracking for photovoltaic testing.
• Scalable System Integration: Master-slave functionality allows parallel connection of up to 64 units to build systems with a total power of up to 960 kW.
• Comprehensive Communication Interfaces: Standard USB, Ethernet, and analog control, with an expandable slot for optional digital interface modules (CANopen, Profibus, Profinet, EtherCAT, etc.).
• Extensive Safety Protections: Built-in Overvoltage Protection (OVP), Overcurrent Protection (OCP), Overpower Protection (OPP), Overtemperature Protection (OT), and Power Fail (PF) protection ensure safe operation for both the load and the device under test.
• Industrial Rack-Mount Design: 3U height, 19-inch standard rack-mountable chassis for easy integration into test systems and cabinets.
