Product Description

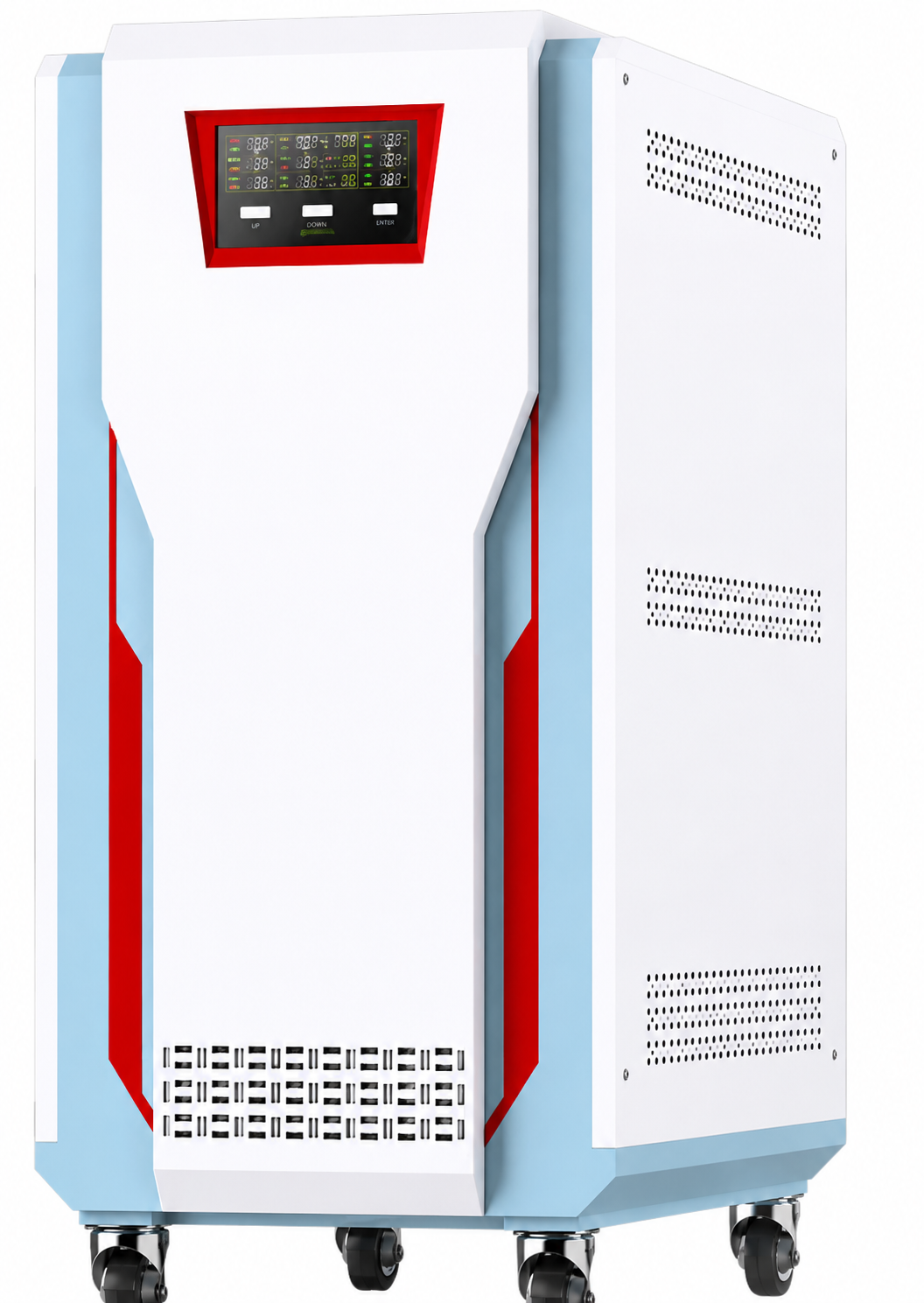

Industrial intelligent non-contact AC voltage stabilizer designed for stable 220V/380V output in regions with unstable power grids. SCR-based contactless voltage regulation with DSP control, fast response (<40 ms), up to 98% efficiency, adjustable ±1–5% precision, overload/overvoltage/undervoltage protection, and optional RS-232 interface. Suitable for industrial automation, CNC machines, laser systems, medical equipment, data centres, telecommunications, hotels, renewable energy systems and other critical applications.
Specifications
| Parameter | Value |
|---|---|
| Efficiency | ≥98% |
| Input Frequency(Hz) | 50Hz/60Hz |
| Interface | RS-232 interface (optional) |
| Input Voltage (3 Phase) | 323VAC~437VAC |
| Rated Output Voltage (3 Phase) | 380V |
| Precision | ±(1~5)%, Adjustable |
| Response Time | < 40ms |
| Waveform Distortion | No additional waveform distortion (static) |
| Anti-interference | Lightning arrester, EMI filter, LC filter (optional) |
| Over/Undervoltage Protection | output voltage exceeds 10%, cut off the output or turn the bypass continuously |
| LCD Display | Abnormal voltage and current |
| Warning | LED display and sound and light alarm |
Technical data sheets
Legislation and Compliance
-
CE
