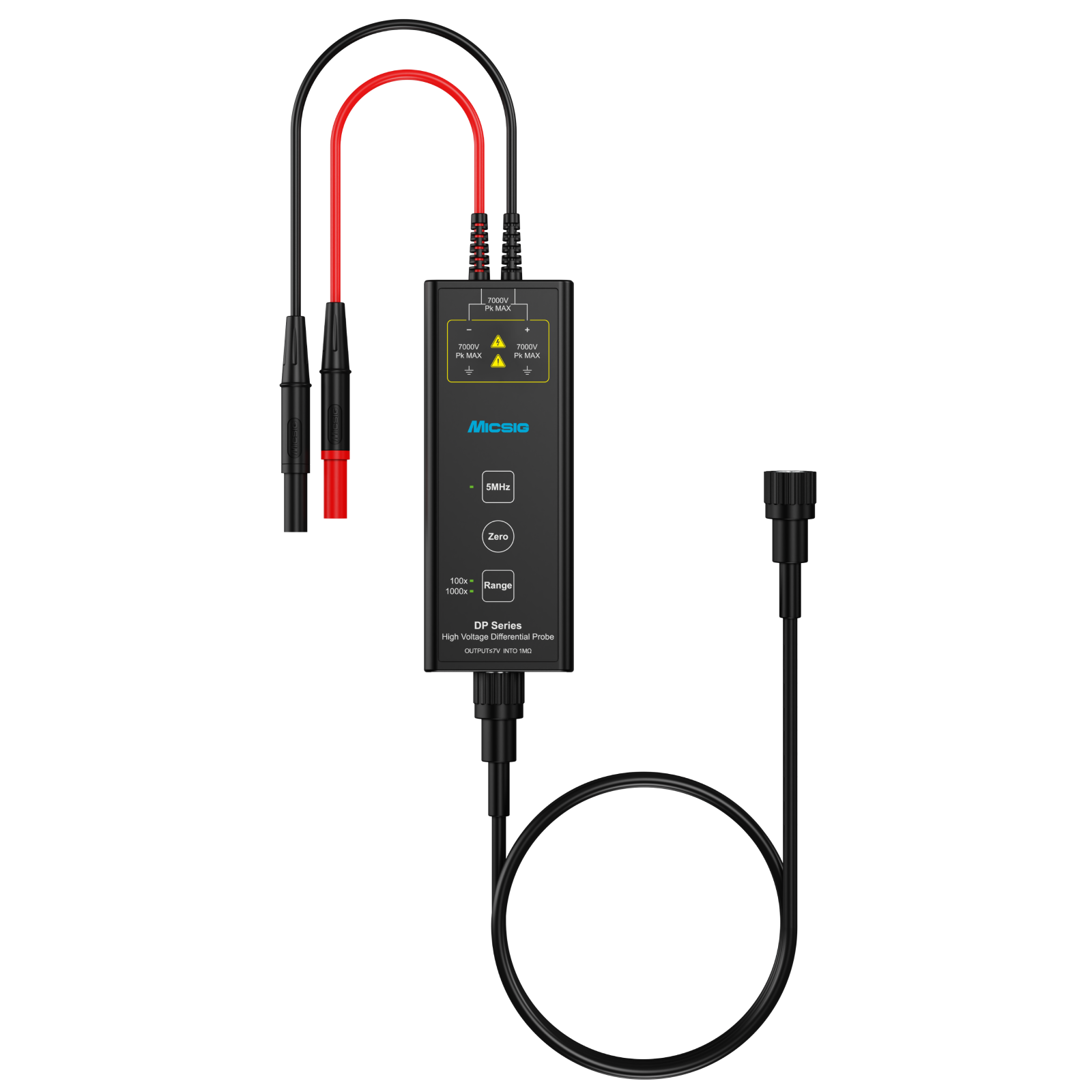

Micsig DP7002 High Voltage Differential Probe | 7000Vpk 200MHz Oscilloscope Probe
The Micsig DP7002 is a premium high‑voltage differential probe and precision oscilloscope probe. What is an oscilloscope? An oscilloscope (oscilloscopes / oscilliscope / osciliscope) is an essential electronic test instrument that captures, displays and analyzes electrical waveforms. The DP7002 is a volt clamp, oscilloscope probe, differential probe, hi voltage probe, DP7002, DP Series DP7002, 200MHz high voltage differential probe, 7000Vpk differential probe, 200MHz bandwidth probe, 7000V maximum input voltage probe, high‑frequency high‑voltage testing probe.
Key specs: DP7002 high voltage differential probe, 7000Vpk max voltage, 200MHz bandwidth, dual‑range, ±1% accuracy, ultra‑high CMRR. One‑touch zero calibration, 5MHz noise filter, dual power supply. Designed for new energy vehicles, photovoltaic inverters, high‑frequency power supplies and industrial high‑voltage testing.
Key Features
- DP7002 high voltage differential probe, DP Series DP7002
- 7000Vpk differential probe, 200MHz bandwidth probe
- 7000V max input voltage probe, oscilloscope probe
- Hi voltage probe, volt clamp, differential probe
- High‑frequency high‑voltage testing probe
- ±1% accuracy, dual‑range, high CMRR
Specifications
| Parameter | Value |
|---|---|
| Bandwidth | 200MHz |
| Max. Input Differential Voltage (DC+AC PK) | 700V(100X), 7000V(1000X) |
| Noise(Full bandwidth) | ≤ 200mVrms(100X), ≤ 600mVrms(1000X) |
| CMRR | ＞-26dB(100MHz), ＞-30dB(10MHz), ＞-60dB(100kHz), ＞-80dB(DC) |
| Delay Time | 12.5ns(100X), 12.5ns(1000X) |
| Input Impedance | 120MΩ/0.78pF(differential), 60MΩ/1.57pF(each input to ground) |
| Output Impedance | 1MΩ |
