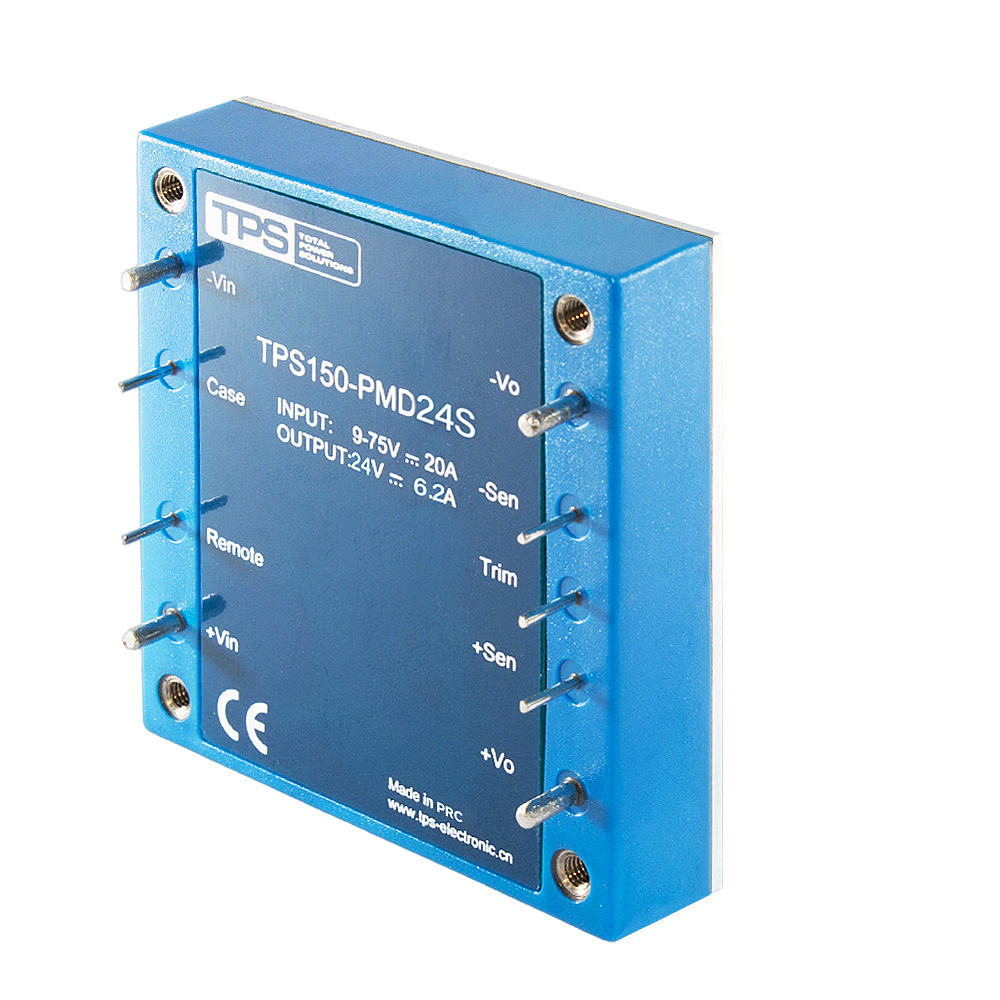

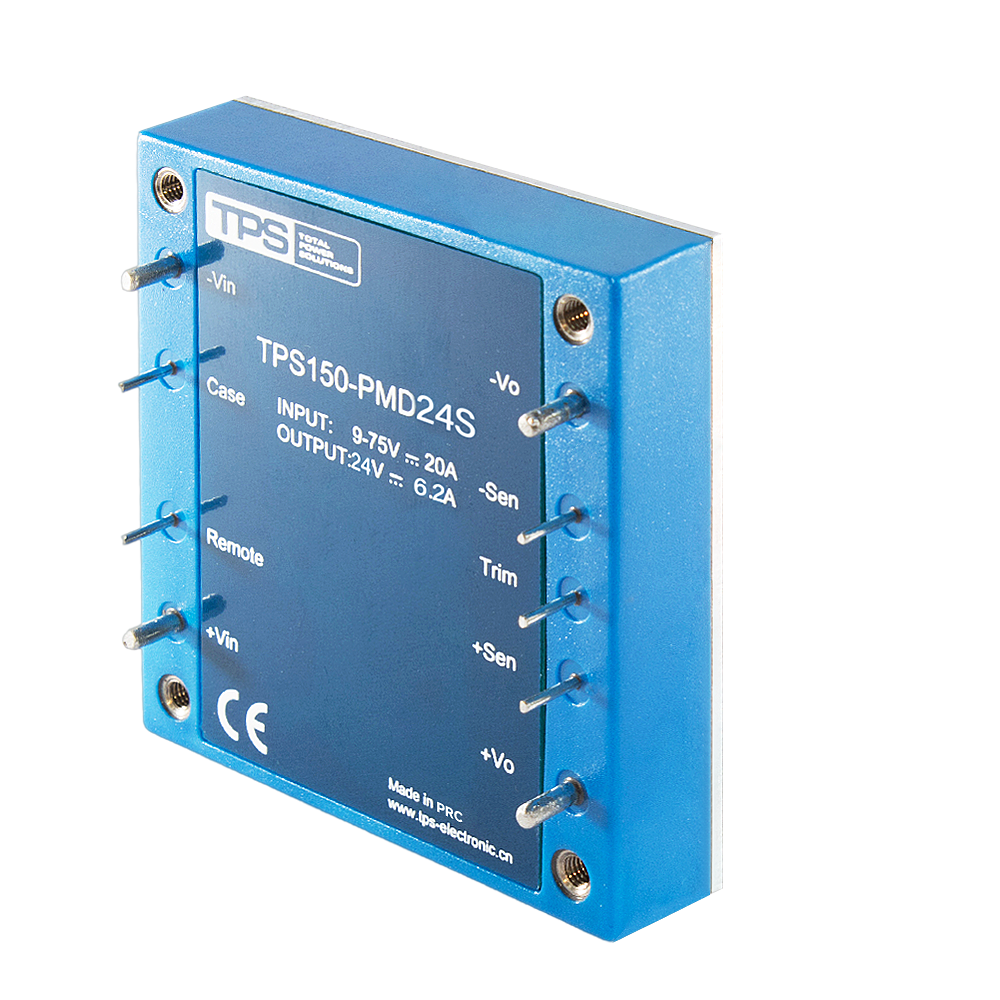

TPS150-PMD24S power module

The TPS150-PMD24S power module is a high-performance, high-power solution within the DC/DC TPS030-150W Print Module series, which is part of the 30W-150W isolated DC/DC module family. This module features a wide input voltage range of 9-75VDC, classifying it as a 9-75VDC input DC/DC module, ensuring compatibility with diverse power sources in industrial and telecom environments. It delivers a stable 24VDC output, making it a key member of the 12VDC 24VDC output module range, with an output current range of 0-6.2A to meet high-load requirements .

Designed in an Industry Standard 1/2-brick package (consistent with the series' coverage of 1/4 and 1/2-brick standards), the TPS150-PMD24S has dimensions of 6157.912.7mm, facilitating integration into systems requiring higher power. It achieves an impressive 89% efficiency, qualifying it as an 89% efficiency DC/DC module, ensuring optimal energy conversion. Equipped with Remote On/Off functionality, it is a Remote On/Off DC/DC module for convenient operation, and includes comprehensive protections such as Over temperature protection, input under voltage protection, and over voltage/current protection, ensuring stable and safe performance in harsh conditions .

With an isolation voltage of 1500VDC, the TPS150-PMD24S qualifies as a 1500VDC isolation module, enhancing safety in critical applications. As a CE RoHS DC/DC print module, it complies with international standards, making it ideal for Industrial automation (serving as an Industrial automation DC/DC module) and Telecom communication (functioning as a Telecom communication power module). It is part of a versatile product range that includes models like the TPS030-PMD12S DC/DC module, TPS075-PMD24S print module, and TPS150-PMD12S power module, catering to various power needs .

Key Features

• High Efficiency: Achieves 89% efficiency, qualifying as an 89% efficiency DC/DC module for energy-saving operation .
• Wide Input Compatibility: Operates on 9-75VDC input, fitting the 9-75VDC input DC/DC module category for versatile applications .
• Stable 24VDC Output: Delivers 24VDC output with 0-6.2A current, part of the 12VDC 24VDC output module range to meet high-load demands .
• Standard Package: Adopts an industry-standard 1/2-brick design (within the series covering Industry Standard 1/4 brick module and 1/2-brick) with dimensions 6157.912.7mm for easy system integration .
• Remote Control: Equipped with Remote On/Off functionality, qualifying as a Remote On/Off DC/DC module for flexible operation .
• Comprehensive Protection: Includes Over temperature protection, input under voltage protection, and over voltage/current protection for enhanced safety .
• High Isolation: Provides 1500VDC isolation, making it a 1500VDC isolation module for secure operation .
• Certified Compliance: A CE RoHS DC/DC print module meeting international standards .
• Versatile Applications: Ideal as an Industrial automation DC/DC module and Telecom communication power module .
