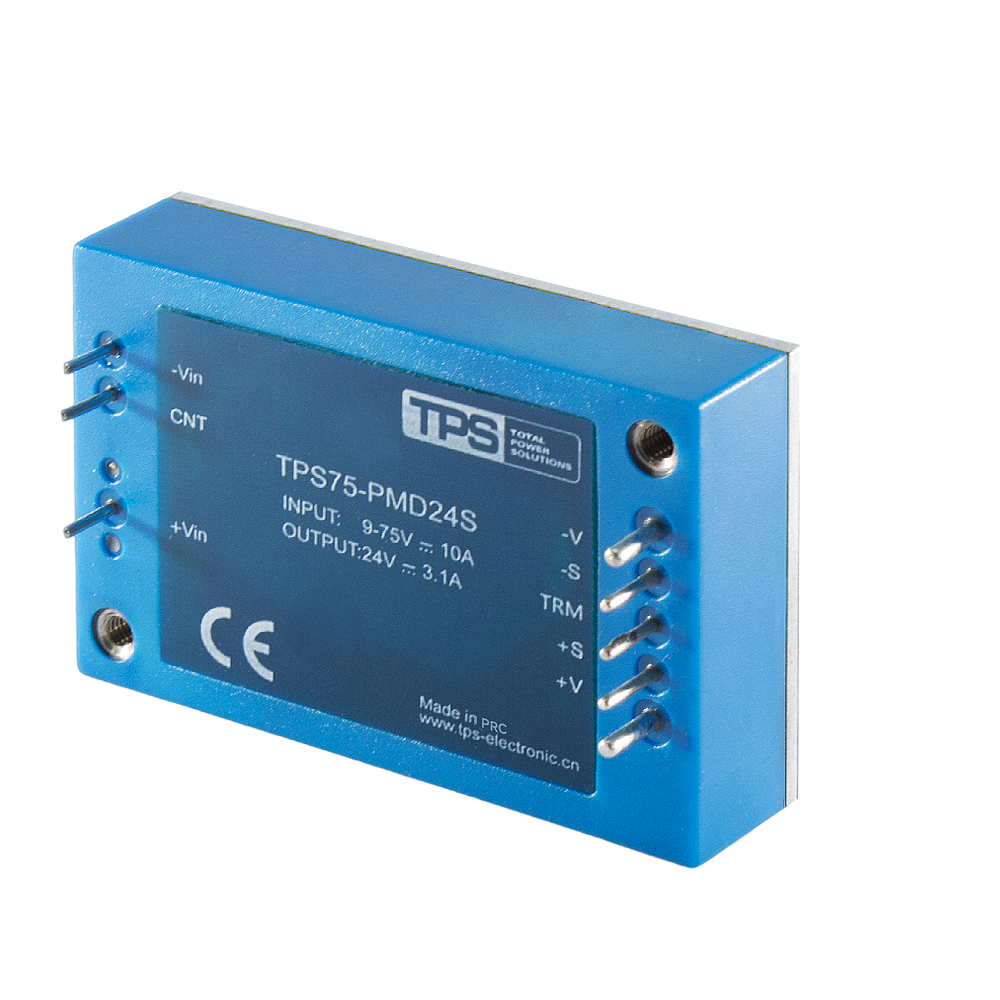

TPS075-PMD24S print module

The TPS075-PMD24S print module is a high-performance power solution within the DC/DC TPS030-150W Print Module series, which is part of the 30W-150W isolated DC/DC module family. This module features a wide input voltage range of 9-75VDC, classifying it as a 9-75VDC input DC/DC module, enabling seamless adaptation to various power sources in industrial and telecom environments. It delivers a stable 24VDC output, making it a key member of the 12VDC 24VDC output module range, with an output current range of 0-3.1A to meet medium to high load requirements.

Designed in an Industry Standard 1/4 brick module package, the TPS075-PMD24S boasts compact dimensions of 37.257.912.7mm, ensuring easy integration into existing systems. It achieves an impressive 89% efficiency, qualifying it as an 89% efficiency DC/DC module, ensuring optimal energy conversion and reduced power loss. Equipped with Remote On/Off functionality, it is classified as a Remote On/Off DC/DC module, allowing for convenient operation and control. Additionally, it incorporates comprehensive protection features including Over temperature protection, input under voltage protection, and over voltage/current protection, ensuring safe and stable performance even in harsh conditions.

With an isolation voltage of 1500VDC, the TPS075-PMD24S qualifies as a 1500VDC isolation module, enhancing safety in critical applications. As a CE RoHS DC/DC print module, it complies with international standards, making it suitable for Industrial automation (serving as an Industrial automation DC/DC module) and Telecom communication (functioning as a Telecom communication power module). It is part of a versatile product range that includes models like the TPS030-PMD12S DC/DC module and TPS150-PMD12S power module, catering to diverse application needs.

Key Features

• High Efficiency: Achieves 89% efficiency, qualifying as an 89% efficiency DC/DC module for energy-saving operation.
• Wide Input Compatibility: Operates on 9-75VDC input, fitting the 9-75VDC input DC/DC module category for versatile use.
• Stable 24VDC Output: Delivers 24VDC output with 0-3.1A current, part of the 12VDC 24VDC output module range.
• Standard Package: Adopts Industry Standard 1/4 brick module design with dimensions 37.257.912.7mm for easy integration.
• Remote Control: Equipped with Remote On/Off functionality, qualifying as a Remote On/Off DC/DC module for flexible operation.
• Comprehensive Protection: Includes Over temperature protection, input under voltage protection, and over voltage/current protection for enhanced safety.
• High Isolation: Provides 1500VDC isolation, making it a 1500VDC isolation module for secure operation.
• Certified Compliance: A CE RoHS DC/DC print module meeting international standards.
• Versatile Applications: Ideal as an Industrial automation DC/DC module and Telecom communication power module.
