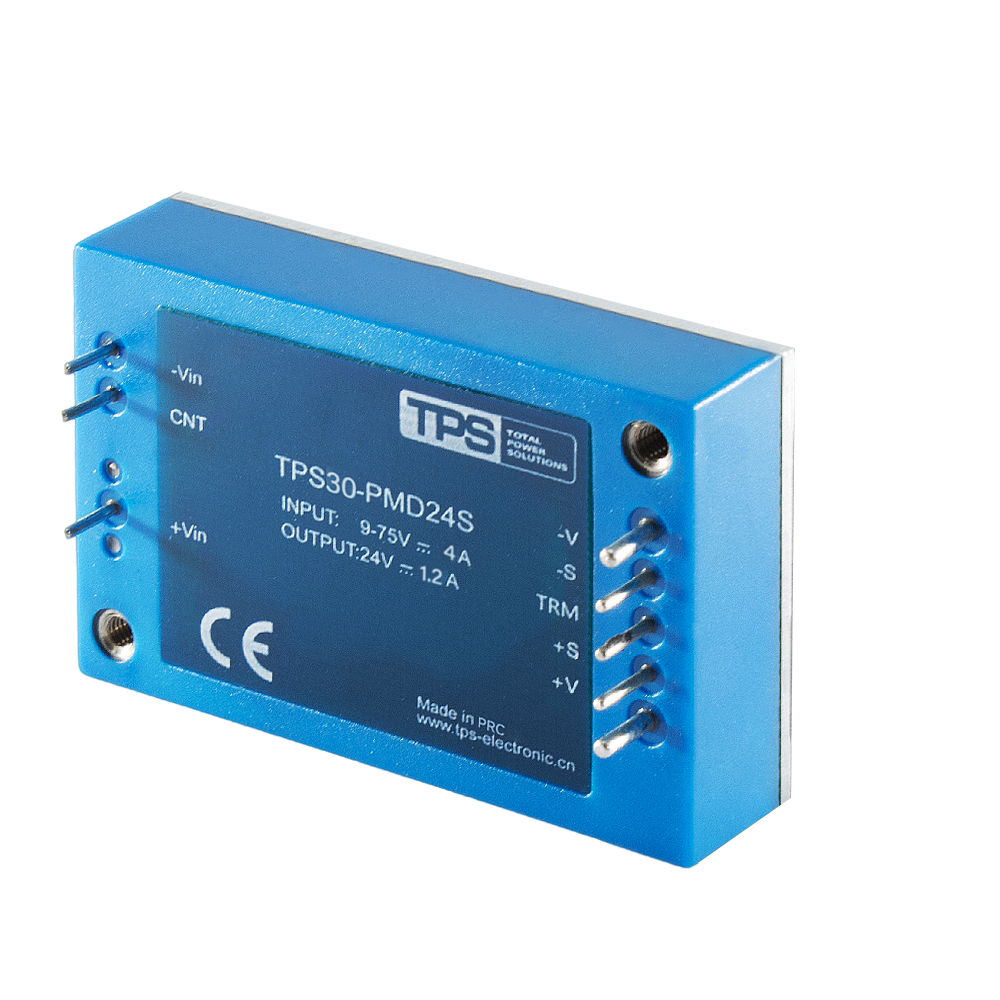

TPS030-PMD24S DC/DC module

The TPS030-PMD24S DC/DC module is a reliable power solution under the DC/DC TPS030-150W Print Module series, which is part of the 30W-150W isolated DC/DC module family. This module features a wide 9-75VDC input, classifying it as a 9-75VDC input DC/DC module, allowing it to adapt to various power sources in industrial and telecom environments. It delivers a stable 24VDC output, making it a key member of the 12VDC 24VDC output module range, with an output current range of 0-1.2A to meet moderate load requirements .

Designed in an Industry Standard 1/4 brick module package, the TPS030-PMD24S ensures easy integration into existing systems, with compact dimensions of 37.257.912.7mm . It is equipped with essential features such as Remote On/Off (qualifying as a Remote On/Off DC/DC module) for convenient operation, and comprehensive protections including Over temperature protection, input under voltage protection, and over voltage/current protection, ensuring safe and stable performance in harsh conditions .

With an isolation voltage of 1500VDC, it is a 1500VDC isolation module, enhancing safety in critical applications . As a CE RoHS DC/DC print module, it complies with international standards, making it suitable for Industrial automation (as an Industrial automation DC/DC module) and Telecom communication (serving as a Telecom communication power module). While the series includes high-efficiency models like the TPS075-PMD24S print module and TPS150-PMD12S power module with up to 89% efficiency (classed as 89% efficiency DC/DC module), the TPS030-PMD24S offers a reliable 85% efficiency for consistent energy conversion .

Key Features

• Wide Input Compatibility: Operates on 9-75VDC input, fitting the 9-75VDC input DC/DC module category for versatile use .
• Stable 24VDC Output: Delivers 24VDC output with 0-1.2A current, part of the 12VDC 24VDC output module range .
• Standard Package: Adopts Industry Standard 1/4 brick module design with dimensions 37.257.912.7mm for easy system integration .
• Remote Control: Equipped with Remote On/Off functionality, qualifying as a Remote On/Off DC/DC module for flexible operation .
• Comprehensive Protection: Includes Over temperature protection, input under voltage protection, and over voltage/current protection for enhanced safety .
• High Isolation: Provides 1500VDC isolation, making it a 1500VDC isolation module for secure operation .
• Certified Compliance: A CE RoHS DC/DC print module meeting international standards .
• Versatile Applications: Ideal as an Industrial automation DC/DC module and Telecom communication power module .
