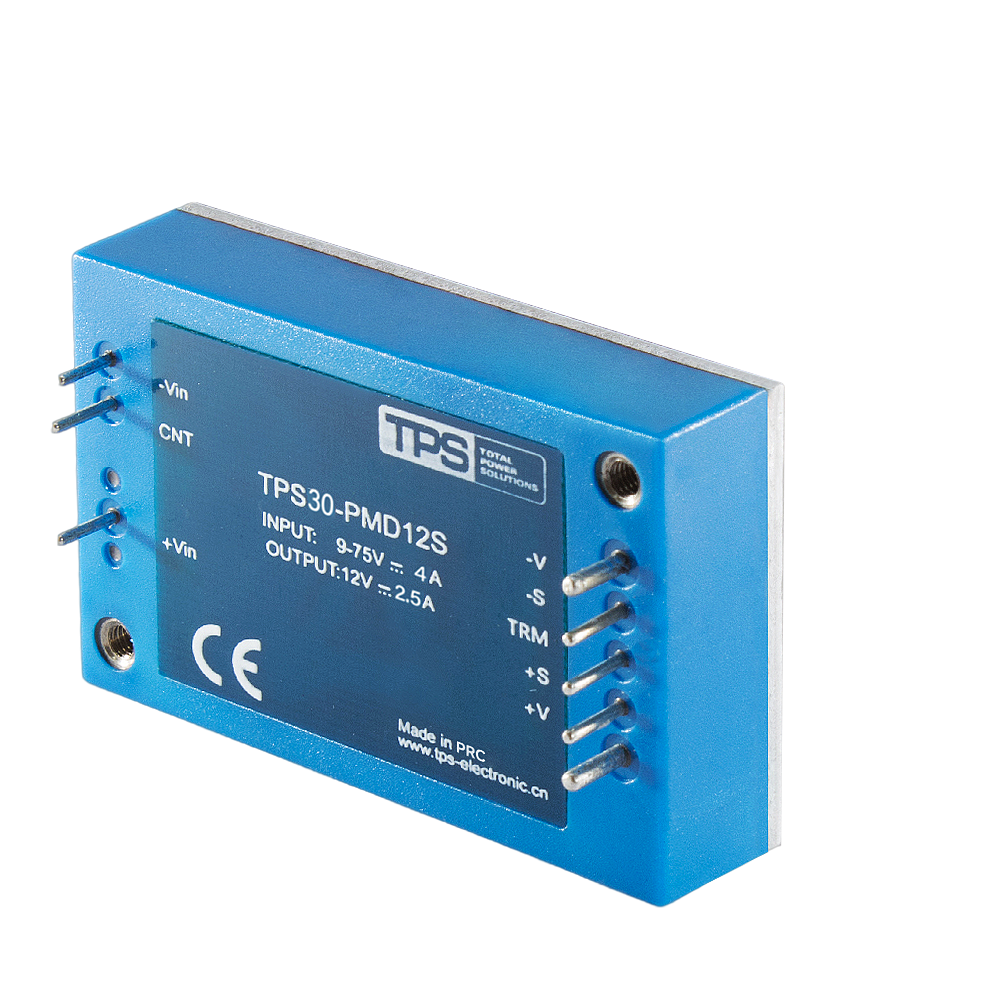

TPS030-PMD12S DC/DC module

The TPS030-PMD12S DC/DC module is a high-reliability power solution belonging to the DC/DC TPS030-150W Print Module series, which is part of the broader 30W-150W isolated DC/DC module family. This module features a wide 9-75VDC input (classified as a 9-75VDC input DC/DC module), making it adaptable to various power sources in diverse environments. It delivers a stable 12VDC output, positioning it as a key member of the 12VDC 24VDC output module range, with an output current range of 0-2.5A to meet different load demands .

Designed with an Industry Standard 1/4 brick module package, the TPS030-PMD12S ensures easy integration into existing systems, boasting compact dimensions of 37.257.912.7mm . It comes equipped with essential features such as Remote On/Off (a Remote On/Off DC/DC module), providing convenient operation, and comprehensive protections including Over temperature protection, input under voltage protection, and over voltage/current protection, ensuring safe and stable performance in harsh conditions .

With an isolation voltage of 1500VDC, it qualifies as a 1500VDC isolation module, enhancing safety in critical applications . As a CE RoHS DC/DC print module, it complies with international standards, making it suitable for Industrial automation and Telecom communication (serving as an Industrial automation DC/DC module and Telecom communication power module). While the series includes models with up to 89% efficiency (such as TPS075-PMD24S print module and TPS150-PMD12S power module), the TPS030-PMD12S offers reliable 85% efficiency, ensuring energy-efficient operation .

Key Features

• Wide Input Range: Operates on 9-75VDC input, fitting the 9-75VDC input DC/DC module category for versatile application .
• Stable Output: Delivers 12VDC output with 0-2.5A current, part of the 12VDC 24VDC output module range .
• Standard Package: Adopts Industry Standard 1/4 brick module design with dimensions 37.257.912.7mm for easy integration .
• Remote Control: Equipped with Remote On/Off functionality, qualifying as a Remote On/Off DC/DC module for convenient operation .
• Comprehensive Protection: Includes Over temperature protection, input under voltage protection, and over voltage/current protection for enhanced safety .
• High Isolation: Provides 1500VDC isolation, making it a 1500VDC isolation module for secure operation .
• Certified Compliance: A CE RoHS DC/DC print module meeting international standards .
• Versatile Applications: Ideal as an Industrial automation DC/DC module and Telecom communication power module .
