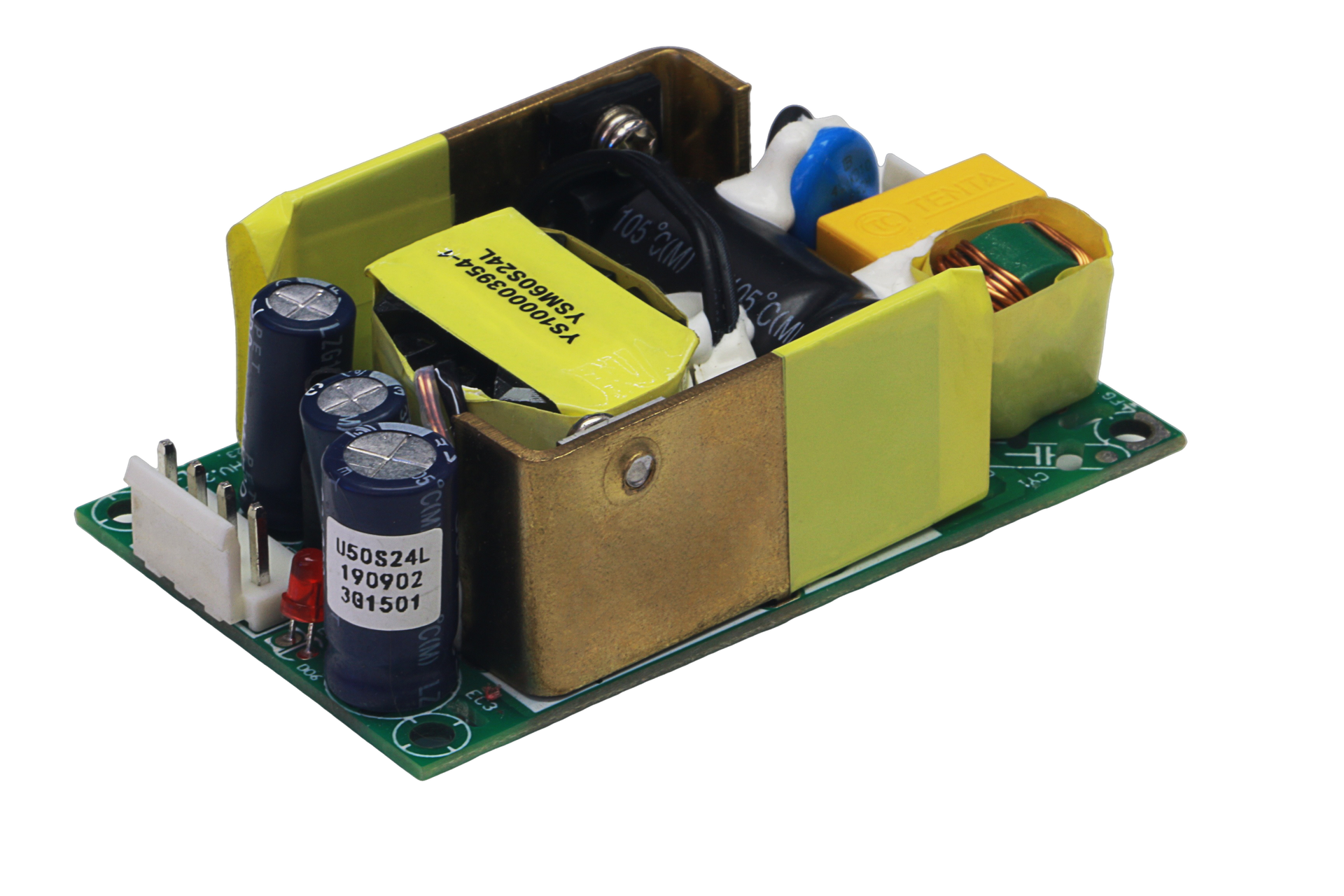

TPS-YSU50SL-5V Single Output Open Frame Power Supply

The TPS-YSU50SL-5V is a high-performance member of the TPS-YSU50SL Series single output open frame power supply, designed to deliver reliable power solutions for various applications. As a 5V/12V/24V single output power supply, it specifically provides a stable 5V output with a current range of 0-8A, ensuring consistent performance under different load conditions. This 33W/54W/55W open frame power supply offers 33W rated power and achieves an efficiency of 79%, making it a low power compact size high efficiency power supply with dimensions of 76×46×25mm and a lightweight design of about 120g, ideal for space-constrained environments.

Equipped with a wide input voltage range power supply, it supports 100~240VAC input voltage and 47-63Hz input frequency, adapting to various power grids globally. It features comprehensive protection mechanisms, including overload and short-circuit protection, with short circuit protection operating in hiccup mode and automatically recovering after fault removal, making it an overload short-circuit protection power supply. For stable operation, it requires forced convection cooling with a fan at nominal rated power, classifying it as a forced convection cooling power supply.

This CE certified open frame power supply complies with EN61000-3-2-3/EN 61000-4-4/EN55022 CLASSB standards, meeting strict safety and EMC requirements as an EN61000 compliant power supply. It undergoes a full load burn-in test to ensure reliability, qualifying it as a full load burn-in test power supply. The operating temperature ranges from -25~+50°C@100% Load and +60°C@60% Load, making it a -25~+50°C operating power supply suitable for diverse environmental conditions.

Key Features

• Series Membership: Part of the TPS-YSU50SL Series single output open frame power supply, ensuring consistent design and quality across the range.
• Wide Input Compatibility: Functions as a wide input voltage range power supply with 100~240VAC input, suitable for global use.
• Comprehensive Protection: Acts as an overload short-circuit protection power supply, with overload, short-circuit, overvoltage, and overtemperature protection for enhanced safety.
• Efficient and Compact: A low power compact size high efficiency power supply with 79% efficiency, 76×46×25mm dimensions, and 120g weight, saving space and energy.
• Certifications and Compliance: CE certified open frame power supply and EN61000 compliant power supply, meeting international safety and EMC standards.
• Reliability Testing: Undergoes full load burn-in test, qualifying as a full load burn-in test power supply for guaranteed performance.
• Output Specifications: A 5V/12V/24V single output power supply with 5V output, 0-8A current range, and 33W rated power (part of 33W/54W/55W open frame power supply options).
• Environmental Adaptability: Operates as a -25~+50°C operating power supply, suitable for harsh environments.
• Cooling Requirement: Requires forced convection cooling, functioning as a forced convection cooling power supply for stable operation at rated power.
