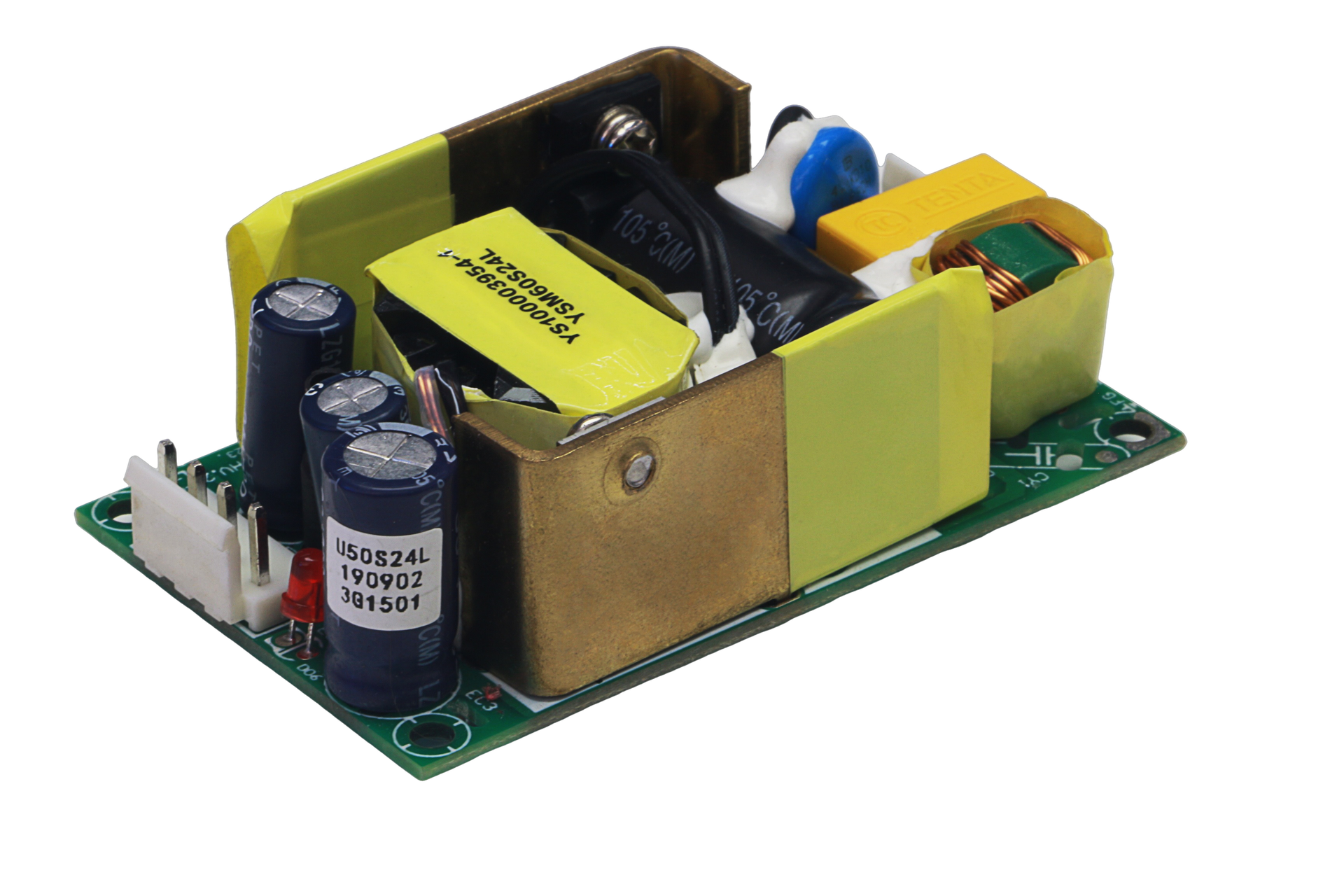

TPS-YSU50SL-12V Single Output Open Frame Power Supply

The TPS-YSU50SL-12V is a high-performance member of the TPS-YSU50SL Series single output open frame power supply, designed to deliver stable and efficient power for various applications. As a 5V/12V/24V single output power supply, it provides a reliable 12V output with a rated current of 4.5A and a current range of 0-4.5A, ensuring consistent performance under different load conditions. This 33W/54W/55W open frame power supply offers a rated power of 54W and achieves an efficiency of 84.0%, making it a low power compact size high efficiency power supply with dimensions of 76×46×25mm and a lightweight design of about 120g, ideal for space-constrained setups.

As a wide input voltage range power supply, it supports 100~240VAC input voltage and 47-63Hz input frequency, enabling seamless operation in global power grids. It is an overload short-circuit protection power supply, featuring comprehensive protections including overload (135-170% of rated power with automatic recovery), short circuit (hiccup mode with automatic recovery after fault removal), overvoltage, and overtemperature protection, ensuring safe and reliable operation. To maintain performance at nominal rated power, it requires forced convection cooling with a fan, classifying it as a forced convection cooling power supply.

This CE certified open frame power supply complies with EN61000-3-2-3/EN 61000-4-4/EN55022 CLASSB standards, qualifying it as an EN61000 compliant power supply. It undergoes a full load burn-in test, making it a full load burn-in test power supply to guarantee long-term reliability. With an operating temperature range of -25~+50°C@100% Load and +60°C@60% Load, it stands as a -25~+50°C operating power supply, adaptable to diverse environmental conditions.

Key Features

• Series Membership: Part of the TPS-YSU50SL Series single output open frame power supply, ensuring consistent quality and design across the series.
• Global Input Compatibility: Functions as a wide input voltage range power supply with 100~240VAC input, suitable for international use.
• Comprehensive Safety Protections: Serves as an overload short-circuit protection power supply, integrating overload, short-circuit, overvoltage, and overtemperature protection for enhanced safety.
• Efficient and Compact Design: A low power compact size high efficiency power supply with 84.0% efficiency, 76×46×25mm dimensions, and 120g weight, saving space and energy.
• Certified Reliability: A CE certified open frame power supply and EN61000 compliant power supply, meeting strict international safety and EMC standards.
• Rigorous Testing: Undergoes full load burn-in test, qualifying as a full load burn-in test power supply for proven performance.
• Precise Output: A 5V/12V/24V single output power supply with 12V output, 0-4.5A current range, and 54W rated power (part of 33W/54W/55W open frame power supply options).
• Environmental Resilience: Operates as a -25~+50°C operating power supply, suitable for challenging environments.
• Cooling Requirement: Relies on forced convection cooling, acting as a forced convection cooling power supply for stable operation at rated power.
