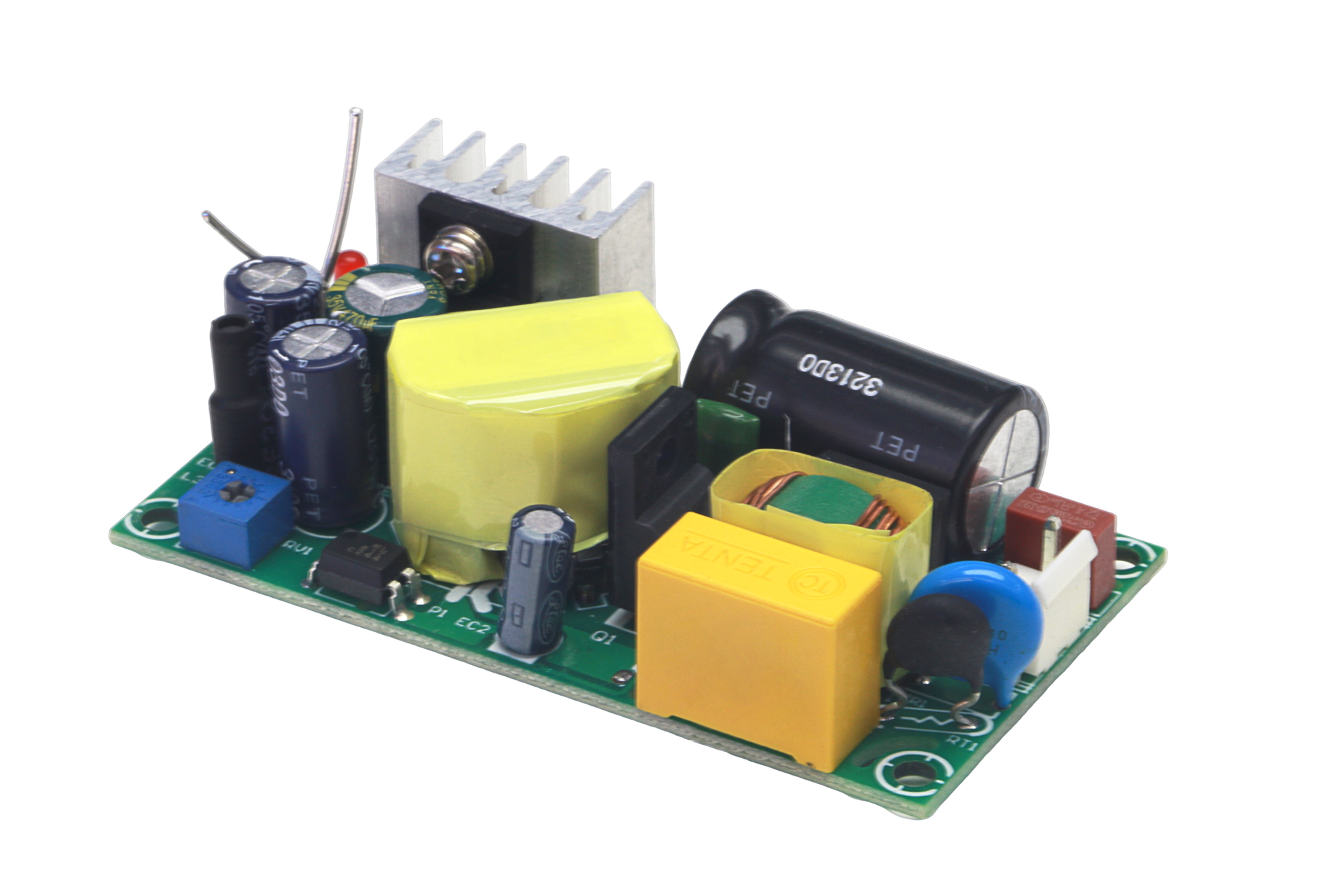

TPS-YSU36SL-24V Single Output Open Frame Power Supply
The TPS-YSU36SL-24V is a high-performance member of the TPS-YSU36SL Series single output open frame power supply, designed to deliver stable and efficient power for diverse applications. As a 5V/12V/24V single output power supply, it provides a reliable 24V output with a rated current of 1.5A and a current range of 0-1.5A, ensuring consistent performance under varying load conditions. This 25W/36W open frame power supply offers a rated power of 36W and an impressive efficiency of 87.0%, making it a low power compact size high efficiency power supply with dimensions of 76×42×25mm and a lightweight design of about 45g, ideal for space-constrained setups .
As a wide input voltage range power supply, it supports 100~240VAC input voltage and 47-63Hz input frequency, enabling seamless operation in global power grids. It is an overload short-circuit protection power supply, featuring comprehensive protections including overload (135-170% of rated power with automatic recovery), short circuit (hiccup mode with automatic recovery after fault removal), and overvoltage protection, ensuring safe and reliable operation. With an operating temperature range of -25~+50°C@100% Load and +60°C@60% Load, it stands as a -25~+50°C operating power supply, adaptable to harsh environmental conditions .
This CE certified open frame power supply complies with EN61000-3-2-3/EN 61000-4-4/EN55022 CLASSB standards, qualifying it as an EN61000 EN55022 CLASSB compliant power supply. It undergoes a full load burn-in test, making it a full load burn-in test power supply to guarantee long-term reliability, ensuring consistent performance in industrial and commercial applications .
Key Features
- Series Affiliation: Part of the TPS-YSU36SL Series single output open frame power supply, ensuring uniform quality and design across the series .
- Global Input Compatibility: Functions as a wide input voltage range power supply with 100~240VAC input, suitable for international use .
- Comprehensive Protections: Serves as an overload short-circuit protection power supply, integrating overload, short-circuit, and overvoltage protection for enhanced safety .
- Efficient and Compact: A low power compact size high efficiency power supply with 87.0% efficiency, 76×42×25mm dimensions, and 45g weight, saving space and energy .
- Certified Compliance: A CE certified open frame power supply and EN61000 EN55022 CLASSB compliant power supply, meeting strict international standards .
- Rigorous Testing: Undergoes full load burn-in test, qualifying as a full load burn-in test power supply for proven reliability .
- Precise Output: A 5V/12V/24V single output power supply with 24V output, 0-1.5A current range, and 36W rated power (part of 25W/36W open frame power supply options) .
- Environmental Resilience: Operates as a -25~+50°C operating power supply, suitable for challenging environments .
- Compact Design: Features 76×42×25mm open frame power supply dimensions and 45g open frame power supply weight, ideal for space-limited installations .
Specifications
Parameter | Value |
---|---|
Dimensions (L*W*H)(mm) | 76*42*25mm |
Efficiency | 87% |
Input Current | <0.5A |
Input Voltage | 100-240Vac |
Output Current | 1.5A |
Output Power | 36W |
Output Voltage | 24V |
Weight | Approx. 45g |
