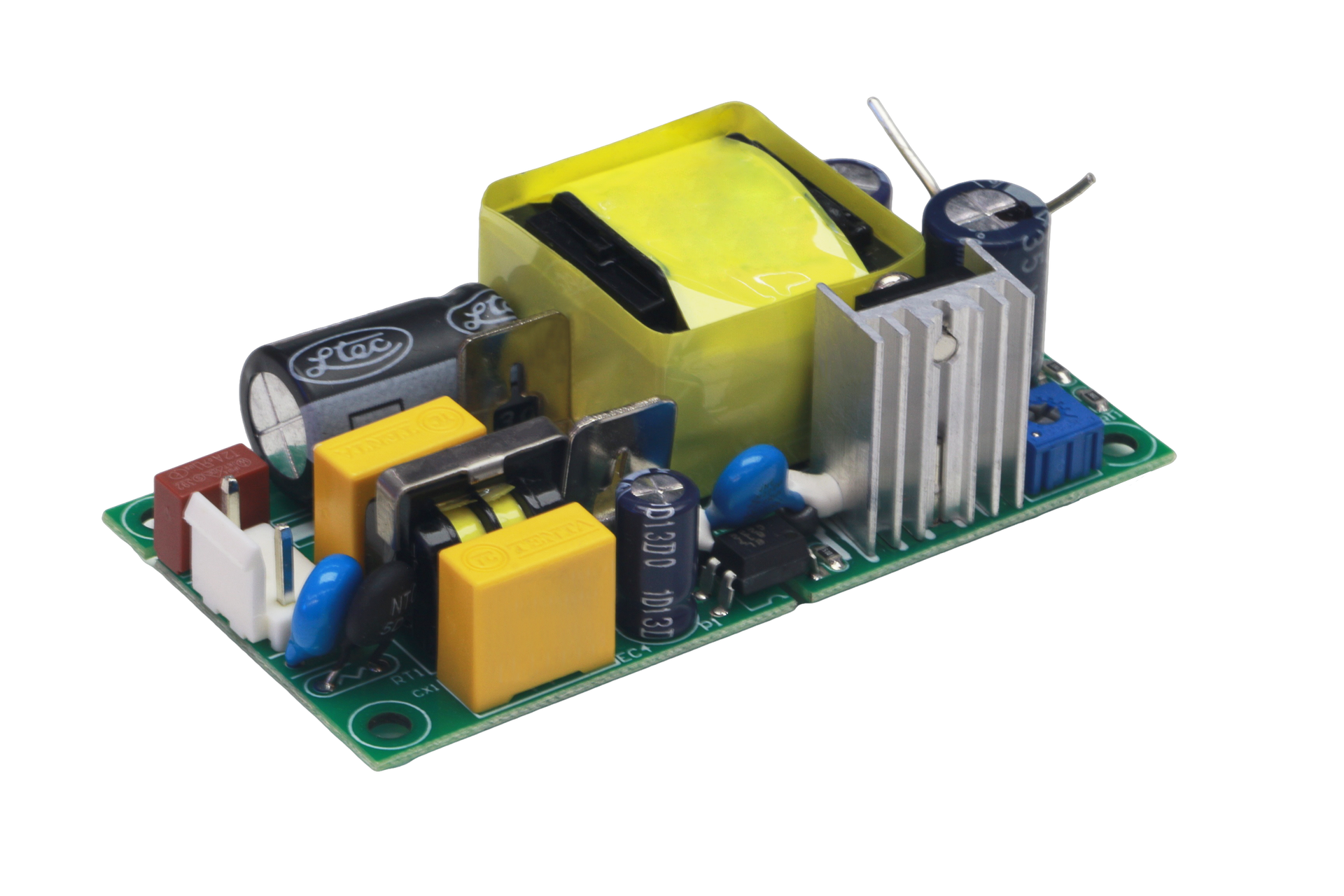

TPS-YSU20SH-5V Single Output Open Frame Power Supply

The TPS-YSU20SH-5V is a high-performance member of the TPS-YSU20SH Series single output open frame power supply, designed to deliver stable and reliable power for various applications. As a 5V/12V/24V single output power supply, it provides a consistent 5V output with a rated current of 3A and a current range of 0-3A, ensuring reliable performance under different load conditions. This 15W/24W open frame power supply offers a rated power of 15W and an efficiency of 76.0%, making it a low power compact size high efficiency power supply with dimensions of 76×40×22mm and a lightweight design of about 39g, ideal for space-constrained installations.

As a wide input voltage range power supply, it supports 85~265VAC input voltage and 50-60Hz input frequency, enabling seamless operation in global power grids. It is an overload short-circuit overtemperature protection power supply, featuring comprehensive protections including overload (130-150% of rated power with automatic recovery), short circuit (hiccup mode with automatic recovery after fault removal), and overtemperature (PWM Chip Node Temperature >100°C shutdown control), ensuring safe and reliable operation. With an operating temperature range of -20~+60°C@100% Load and +60°C@60% Load, it stands as a -20~+60°C operating power supply, adaptable to diverse environmental conditions.

This CE certified open frame power supply complies with EN61000-3-2/EN 61000-4-4/EN55022 CLASSB standards, qualifying it as an EN61000 EN55022 CLASSB compliant power supply. It undergoes a full load burn-in test, making it a full load burn-in test power supply to guarantee long-term reliability. Additionally, it is a high output voltage accuracy power supply with trimmable output voltage via a potentiometer, ensuring precise voltage control for specific applications.

Key Features

• Series Affiliation: Part of the TPS-YSU20SH Series single output open frame power supply, ensuring uniform quality and design across the series.
• Wide Input Compatibility: Functions as a wide input voltage range power supply with 85~265VAC input, suitable for global use as an 85~265VAC input power supply.
• Comprehensive Protections: Serves as an overload short-circuit overtemperature protection power supply, integrating overload, short-circuit, and overtemperature protection for enhanced safety.
• Efficient and Compact: A low power compact size high efficiency power supply with 76.0% efficiency, 76×40×22mm dimensions (76×40×22mm open frame power supply), and 39g weight (39g open frame power supply), saving space and energy.
• Certified Compliance: A CE certified open frame power supply and EN61000 EN55022 CLASSB compliant power supply, meeting strict international safety and EMC standards.
• Rigorous Testing: Undergoes full load burn-in test, qualifying as a full load burn-in test power supply for proven reliability.
• High Precision Output: A high output voltage accuracy power supply with trimmable output voltage via potentiometer, ensuring precise voltage control. It is a 5V/12V/24V single output power supply with 5V output, 0-3A current range, and 15W rated power (part of 15W/24W open frame power supply options).
• Environmental Resilience: Operates as a -20~+60°C operating power supply, suitable for harsh environments.
