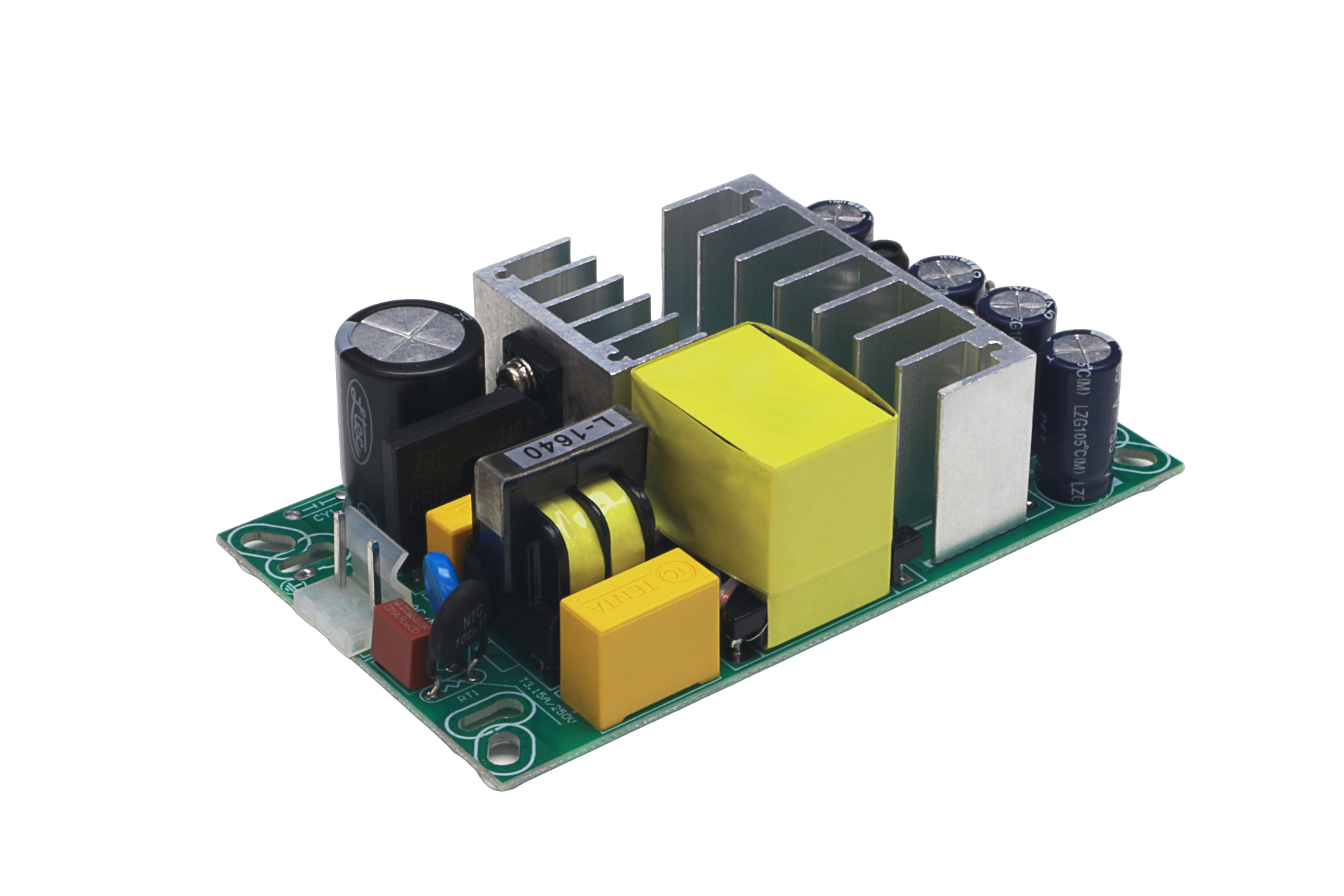

TPS-YSU65SCB-24V Single Output Open Frame Power Supply

The TPS-YSU65SCB-24V is a high-performance member of the TPS-YSU65S Series single output open frame power supply, designed to deliver stable and efficient power for diverse industrial and commercial applications. As a 5V/12V/15V/18V/24V/36V/48V single output power supply, it provides a reliable 24V output with a rated current of 2.5A and a current range of 0-3A, ensuring consistent performance under varying load conditions. This 40W/60W/72W open frame power supply offers a rated power of 60W, making it a small size high efficiency power supply with compact dimensions of 108×62×30mm and a lightweight design of 146g, ideal for space-constrained installations.

As a wide input voltage range power supply, it supports 100~264VAC input voltage and 47~63Hz frequency, enabling seamless operation in global power grids as a 100~264VAC input power supply. It is an overload short-circuit over-voltage protection power supply, featuring comprehensive protections: overload protection (150~170% of rated power with auto-recovery), short-circuit protection (hiccup mode with auto-recovery), and over-voltage protection (VH1: >150%), ensuring safe and reliable operation. With an operating temperature range of -15°C~+50°C@100% Load and +60°C@60% Load, it stands as a -15°C~+50°C operating power supply, adaptable to diverse environmental conditions.

This power supply undergoes a full-load burn-in test, qualifying it as a full-load burn-in test power supply to guarantee long-term reliability. It is also an ultra-low output ripple power supply with ripple <130mVp-p, ensuring stable power delivery for sensitive equipment. Additionally, it is a Gb4943 compliant power supply, meeting strict safety standards for reliable application in various scenarios.

Key Features

• Series Affiliation: Part of the TPS-YSU65S Series single output open frame power supply, ensuring consistent quality and design across the series.
• Wide Input Compatibility: Functions as a wide input voltage range power supply with 100~264VAC input, suitable for global use as a 100~264VAC input power supply.
• Comprehensive Protections: Serves as an overload short-circuit over-voltage protection power supply, integrating overload, short-circuit, and over-voltage protection for enhanced safety.
• Compact and Efficient: A small size high efficiency power supply with 108×62×30mm dimensions (108×62×30mm open frame power supply) and 146g weight (146g open frame power supply), saving space and energy.
• Rigorous Testing: Undergoes full-load burn-in test, qualifying as a full-load burn-in test power supply for proven reliability.
• Stable Output: An ultra-low output ripple power supply with ripple <130mVp-p, ensuring stable power delivery. It is a 5V/12V/15V/18V/24V/36V/48V single output power supply with 24V output, 0-3A current range, and 60W rated power (part of 40W/60W/72W open frame power supply options).
• Environmental Adaptability: Operates as a -15°C~+50°C operating power supply, suitable for diverse working conditions.
• Safety Compliance: A Gb4943 compliant power supply, meeting strict safety standards for reliable application.
