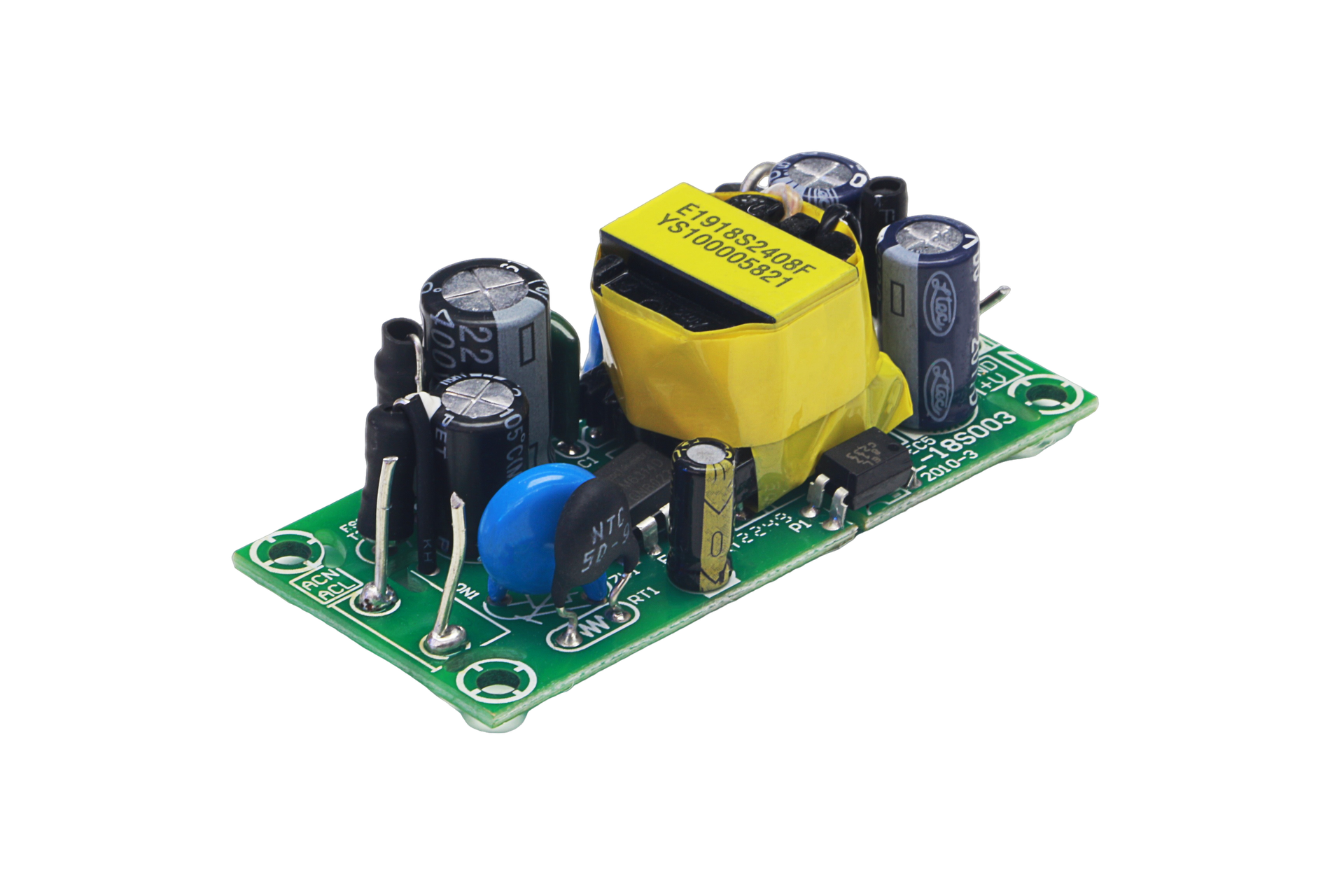

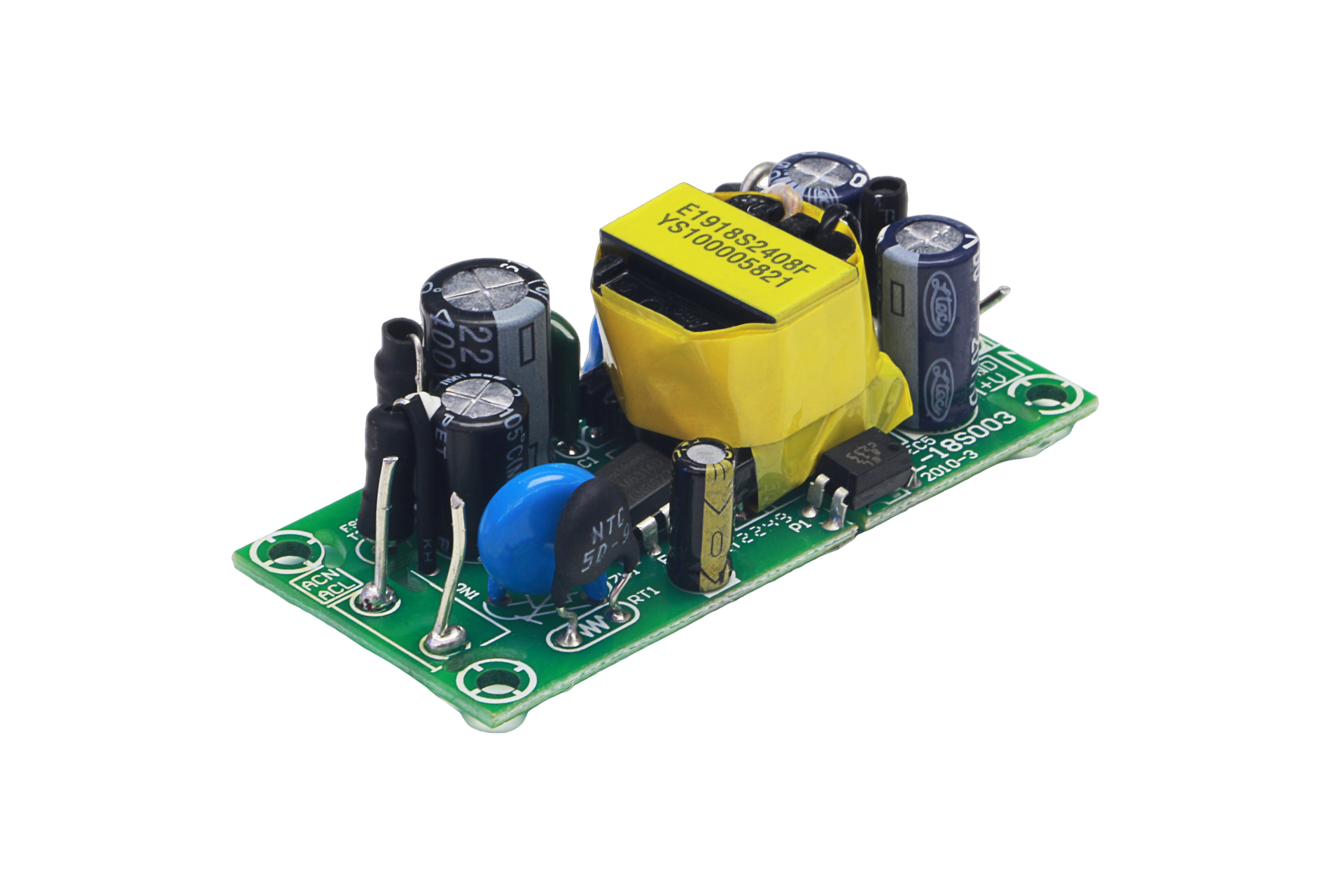

TPS-YS18SWL-5V Single Output Open Frame Power Supply

The TPS-YS18SWL-5V is a reliable member of the TPS-YS18SWL Series single output open frame power supply, designed to deliver stable and efficient power for various electronic devices. As a 5V/12V/24V single output power supply, it provides a consistent 5V output with a rated current of 3.5A and a current range of 0-3.5A, ensuring reliable performance under varying load conditions. This 17.5W/18W/20W open frame power supply offers a rated power of 17.5W and an efficiency of 83.5%, making it a low power compact size high efficiency power supply with dimensions of 66.2×30.5×22mm and a lightweight design of about 35g, ideal for space-constrained installations.

As a wide input voltage range power supply, it supports 100~240VAC (125-375VDC) input voltage and 47-63Hz input frequency, enabling seamless operation in global power grids as a 100~240VAC input power supply. It is an overload short-circuit overtemperature protection power supply, featuring comprehensive protections including overload (150-170% of rated power with automatic recovery after fault removal), short circuit (hiccup mode with automatic recovery after short circuit removal), and overtemperature protection, ensuring safe and reliable operation. With an operating temperature range of -20~+40°C@100% Load and +60°C@60% Load, it stands as a -20~+40°C operating power supply, adaptable to diverse environmental conditions.

This power supply is a CE certified open frame power supply, meeting strict safety standards, and an EN55032 EN55024 compliant power supply, adhering to rigorous electromagnetic compatibility requirements. It also features low no-load power consumption (220VAC IN: <0.3W; 110VAC IN: <0.1W), enhancing its energy efficiency.

Key Features

• Series Affiliation: Part of the TPS-YS18SWL Series single output open frame power supply, ensuring consistent quality and design across the series.
• Wide Input Compatibility: Functions as a wide input voltage range power supply with 100~240VAC (125-375VDC) input, suitable for global use as a 100~240VAC input power supply.
• Comprehensive Protections: Serves as an overload short-circuit overtemperature protection power supply, integrating overload, short-circuit, and overtemperature protection for enhanced safety.
• Compact and Efficient: A low power compact size high efficiency power supply with 66.2×30.5×22mm dimensions (66.2×30.5×22mm open frame power supply) and 35g weight (35g open frame power supply), saving space and energy.
• Certified Compliance: A CE certified open frame power supply and EN55032 EN55024 compliant power supply, meeting strict safety and electromagnetic compatibility standards.
• Power Specifications: A 5V/12V/24V single output power supply with 5V output, 0-3.5A current range, and 17.5W rated power (part of 17.5W/18W/20W open frame power supply options).
• Environmental Adaptability: Operates as a -20~+40°C operating power supply, suitable for diverse working conditions.
