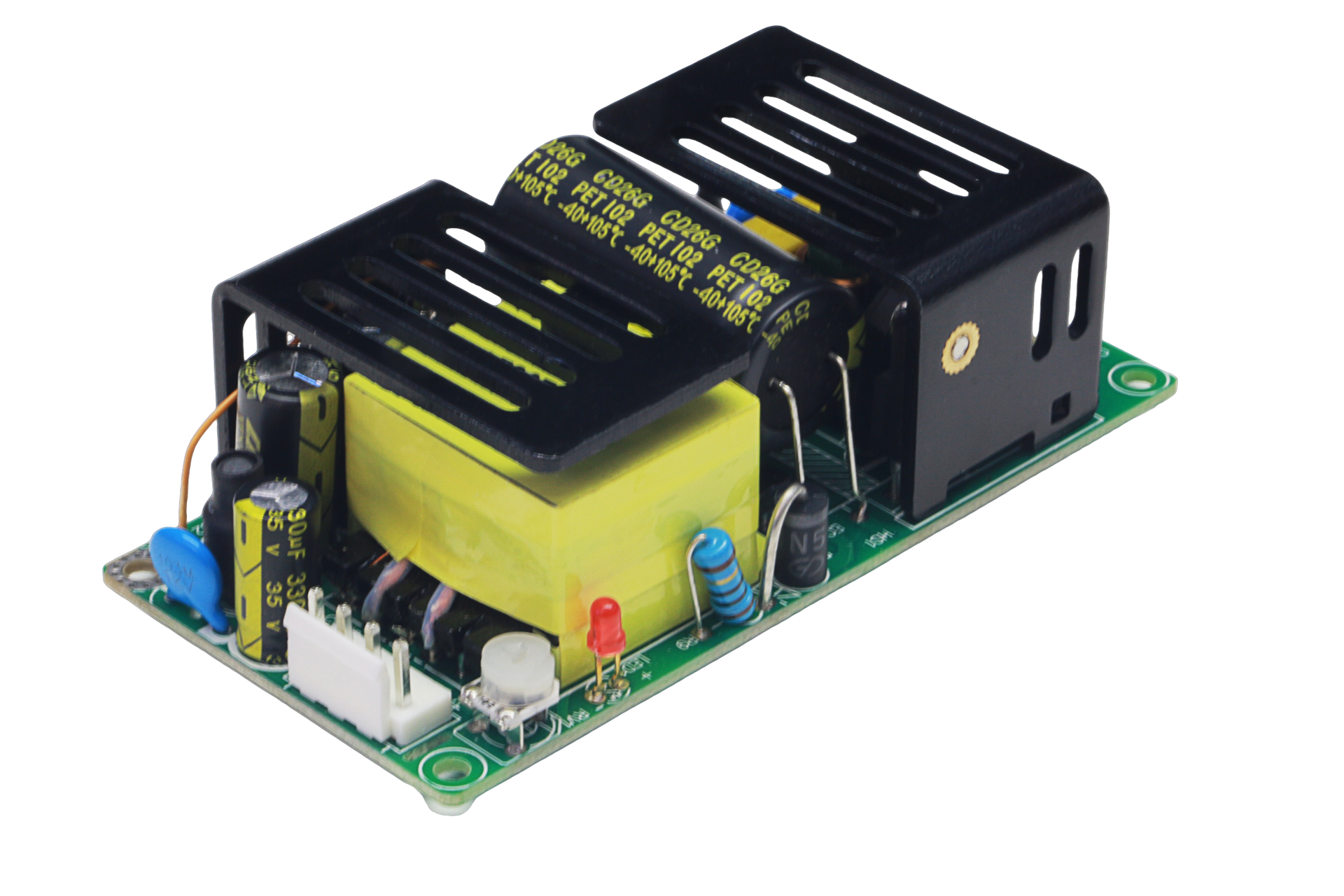

TPS-RPS120S-12V Single Output Open Frame Power Supply

The TPS-RPS120S-12V is a high-performance member of the TPS-RPS120S Series single output open frame power supply, designed to deliver stable and efficient power for diverse industrial applications. As a 9V/12V/18V/24V/36V/48V single output power supply, it provides a consistent 12V output with a rated current of 8.3A under natural cooling (0~8.3A range) and 10A with 20CFM fan cooling (0~10A range), ensuring reliable performance across varying load conditions. This 75W/100W/90W/120W open frame power supply offers 100W rated power under natural cooling and 120W with fan cooling, making it adaptable to different thermal environments.

As a 90-264VAC/127-370VDC input power supply, it supports a wide input range, enabling seamless operation in global power grids. It is a compact size 4'2 power supply with dimensions of 101.6×50.8×32mm (101.650.832mm open frame power supply) and a lightweight design of about 162g (162g open frame power supply), ideal for space-constrained installations. It functions as a natural cooling 100W power supply and 120W 10CFM fan cooling power supply, adapting to varying thermal management needs.

This power supply is a 3000VAC high-voltage isolation power supply, ensuring safe electrical isolation, and a low ripple noise regulated output power supply with a maximum ripple of 100mVp-p, delivering stable power for sensitive equipment. It is a short circuit overcurrent overvoltage protection power supply, featuring comprehensive protections (overload: 115%~180% of rated power with auto-recovery; overvoltage: 150%~200% of rated voltage with auto-recovery) for enhanced safety. As a high efficiency reliable power supply with LED indicator, it offers up to 88% efficiency and visual power status monitoring.

With an operating temperature range of -30~60°C, it stands as a -30~60°C operating power supply, adaptable to harsh environments. It is also a 5000 meters operating altitude power supply, suitable for high-altitude applications. Compliance-wise, it is an EN 62368-1 compliant power supply and EN55032 Class B EMC power supply, meeting strict safety and electromagnetic compatibility standards.

Key Features

• Series Affiliation: Part of the TPS-RPS120S Series single output open frame power supply, ensuring consistent quality and design.
• Compact Design: A compact size 4'2 power supply with 101.6×50.8×32mm dimensions (101.650.832mm open frame power supply) and 162g weight (162g open frame power supply), saving installation space.
• Flexible Cooling: Operates as a natural cooling 100W power supply and 120W 10CFM fan cooling power supply, adapting to varying load and thermal conditions.
• High Isolation: A 3000VAC high-voltage isolation power supply, ensuring safe electrical separation.
• Stable Output: A low ripple noise regulated output power supply with max ripple 100mVp-p, suitable for sensitive equipment.
• Comprehensive Protections: Serves as a short circuit overcurrent overvoltage protection power supply, with auto-recovery features for enhanced reliability.
• Efficient and Reliable: A high efficiency reliable power supply with LED indicator, offering up to 88% efficiency and visual status checks.
• Environmental Adaptability: Operates as a -30~60°C operating power supply and 5000 meters operating altitude power supply, suitable for harsh and high-altitude environments.
• Power Specifications: A 9V/12V/18V/24V/36V/48V single output power supply with 12V output, 100W (natural cooling)/120W (fan cooling) rated power (part of 75W/100W/90W/120W open frame power supply options).
• Wide Input Compatibility: Functions as a 90-264VAC/127-370VDC input power supply, suitable for global use.
• Compliance: An EN 62368-1 compliant power supply and EN55032 Class B EMC power supply, meeting strict safety and EMC standards.
