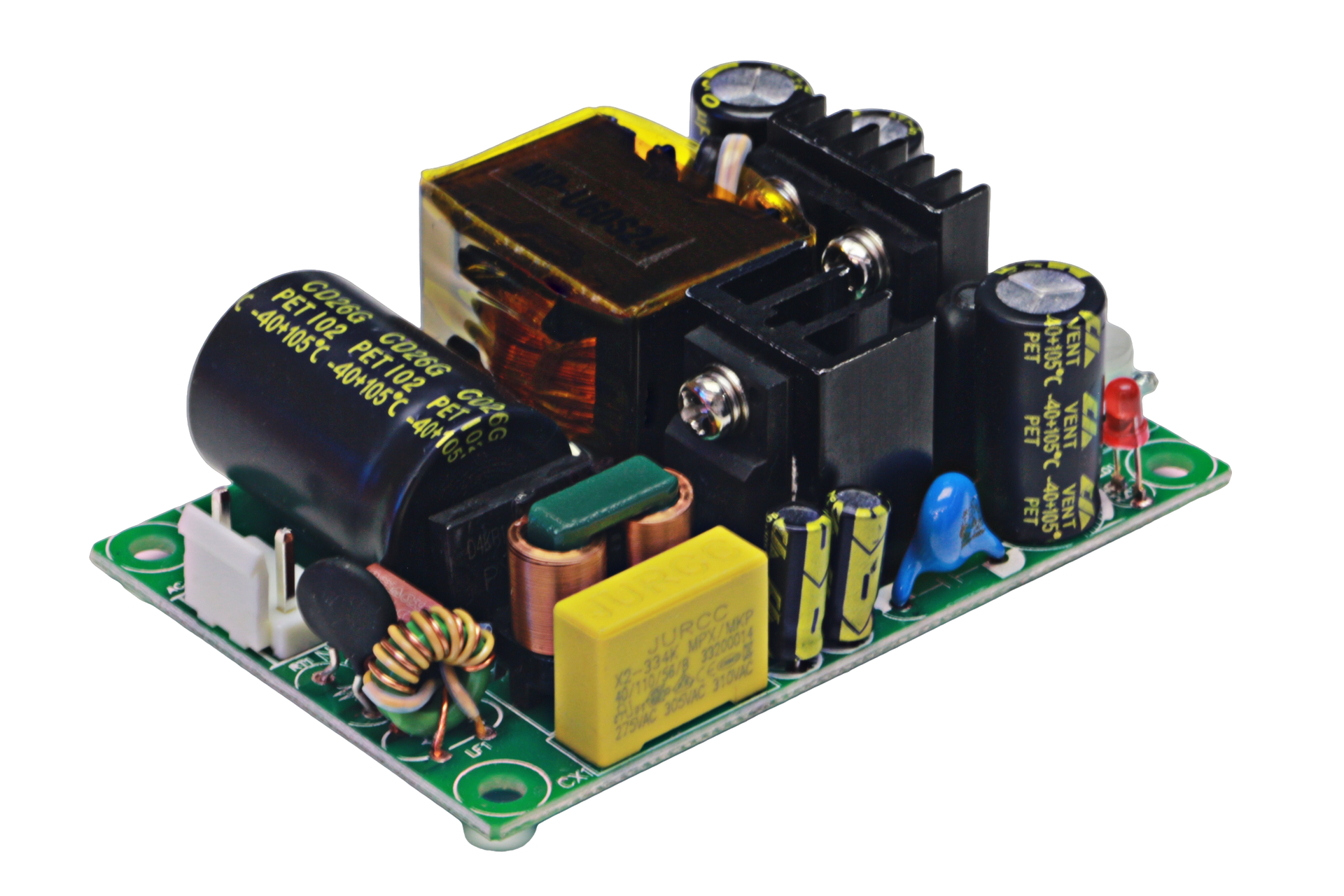

TPS-MPU60S-24V Single Output Open Frame Power Supply

The TPS-MPU60S-24V is a high-reliability member of the TPS-MPU60S Series single output open frame power supply, engineered to deliver stable and efficient power for diverse industrial applications. As a 9V/12V/24V/36V/48V single output power supply, it provides a consistent 24V output with a rated current of 2.5A under natural cooling (current range 0~2.5A) and a rated power of 60W, positioning it as a key option in the 54W/60W open frame power supply range.

As a 3"x2" compact size power supply, it features dimensions of 76×50×26.6mm (765026.6mm open frame power supply) and a lightweight design of approximately 90g (90g open frame power supply), making it ideal for space-constrained installations. It operates as a natural air cooling 60W power supply, achieving efficient heat dissipation without additional cooling mechanisms, and its fanless silent design classifies it as a fanless silent design power supply, ensuring quiet operation in noise-sensitive environments.

This power supply boasts a 3000VAC isolation voltage, qualifying it as a 3000VAC isolation voltage power supply for safe electrical separation. It is a regulated output low ripple power supply with a maximum ripple of 100mVp-p, delivering stable power for sensitive equipment. Equipped with comprehensive safeguards, it is an output short-circuit overcurrent overpower protection power supply, featuring overload (115%~180% of output power), short-circuit, and overcurrent protection with hiccup mode, which automatically recovers after abnormal conditions are resolved.

As a high efficiency high reliability power supply, it offers a typical efficiency of 89% and operates reliably within an input voltage range of 90-264VAC or 127-370VDC (90-264VAC/127-370VDC input power supply) and a frequency range of 47~63Hz. With an operating temperature range of -25~60°C (refer to derating curve) and 20~90% RH (non-condensing), it stands as a -25~60°C operating power supply, adaptable to harsh environments. Compliance-wise, it meets strict standards as a GB4943.1-2011 compliant power supply and EN55032 Class B EMC power supply.

Key Features

• Series Affiliation: Part of the TPS-MPU60S Series single output open frame power supply, ensuring consistent quality and design.
• Compact Design: A 3"x2" compact size power supply with 76×50×26.6mm dimensions (765026.6mm open frame power supply) and 90g weight (90g open frame power supply), saving installation space.
• Natural Cooling: Operates as a natural air cooling 60W power supply, delivering 60W via natural convection without fans.
• High Isolation: A 3000VAC isolation voltage power supply, ensuring safe electrical separation between input and output.
• Stable Output: A regulated output low ripple power supply with max ripple 100mVp-p, suitable for sensitive equipment.
• Comprehensive Protections: Serves as an output short-circuit overcurrent overpower protection power supply, with hiccup mode and automatic recovery.
• Efficient and Reliable: A high efficiency high reliability power supply with 89% typical efficiency and robust performance.
• Silent Operation: A fanless silent design power supply, ensuring quiet operation in noise-sensitive settings.
• Power Specifications: A 9V/12V/24V/36V/48V single output power supply with 24V output, 2.5A rated current, and 60W rated power (part of 54W/60W options).
• Wide Input Compatibility: Functions as a 90-264VAC/127-370VDC input power supply, suitable for global use.
• Environmental Adaptability: Operates as a -25~60°C operating power supply, adaptable to diverse temperature conditions.
• Compliance: A GB4943.1-2011 compliant power supply and EN55032 Class B EMC power supply, meeting strict safety and EMC standards.
