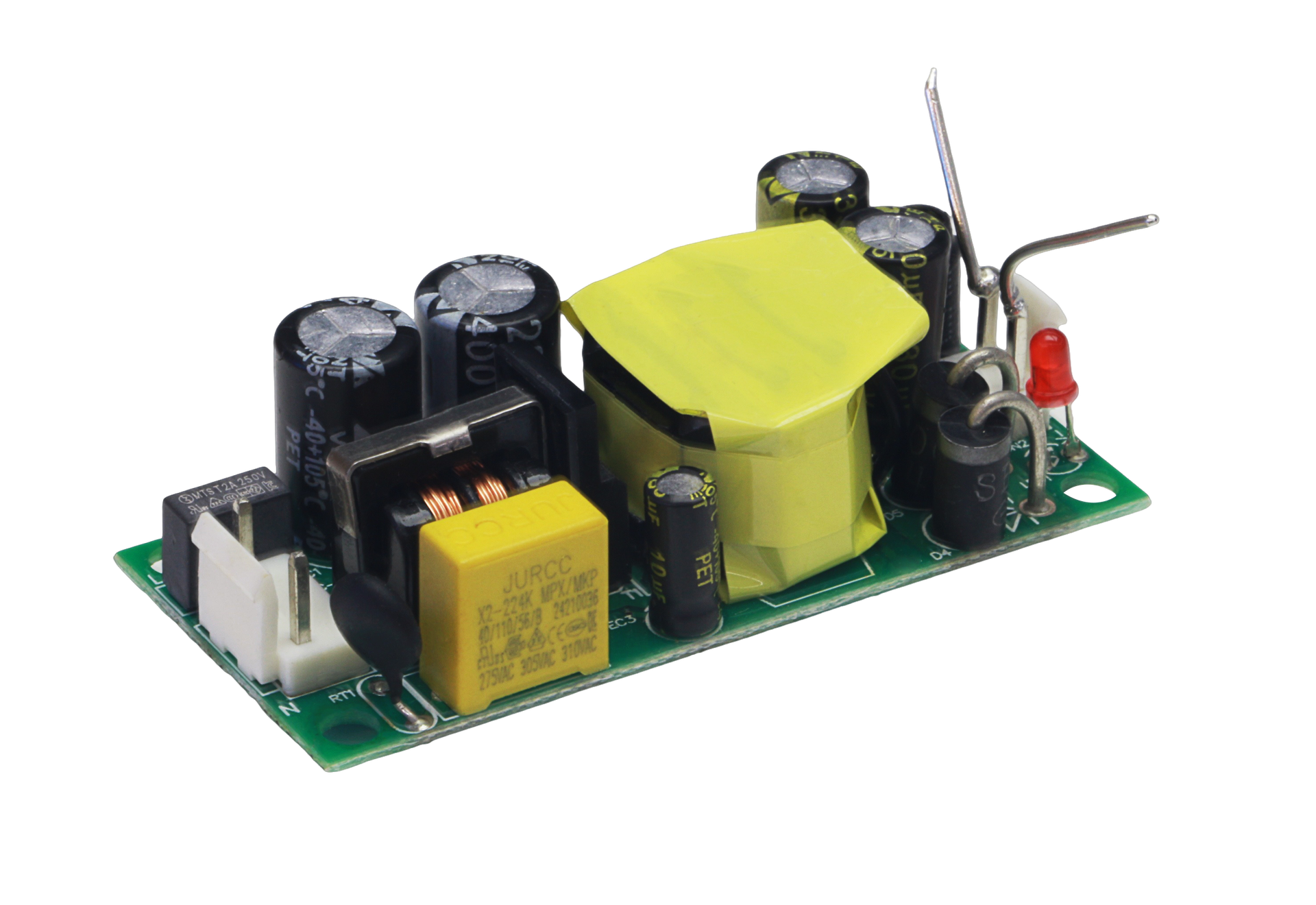

TPS-MPU24S-5V Single Output Open Frame Power Supply

The TPS-MPU24S-5V is a reliable member of the TPS-MPU24S Series single output open frame power supply, designed to deliver stable and efficient power for various electronic applications. As a 5V/12V/24V single output power supply, it provides a consistent 5V output with a rated current of 3.5A under natural cooling (current range 0~3.5A) and a rated power of 17.5W, making it part of the 17.5W/24W open frame power supply options.

As a compact size standard dimensions power supply, it features dimensions of 66.2×30.5×21.2mm (66.230.521.2mm open frame power supply) and a lightweight design of approximately 39g (39g open frame power supply), ideal for space-constrained installations. It operates with natural air cooling, aligning with the natural air cooling 24W power supply series design, and its fanless structure classifies it as a fanless silent design power supply, ensuring quiet operation.

This power supply boasts a 3000VAC isolation voltage, qualifying it as a 3000VAC isolation voltage power supply for safe electrical separation. It is a regulated output low ripple power supply with a maximum ripple of 20mVp-p, delivering stable power for sensitive equipment. Equipped with comprehensive safeguards, it is an output short-circuit overcurrent overpower protection power supply, featuring overload (115%~180% of rated power) and short-circuit protection in hiccup mode, which automatically recovers after fault removal.

As a high efficiency high reliability power supply, it offers a typical efficiency of 80% and operates reliably within an input voltage range of 90-264VAC or 127-370VDC (90-264VAC/127-370VDC input power supply) and a frequency range of 47~63Hz. With an operating temperature range of -25~60℃ (refer to derating curve) and 20~90% RH (non-condensing), it stands as a -25~60℃ operating power supply and a -25℃ operable power supply, adaptable to harsh environments. Compliance-wise, it meets strict standards as a GB4943.1-2011 compliant power supply and EN55032 Class B EMC power supply.

Key Features

• Series Affiliation: Part of the TPS-MPU24S Series single output open frame power supply, ensuring consistent quality and design.
• Compact Design: A compact size standard dimensions power supply with 66.2×30.5×21.2mm dimensions (66.230.521.2mm open frame power supply) and 39g weight (39g open frame power supply), saving installation space.
• Natural Cooling: Compatible with the natural air cooling 24W power supply series design, operating efficiently via natural convection.
• High Isolation: A 3000VAC isolation voltage power supply, ensuring safe electrical separation between input and output.
• Stable Output: A regulated output low ripple power supply with max ripple 20mVp-p, suitable for sensitive equipment.
• Comprehensive Protections: Serves as an output short-circuit overcurrent overpower protection power supply, with hiccup mode and automatic recovery.
• Efficient and Reliable: A high efficiency high reliability power supply with 80% typical efficiency and robust performance.
• Low-Temperature Operation: A -25℃ operable power supply, suitable for cold environments.
• Silent Operation: A fanless silent design power supply, ensuring quiet operation in noise-sensitive settings.
• Power Specifications: A 5V/12V/24V single output power supply with 5V output, 3.5A rated current, and 17.5W rated power (part of 17.5W/24W options).
• Wide Input Compatibility: Functions as a 90-264VAC/127-370VDC input power supply, suitable for global use.
• Environmental Adaptability: Operates as a -25~60℃ operating power supply, adaptable to diverse temperature conditions.
• Compliance: A GB4943.1-2011 compliant power supply and EN55032 Class B EMC power supply, meeting strict safety and EMC standards.
