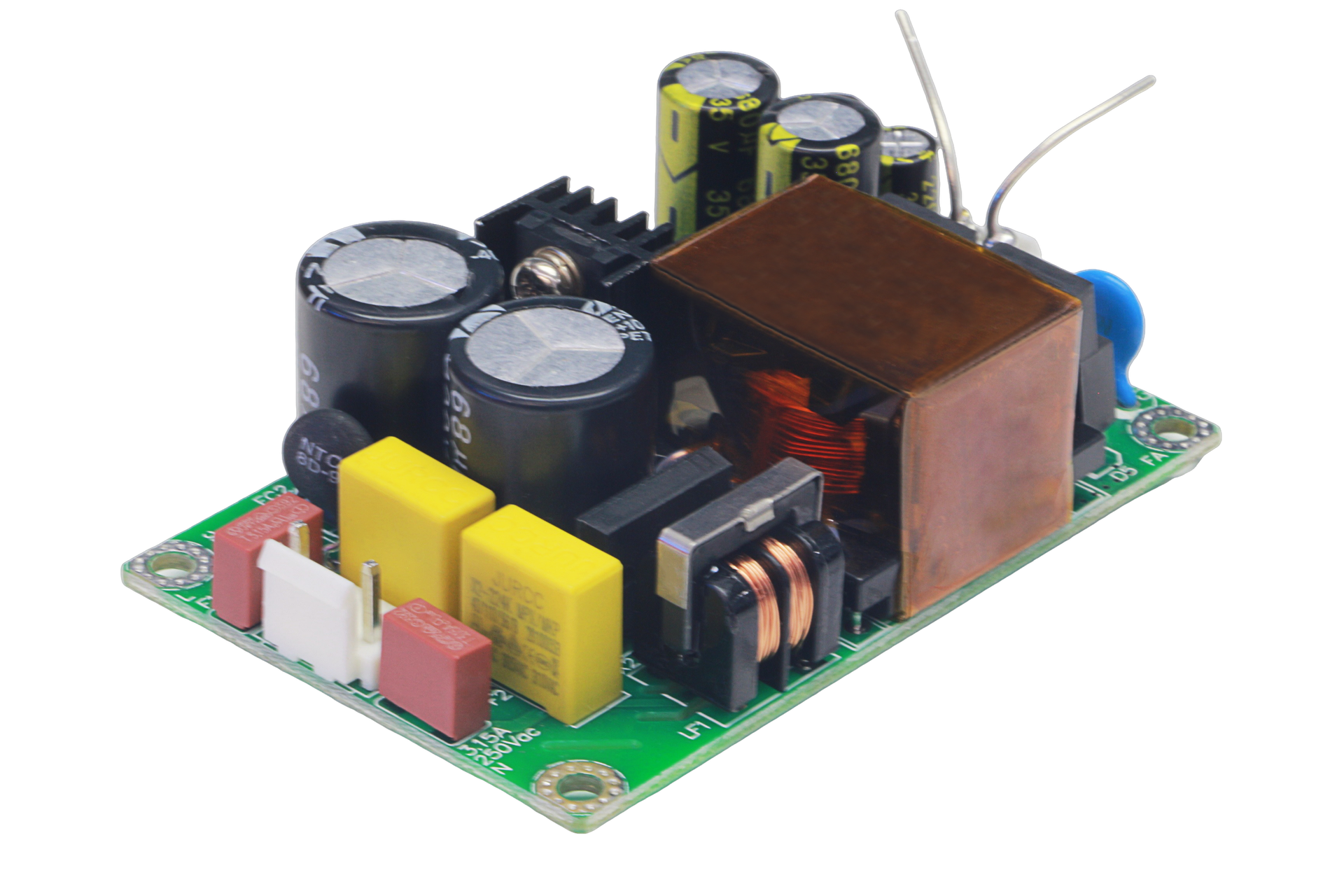

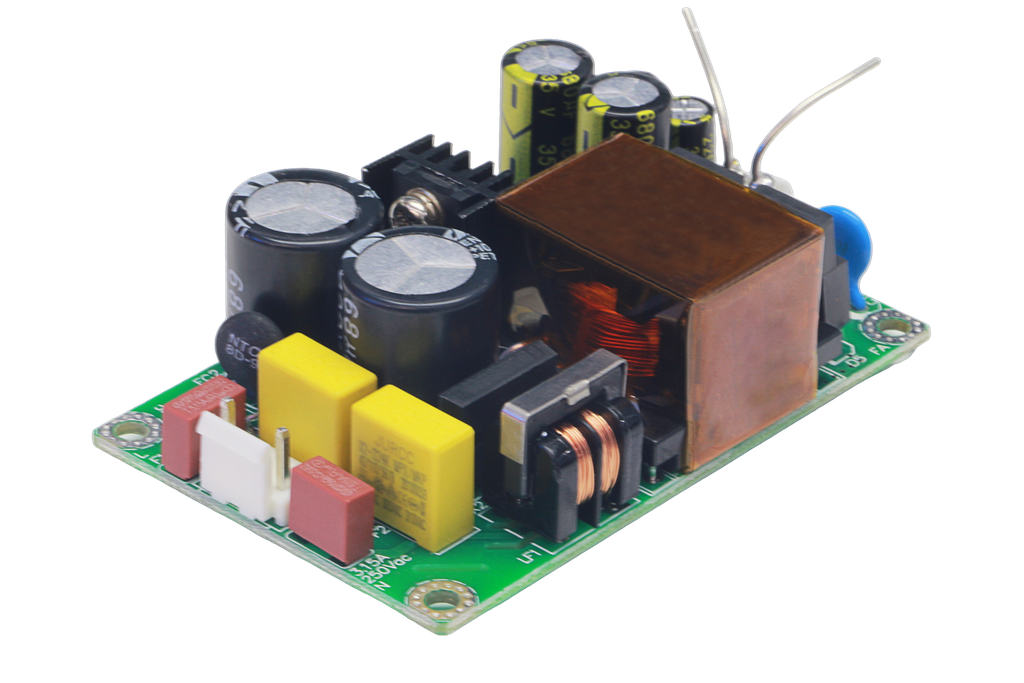

TPS-MPT36S-24V Single Output Open Frame Power Supply

The TPS-MPT36S-24V is a high-performance member of the TPS-MPT36S High Voltage Series single output open frame power supply, engineered to deliver stable and efficient power for industrial applications requiring high voltage compatibility. As a 5V/12V/24V single output power supply, it provides a consistent 24V output with a rated current of 1.5A (176-500VAC) and a current range of 0.1~1.5A under natural cooling, offering a rated power of 36W, making it part of the 30W/36W open frame power supply range.

As a 100V-500VAC/141V-707VDC input power supply, it supports a wide input range, enabling versatile operation in diverse power grids, including compatibility with 110V/220V/380V systems. It features compact dimensions of 76×50×26.5mm (765026.5mm open frame power supply) and a lightweight design of approximately 95g (95g open frame power supply), ideal for space-constrained installations.

This power supply boasts a 3000VAC isolated withstand voltage, qualifying it as a 3000VAC isolated withstand voltage power supply for safe electrical separation. It is a regulated output low ripple power supply with a maximum ripple of 80mVp-p, ensuring stable power for sensitive equipment. Equipped with comprehensive safeguards, it is an output short-circuit over current over power protection power supply, featuring overload (120%~180% of rated power) protection in hiccup mode with automatic recovery after fault removal.

As a high efficiency high reliability power supply, it offers a typical efficiency of 89% and operates reliably within an ambient temperature range of -30℃~60℃ (refer to derating curve) and 20~90% RH (non-condensing), standing as a -30℃~60℃ temperature range power supply. Compliance-wise, it meets strict standards as a GB 4943.1-2011 compliant power supply and EN55032 Class A EMC power supply.

Key Features

• Series Affiliation: Part of the TPS-MPT36S High Voltage Series single output open frame power supply, ensuring consistent quality for high-voltage applications.
• Wide Input Range: Functions as a 100V-500VAC/141V-707VDC input power supply, supporting diverse power grids including 110V/220V/380V.
• Environmental Adaptability: Operates as a -30℃~60℃ temperature range power supply, suitable for extreme temperature conditions.
• High Isolation: A 3000VAC isolated withstand voltage power supply, ensuring safe electrical separation between input and output.
• Stable Output: A regulated output low ripple power supply with max ripple 80mVp-p, suitable for sensitive equipment.
• Comprehensive Protections: Serves as an output short-circuit over current over power protection power supply, with hiccup mode and automatic recovery.
• Efficient and Reliable: A high efficiency high reliability power supply with 89% typical efficiency and robust performance.
• Power Specifications: A 5V/12V/24V single output power supply with 24V output, 1.5A rated current, and 36W rated power (part of 30W/36W options).
• Compact Design: With 76×50×26.5mm dimensions (765026.5mm open frame power supply) and 95g weight (95g open frame power supply), saving installation space.
• Compliance: A GB 4943.1-2011 compliant power supply and EN55032 Class A EMC power supply, meeting strict safety and EMC standards.
