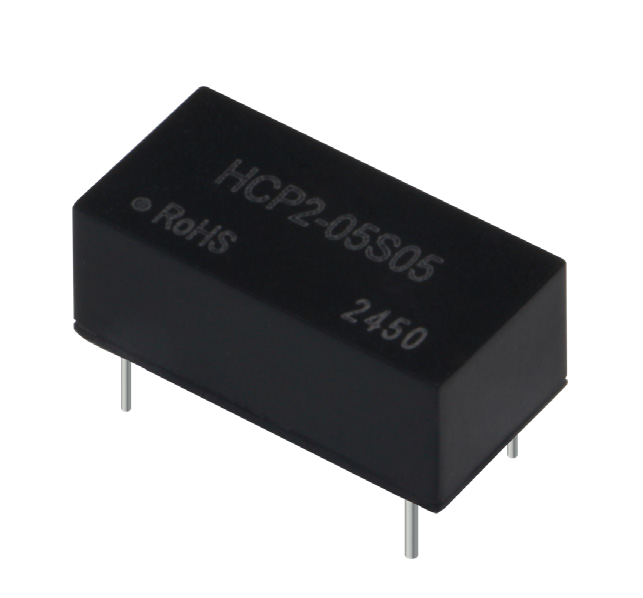

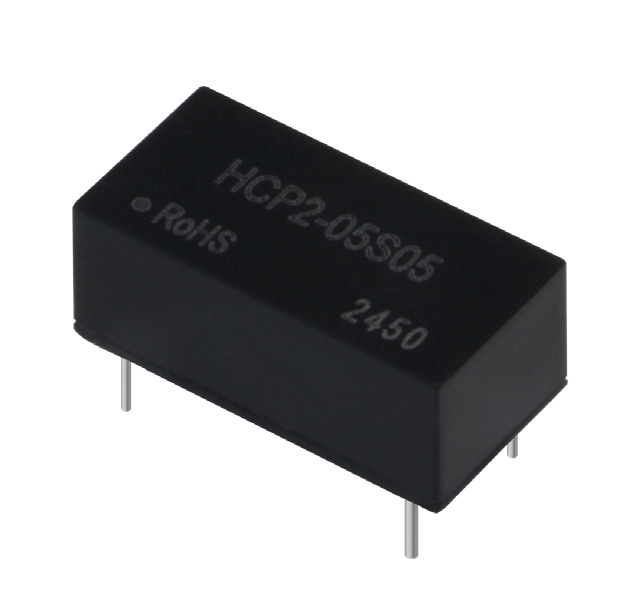

TPS-HCP205S05 DC/DC Module - High-Performance Converter in TPS-HCP2 Series
The TPS-HCP205S05 DC/DC module is a robust member of the TPS-HCP2 Series DC/DC Converter, designed to meet the rigorous demands of industrial and automotive applications. It belongs to a versatile product family that includes models like the TPS-HCP203S03 converter, ensuring consistent performance and seamless system integration. As a DIP14 package DC/DC converter, it features a durable and compact design, suitable for various installation environments. Operating within a wide temperature range of -40°C to +85°C, it stands out as a -40°C to +85°C DC/DC module, guaranteeing stable operation in extreme conditions. With an isolation voltage of 1500VDC, it qualifies as a 1500VDC isolation converter, enhancing electrical safety in critical systems. Boasting 89% efficiency, it is an 89% high efficiency DC/DC converter, optimizing energy utilization for reduced power loss. It accepts input voltages of 3.3VDC, 5VDC, 12VDC, and 15VDC, classifying it as a 3.3VDC 5VDC 12VDC 15VDC input converter, and provides versatile output options including 3.3V, 5V, 9V, 12V, 15V, 24V, as well as ±3.3V, ±5V, ±9V, ±12V, ±15V, covering both the 3.3V 5V 9V 12V 15V 24V output range and the ±3.3V ±5V ±9V ±12V ±15V converter spectrum. Equipped with Input undervoltage protection DC/DC and Output short circuit protection converter, it ensures comprehensive operational safety and prevents damage from electrical anomalies. The module is widely used as an Industrial control DC/DC converter and Automotive DC/DC module, thanks to its reliable performance. It features a UL 94V-0 flame-retardant casing, classifying it as a UL 94V-0 flame-retardant converter, and has a 3500Kh MTBF rating, qualifying as a 3500Kh MTBF DC/DC converter, ensuring long-term reliability.
Key Features
- Series Affiliation: Integral part of the TPS-HCP2 Series DC/DC Converter, compatible with models such as the TPS-HCP203S03 converter for flexible system configuration.
- Durable Package: Utilizes a DIP14 package, functioning as a DIP14 package DC/DC converter for reliable installation in diverse setups.
- Wide Temperature Range: Operates reliably from -40°C to +85°C, qualifying as a -40°C to +85°C DC/DC module for harsh industrial and automotive environments.
- Electrical Isolation: Features 1500VDC isolation, making it a 1500VDC isolation converter for enhanced safety in electrical systems.
- High Efficiency: Delivers 89% efficiency, classifying it as an 89% high efficiency DC/DC converter for optimal energy savings.
- Versatile I/O: Accepts 3.3VDC, 5VDC, 12VDC, 15VDC inputs (part of 3.3VDC 5VDC 12VDC 15VDC input converter options) and provides 3.3V-24V outputs as well as ±3.3V-±15V outputs (covering 3.3V 5V 9V 12V 15V 24V output and ±3.3V ±5V ±9V ±12V ±15V converter needs).
- Comprehensive Protection: Equipped with Input undervoltage protection DC/DC and Output short circuit protection converter to ensure stable operation and prevent damage.
- Broad Applications: Ideal as an Industrial control DC/DC converter and Automotive DC/DC module for critical operation scenarios.
- Flame-Retardant Casing: Uses UL 94V-0 material, classifying it as a UL 94V-0 flame-retardant converter for enhanced safety in high-risk environments.
- Long-Term Reliability: Boasts a 3500Kh MTBF rating, qualifying as a 3500Kh MTBF DC/DC converter for extended service life in demanding applications.
Specifications
Parameter | Value |
---|---|
Dimensions (L*W*H)(mm) | 19.50*9.80*8.00 |
Efficiency | 89% |
Input Voltage | 5VDC |
Output Current | 400mA |
Output Power | 2W |
Output Voltage | 5VDC |
Weight | 2.35g |
Isolation Voltage | 1500VDC |
Package Type | DIP14 |
