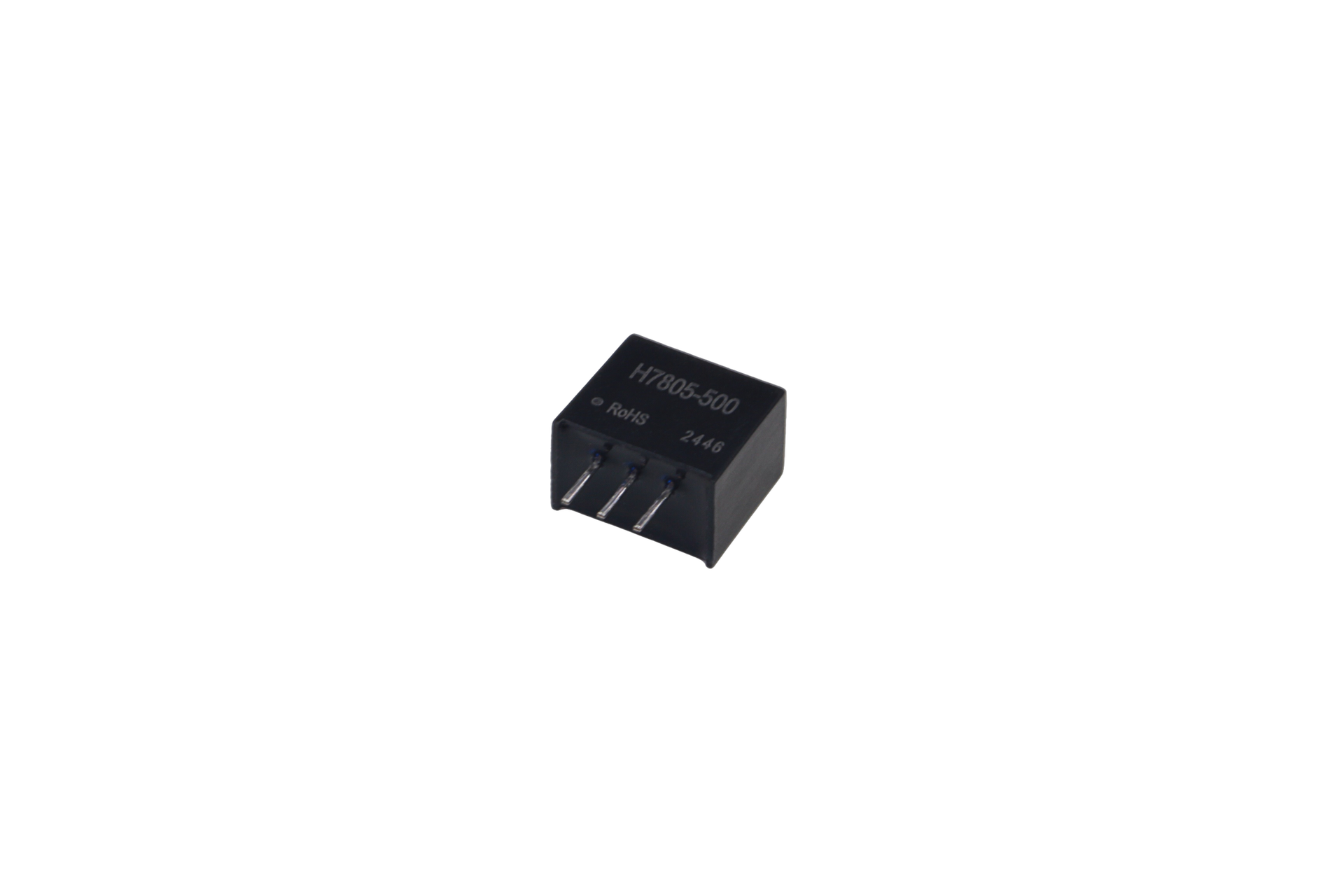

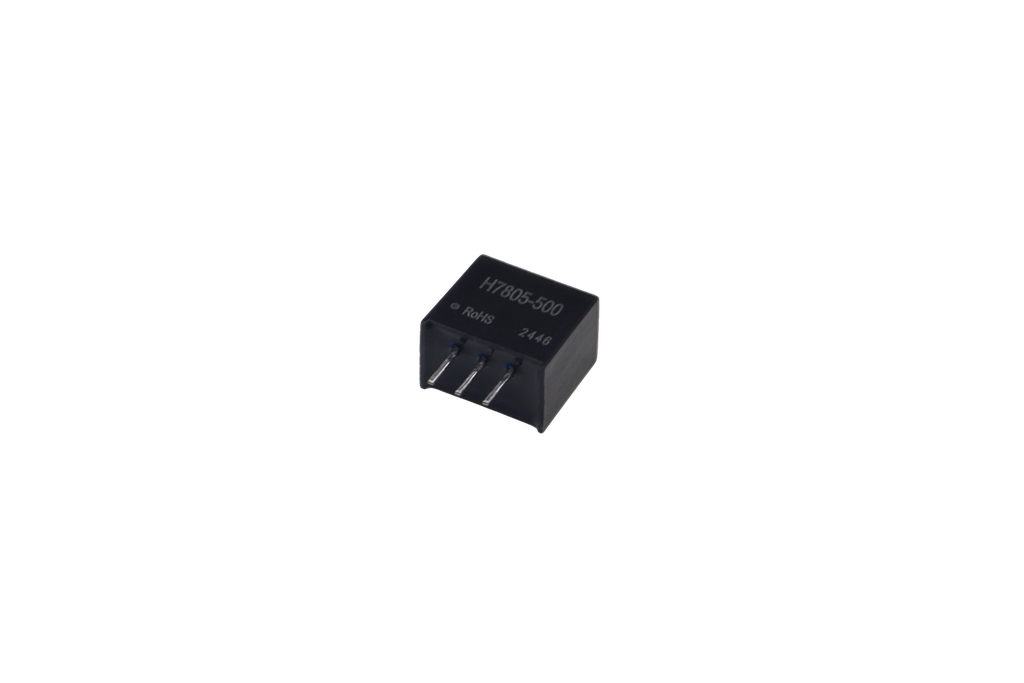

TPS-H7805500 Power Supply - Reliable DCDC Module in TPS-H78500 Series
The TPS-H7805500 power supply is a high-performance member of the TPS-H78500 Series DCDC Module Power Supply, designed to meet diverse industrial needs. As a SIP-3 industrial standard module, it shares excellent characteristics with other modules in the series, such as the TPS-H7803500 DC/DC module and TPS-H7815500 DCDC module. This -40°C to +85°C DC/DC module operates stably across extreme temperatures, making it suitable for harsh environments. Boasting a 95% high efficiency DCDC module capability (with typical efficiency of 90% for TPS-H7805500), it ensures energy-saving performance. It supports negative output as a Negative output DC/DC module, with options like -5V output, and features built-in Output short-circuit protection module for enhanced safety. Covering 3.3V 5V 9V 12V 15V DC output ranges (with 5V as the primary output for TPS-H7805500), it is widely applied as an Industrial control DCDC module, Automotive DCDC power supply, and Rail traffic DC/DC module. Additionally, it is a RoHS compliant DCDC module with a 2000kh MTBF DC/DC module rating, guaranteeing long-term reliability.
Key Features
- Standard Package: Adopts SIP-3 industrial standard, ensuring compatibility and easy integration into various systems as a SIP-3 industrial standard module.
- Wide Temperature Range: Functions reliably in -40°C to +85°C, making it a robust -40°C to +85°C DC/DC module for extreme environments.
- High Efficiency: Part of the 95% high efficiency DCDC module series, with TPS-H7805500 achieving typical efficiency of 90% for optimal energy usage.
- Negative Output Support: As a Negative output DC/DC module, it offers flexible voltage options to meet diverse circuit requirements.
- Safety Protection: Equipped with Output short-circuit protection module, ensuring stable operation and preventing damage from short-circuit issues.
- Versatile Outputs: Covers 3.3V 5V 9V 12V 15V DC output, with TPS-H7805500 providing 5V output (0-500mA) for various applications.
- Broad Applications: Ideal as an Industrial control DCDC module, Automotive DCDC power supply, and Rail traffic DC/DC module, among others.
- Compliance & Reliability: RoHS compliant DCDC module with 2000kh MTBF DC/DC module, ensuring environmental friendliness and long service life.
Specifications
Parameter | Value |
---|---|
Dimensions (L*W*H)(mm) | 11.60*7.55*10.16 |
Efficiency | 95% |
Input Voltage | 24VDC |
Output Current | 0-500mA |
Output Power | 2.5W |
Output Voltage | 5VDC |
Weight | 1.8g |
Isolation Voltage | - |
Package Type | SIP-3 industrial standard |
