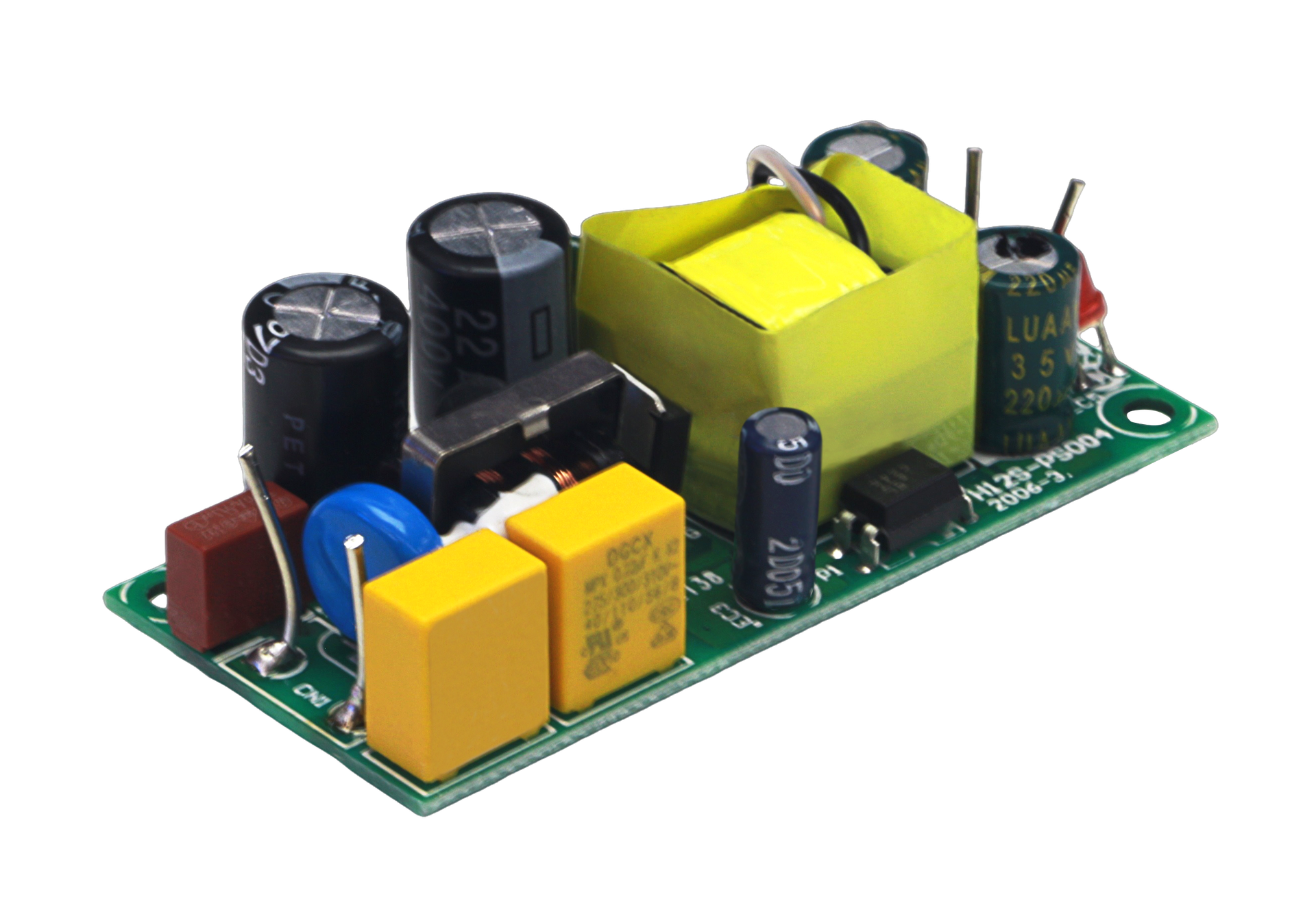

TPS-H12SP-5V Power Supply

The TPS-H12SP-5V is a high-performance Single Output Open Frame Power Supply belonging to the TPS-H12SP High Voltage Series Power Supply. It boasts a Compact Size Power Supply design with dimensions of 66×30.5×20mm and is a Lightweight Power Supply weighing only 33g, making it ideal for space-constrained applications . This power supply supports a wide input range, including 100-400VAC Input Power Supply and 127-610VDC Input Power Supply, ensuring compatibility with global power grids .

As a Natural Cooling Power Supply, it operates efficiently without the need for fans, reducing noise and maintenance requirements . With a 7.5W Rated Power Supply, it delivers a rated current of 1500mA (current range 0-1500mA) and features a 40-60kHz Switching Frequency Power Supply for stable performance . It functions reliably in -20℃ to +50℃ Operating Power Supply environments, with 100% load capacity at -20℃ to +35℃ and 60% load at +50℃ .

Equipped with High Voltage Accuracy Power Supply (±1% voltage accuracy) and Constant Voltage Output Power Supply mode, it offers an adjustable voltage range of 4.95-5.1V . Comprehensive protection mechanisms include Overload Protection Power Supply (130-150% of rated power, auto-recovery), Short-Circuit Protection Power Supply (hiccup mode, auto-recovery), and Over-Voltage Protection Power Supply (DC output >130%) . It achieves over 70% efficiency as an Efficient Power Supply, undergoes Full-Load Burn-In Test Power Supply for quality assurance, and features 3KVAC Withstand Voltage Power Supply for safety compliance .

Key Features

• Design & Size: Structured as a Single Output Open Frame Power Supply with Compact Size Power Supply (66×30.5×20mm) and Lightweight Power Supply (33g) for easy integration.
• Input Compatibility: Supports 100-400VAC Input Power Supply and 127-610VDC Input Power Supply, adapting to global power conditions.
• Cooling & Power: Functions as a Natural Cooling Power Supply with 7.5W Rated Power Supply, ensuring quiet and efficient operation.
• Performance & Accuracy: Features High Voltage Accuracy Power Supply (±1%), Constant Voltage Output Power Supply mode, and 40-60kHz Switching Frequency Power Supply.
• Protection Mechanisms: Includes Overload Protection, Short-Circuit Protection, and Over-Voltage Protection Power Supply for enhanced reliability.
• Safety & Quality: Equipped with 3KVAC Withstand Voltage Power Supply and undergoes Full-Load Burn-In Test Power Supply to meet strict standards.
