Product Description

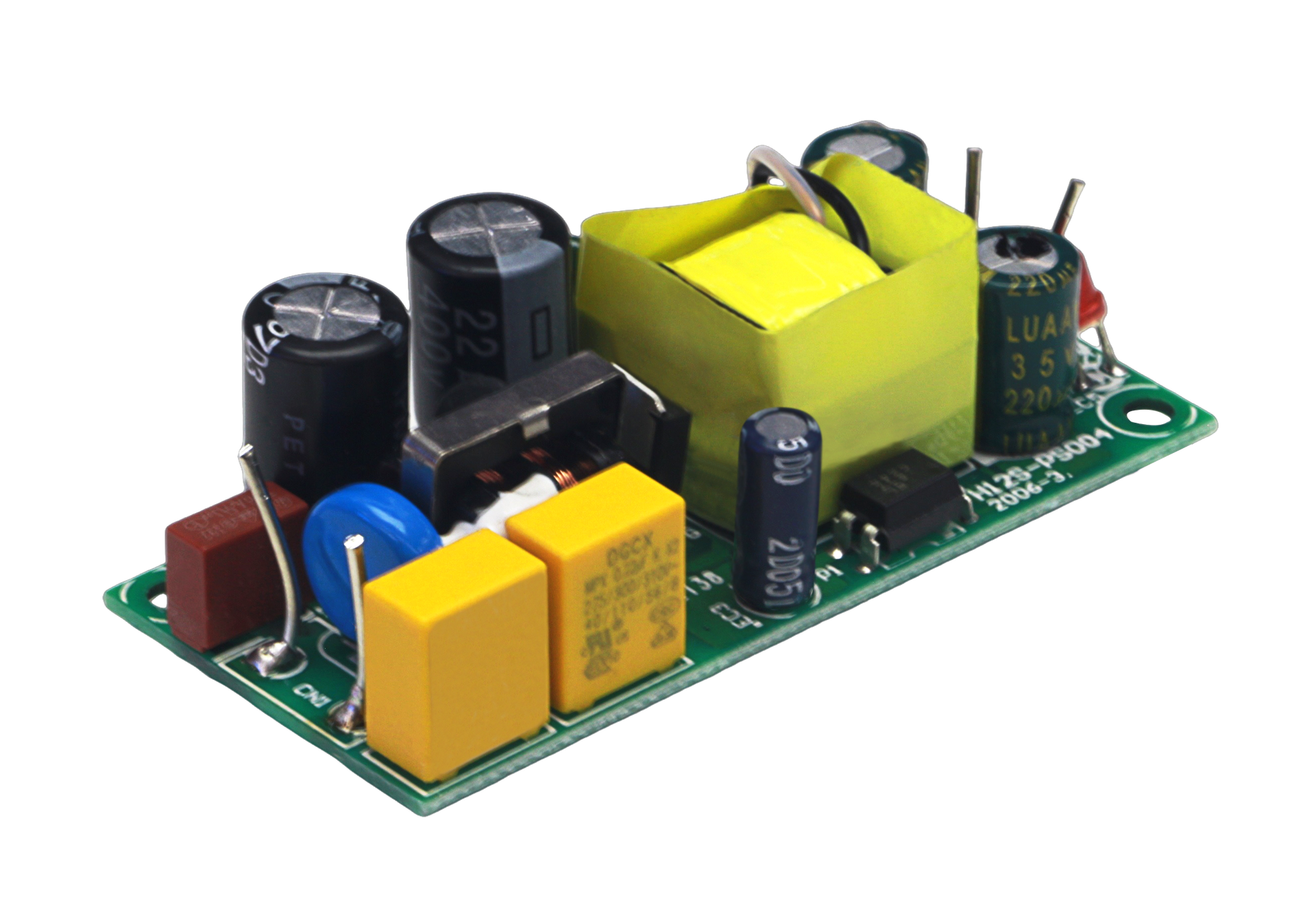

TPS-H12SP-24V Power Supply
The TPS-H12SP-24V is a high-quality Single Output Open Frame Power Supply under the TPS-H12SP High Voltage Series Power Supply, designed with a Compact Size Power Supply structure (66×30.5×20mm) and Lightweight Power Supply feature (33g) for easy installation in space-constrained environments. It supports a wide 100-400VAC Input Power Supply and 127-610VDC Input Power Supply, ensuring compatibility with global power grids.
As a Natural Cooling Power Supply, it operates quietly without fans, making it suitable for noise-sensitive settings. With a 10W Rated Power Supply, it delivers a rated current of 420mA (current range 0-420mA) and functions stably in -20℃ to +50℃ Operating Power Supply conditions (100% load at -20℃ to +35℃, 60% load at +50℃). It features a 40-60kHz Switching Frequency Power Supply, meeting safety standards.
Equipped with High Voltage Accuracy Power Supply (±1% voltage accuracy) and Constant Voltage Output Power Supply mode, it offers an adjustable voltage range of 24-24.2V. Comprehensive protection mechanisms include Overload Protection Power Supply (130-150% of rated power with auto-recovery), Short-Circuit Protection Power Supply (hiccup mode with auto-recovery), and Over-Voltage Protection Power Supply (DC output >130%). As an Efficient Power Supply, it achieves over 82% efficiency and undergoes Full-Load Burn-In Test Power Supply for reliability. The 3KVAC Withstand Voltage Power Supply ensures safety compliance.
Key Features
- Series Affiliation: Part of TPS-H12SP High Voltage Series Power Supply, ensuring consistent quality and design.
- Design & Size: Single Output Open Frame Power Supply with Compact Size Power Supply (66×30.5×20mm) and Lightweight Power Supply (33g).
- Input Compatibility: Supports 100-400VAC Input Power Supply and 127-610VDC Input Power Supply for global use.
- Cooling & Power: Natural Cooling Power Supply with 10W Rated Power Supply, delivering 420mA rated current.
- Operating Range: Functions in -20℃ to +50℃ Operating Power Supply environments, with stable performance under varying loads.
- Accuracy & Efficiency: High Voltage Accuracy Power Supply (±1%) and Efficient Power Supply (up to 82% efficiency).
- Protection Mechanisms: Includes Overload Protection, Short-Circuit Protection, and Over-Voltage Protection Power Supply.
- Safety & Reliability: 3KVAC Withstand Voltage Power Supply, 40-60kHz Switching Frequency, and Full-Load Burn-In Test Power Supply.
Specifications
Parameter | Value |
---|---|
Dimensions (L*W*H)(mm) | 66*30.5*20mm |
Efficiency | >82% |
Input Current | 0.15A-0.09A |
Input Voltage | 100-400Vac, 127-610Vdc |
Output Current | 420mA |
Output Power | 10W |
Output Voltage | 24V |
Weight | 33g |
