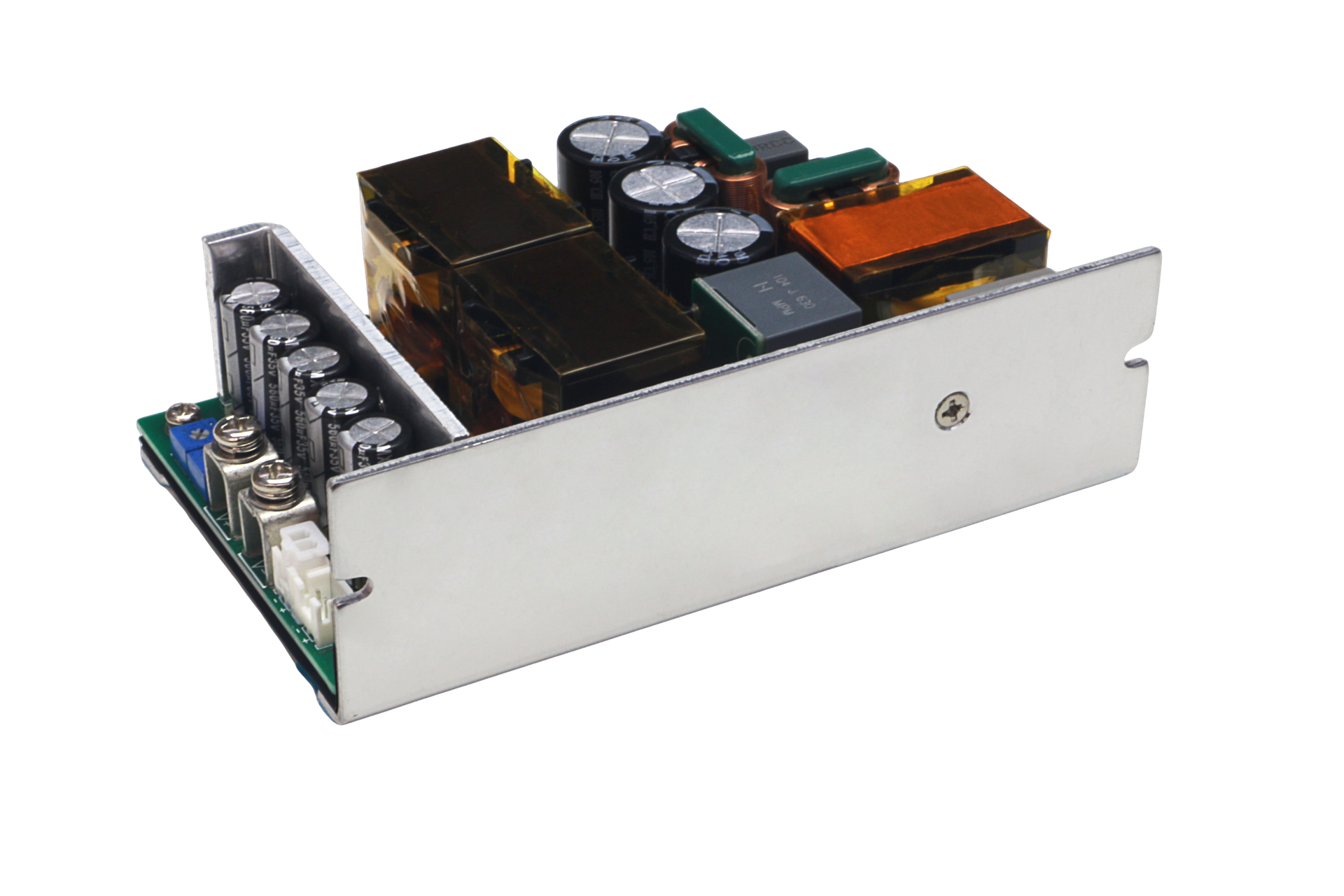

TPS-GSH750S-36V Power Supply

The TPS-GSH750S-36V is a high-performance Single Output Open Frame Power Supply in the TPS-GSH750S Series Power Supply, featuring an Aluminum Enclosure Power Supply with dimensions L×W×H:127x76.2x40mm. It supports 85-305VAC Input Power Supply and 120-420VDC Input Power Supply, ensuring compatibility with global power grids. As a 500W Natural Cooling Power Supply, it delivers 500W under air cooling (36V/13.89A); with 25CFM fan cooling, it functions as a 750W Forced Convection Power Supply, providing up to 750W output (36V/20.84A).

Operating in -25℃ to +70℃ Operating Power Supply range, it maintains stable performance, equipped with 3750VAC Isolation Voltage Power Supply for safety, Active PFC Function Power Supply to optimize power factor, and LED Indicator Light Power Supply for operational status monitoring. As an Output Voltage Adjustment Power Supply, its range is 34.2~39.6V. With High Efficiency 95% Power Supply (up to 95% under specific conditions), it integrates comprehensive protection mechanisms: Input Undervoltage Protection Power Supply, Output Short Circuit Protection Power Supply, Overcurrent Protection Power Supply, Output Overvoltage Protection Power Supply, and Overtemperature Protection Power Supply.

It features Constant Current + Constant Voltage Output Power Supply mode and includes a Remote Sensing Terminal Power Supply for precise voltage regulation. Backed by a 3-year Warranty Power Supply, it is suitable for Industrial Automation Machinery Power Supply, Industrial Control Systems Power Supply, Communication Equipment Power Supply, LED Systems Power Supply, Smart Home Technology Power Supply, Electronic Instruments Power Supply, and Medical Equipment Power Supply.

Key Features

• Series Membership: Part of TPS-GSH750S Series Power Supply, ensuring consistent quality.
• Design & Enclosure: Structured as Single Output Open Frame Power Supply with Aluminum Enclosure Power Supply and dimensions 127x76.2x40mm.
• Input Compatibility: Supports 85-305VAC Input Power Supply and 120-420VDC Input Power Supply for global use.
• Cooling & Power: Functions as 500W Natural Cooling Power Supply (36V/13.89A) and 750W Forced Convection Power Supply (25CFM, 36V/20.84A).
• Temperature Range: Operates in -25℃ to +70℃ Operating Power Supply environments for stability in extreme conditions.
• Safety & Efficiency: Equipped with 3750VAC Isolation Voltage Power Supply and High Efficiency 95% Power Supply.
• Enhanced Functions: Includes Active PFC Function Power Supply, LED Indicator Light Power Supply, Output Voltage Adjustment Power Supply, Remote Sensing Terminal Power Supply, and Constant Current + Constant Voltage Output Power Supply.
• Comprehensive Protection: Features Input Undervoltage, Output Short Circuit, Overcurrent, Output Overvoltage, and Overtemperature Protection Power Supply.
• Warranty: Backed by 3-year Warranty Power Supply for reliability assurance.
• Versatile Applications: Suitable for Industrial Automation Machinery, Communication Equipment, Medical Devices, etc.
