Product Description

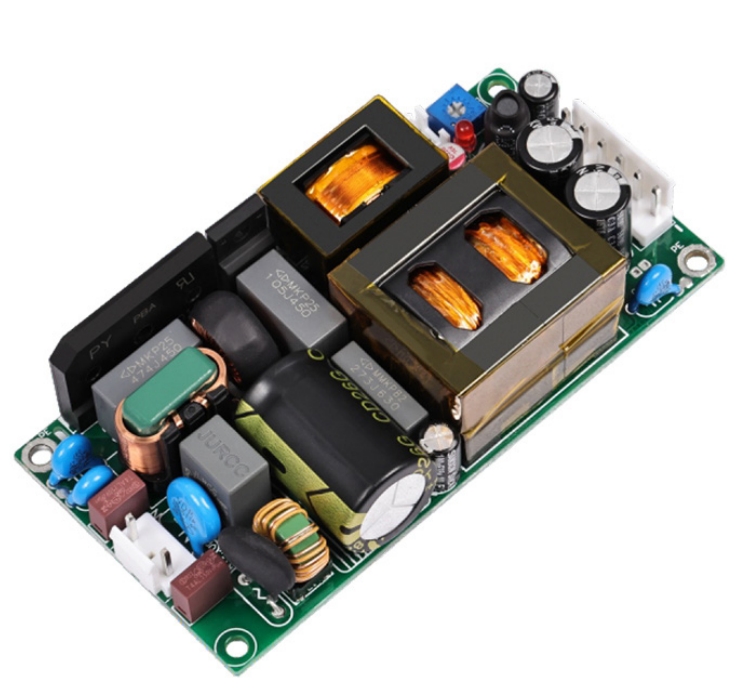

TPS-GSH225S-12V Power Supply
The TPS-GSH225S-12V is a high-performance Single Output Open Frame Power Supply in the TPS-GSH225S Series Power Supply. It supports 100-264VAC Input Power Supply and 141-370VDC Input Power Supply, adapting to global power grids. As a 140W Natural Cooling Power Supply, it delivers 140W under natural convection; with 13CFM fan cooling, it works as a 225W Fan Assisted Cooling Power Supply, providing up to 225W output. Operating in -25℃ to +70℃ Operating Power Supply range, it ensures stable performance. It features 4000VAC Isolation Voltage Power Supply for safety, Active PFC Function Power Supply to optimize power factor, and LED Indicator Power Supply for status monitoring.
As an Output Voltage Adjustable Power Supply, its range is 11.4~12.8V. With High Efficiency 94% Power Supply, it includes comprehensive protection: Input Undervoltage Protection Power Supply, Output Short Circuit Protection Power Supply, Overcurrent Protection Power Supply, Overvoltage Protection Power Supply, Overtemperature Protection Power Supply. Compact at 4×2×1 inches, it comes with a 3-year Warranty Power Supply, suitable for Industrial Automation Power Supply, Industrial Control Systems Power Supply, Communication Equipment Power Supply, LED Lighting Power Supply, Electronic Instruments Power Supply, Medical Equipment Power Supply.
Key Features
- Series Membership: Part of TPS-GSH225S Series Power Supply, ensuring consistent quality.
- Open-Frame Design: Structured as Single Output Open Frame Power Supply for flexible integration.
- Wide Input Compatibility: Supports 100-264VAC Input Power Supply and 141-370VDC Input Power Supply.
- Flexible Cooling: Functions as 140W Natural Cooling Power Supply and 225W Fan Assisted Cooling Power Supply 13CFM.
- Temperature Resilience: Operates in -25℃ to +70℃ Operating Power Supply environments.
- Safety & Efficiency: Equipped with 4000VAC Isolation Voltage Power Supply and High Efficiency 94% Power Supply.
- Enhanced Monitoring: Includes Active PFC Function Power Supply and LED Indicator Power Supply.
- Adjustable Output: Output Voltage Adjustable Power Supply with 11.4~12.8V range.
- Comprehensive Protection: Features Input Undervoltage Protection Power Supply, Output Short Circuit Protection Power Supply, Overcurrent Protection Power Supply, Overvoltage Protection Power Supply, Overtemperature Protection Power Supply.
- Compact & Warranted: Compact 4×2×1 inches Power Supply with 3-year Warranty Power Supply.
- Versatile Applications: Suitable for Industrial Automation Power Supply, Industrial Control Systems Power Supply, Communication Equipment Power Supply, and more.
Specifications
Parameter | Value |
---|---|
Dimensions (L*W*H)(mm) | 101.6*50.8*25.4mm |
Efficiency | 93% |
Input Current | 2.5A/115Vac, 1.2A/230Vac |
Input Voltage | 100-264Vac, 141-370Vdc |
Output Current | 11.67(Natural cooling), 18.75A(Fan cooling) |
Output Power | 140W/225W(Natural/Fan cooling) |
Output Voltage | 12V |
Weight | 165±10g |
