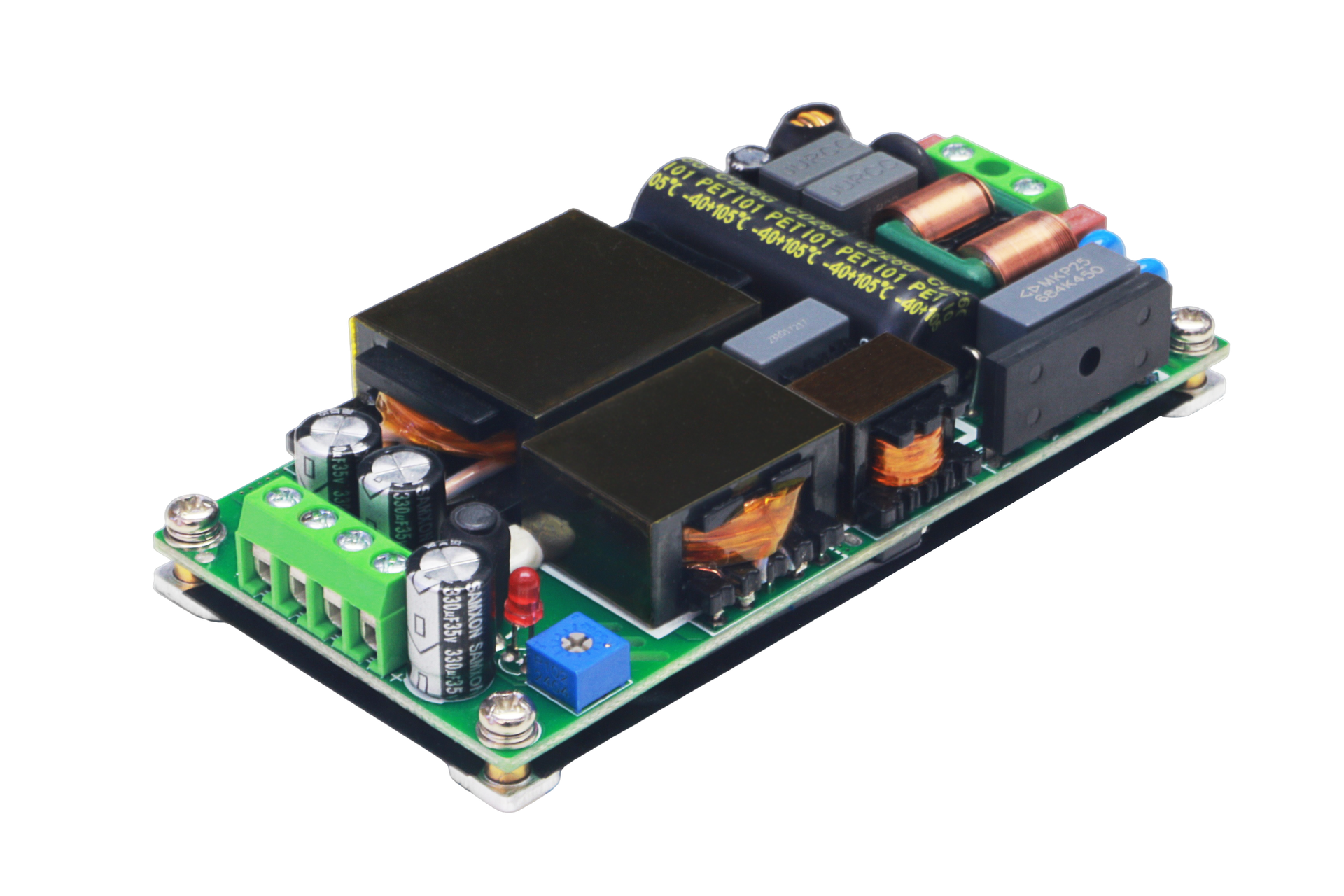

TPS-GSH180S-24V with Baseplate 180W Single Output Open Frame Power Supply

The TPS-GSH180S-24V with Baseplate is a robust and reliable 24 volt power supply and AC to DC power supply, enhanced with an integrated aluminum baseplate for superior mechanical stability and heat dissipation. This DC regulated power supply delivers up to 180W with 10CFM fan-assisted cooling (120W with natural cooling) from a wide universal input range of 85–264VAC or 120–370VDC. It features a user-adjustable output voltage from 22.8V to 27V, active PFC for improved efficiency, and comprehensive protection circuits including input undervoltage, output short circuit, overcurrent, overvoltage, and overtemperature. With an efficiency of up to 94%, 4000VAC reinforced isolation, and compliance with IEC62368/GB4943.1 safety standards, it is an ideal, durable power source for demanding applications in industrial automation, medical equipment, communication systems, and LED lighting.

Key Features

• Enhanced Design with Baseplate: Integrated aluminum baseplate (101.6×50.8×20.3mm, 165g) provides improved structural rigidity and thermal management for reliable operation in harsh environments.
• Wide Input & High Efficiency: Operates from 85–264VAC/120–370VDC input with up to 94% typical efficiency, ensuring energy savings and stable performance under varying line conditions.
• Dual Cooling & Power Modes: Offers 120W output via natural convection and 180W with 10CFM fan cooling, providing flexibility for different thermal and power requirements.
• Adjustable & Precise Output: Output voltage is finely adjustable from 22.8V to 27V, featuring ±1% voltage accuracy and low ripple noise (<100mVp-p) for consistent power delivery to sensitive loads.
• Comprehensive Protection & Safety: Equipped with full protections (UVLO, OCP, OVP, SCP, OTP) and meets IEC62368/GB4943.1 safety standards plus CISPR32/EN55032 Class B EMC, ensuring safe and reliable operation.
• Industrial-Grade Reliability: Designed for continuous operation in temperatures from -25°C to +70°C, making it suitable for critical applications in industrial and medical fields.
