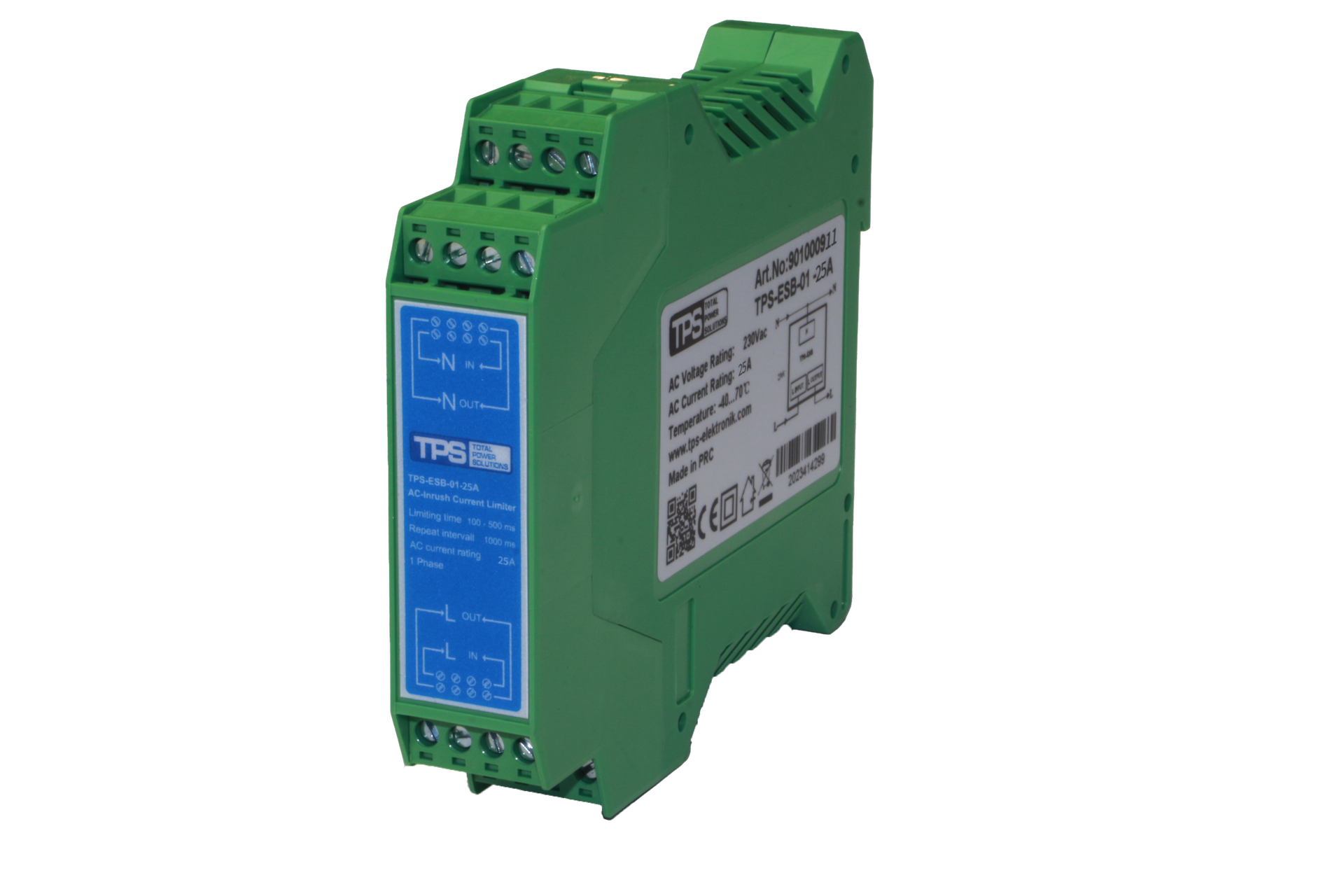

TPS-ESB-01-25A 25A AC-Inrush Current Limiter

The TPS-ESB-01-25A is a high-capacity 25A active inrush current limiter designed for robust 230VAC single-phase applications, providing critical starting current limiting for heavy-duty equipment. This sophisticated inrush current limiter circuit employs an integrated bypass relay, offering a more reliable and efficient solution compared to basic NTC thermistors by eliminating power loss after the startup phase. It is engineered to clamp high inrush currents, limiting peaks to 45A for a controlled duration of 100-500ms. This provides essential protection for systems with significant inductive loads such as large motors and isolating transformers, as well as capacitive loads, preventing damage and nuisance tripping. Housed in a compact, DIN-rail mountable IP20 case with screw terminals for AWG13-11 wires, it ensures easy integration into industrial control panels. By effectively managing inrush currents, it allows for the use of smaller cable cross-sections and faster-acting circuit breakers, optimizing system design and cost.

Key Features

• High 25A Rated Current: Supports demanding applications, making it an ideal starting current limiter for powerful motors and large transformers.
• Advanced IC-Based Limiting with Bypass Relay: Utilizes an integrated bypass relay for a non-NTC inrush limiter solution, ensuring high efficiency and long-term reliability.
• Effective Peak Current Suppression: Robustly limits inrush peaks to 45A for 100-500ms, safeguarding electrical components during startup.
• Easy DIN Rail Installation: Simplifies mounting and saves space on standard TS 35/7.5 or TS 35/15 vertical DIN rails.
• Durable Screw Terminal Connections: Designed for secure connections with AWG13-11 (2.6-4.2mm²) wires, ensuring stable performance.
• Wide Operational Tolerance: Built to operate in temperatures from 40°C to 70°C, up to 95% relative humidity (non-condensing), and at altitudes up to 2000 meters.
• Certified Safety and EMC: Complies with EN60950-1, EN61000-6-2,3 standards, and carries CE marking and RoHS compliance for safe deployment.
