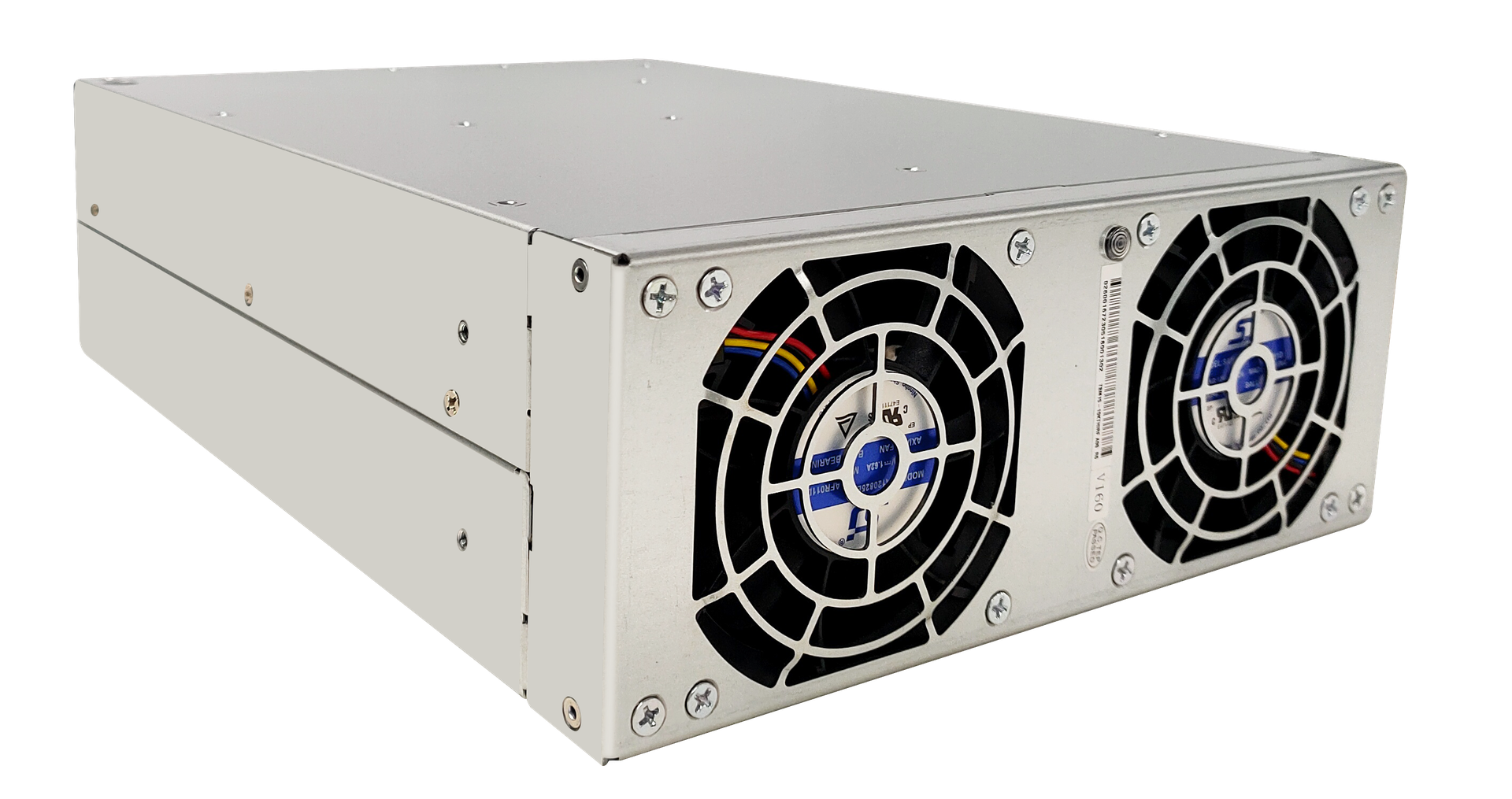

TPS-BM159000UHIRT Power Module

The TPS-BM159000UHIRT is a high-performance power module (TPS-BM159000UHIRT power module) that, along with the TPS-BM159000UHIT bidirectional power module, belongs to the three-phase AC-DC bidirectional module family. It adopts advanced three-phase no neutral line technology, qualifying as a no neutral line current power module to eliminate neutral line current issues in power systems. Leveraging mature soft switching technology (Soft switching technology power module), it ensures reliable and efficient bidirectional energy conversion, making it ideal for cell formation test equipment (Cell formation test power module), power bidirectional test equipment (Power bidirectional test equipment module), and energy recyclable power aging equipment (Energy recyclable power aging module).

As a 92%/91.5% high efficiency power module, it achieves 92% peak efficiency@480VAC in AC to DC direction and 91.5% peak efficiency@480VAC in DC to AC direction, reducing energy consumption significantly. It features high power factor (High PF >0.99 power module, PF=0.99@480VAC full load) and low input current total harmonic distortion (Low THDi <5% power module, THDi<5%@480VAC full load), ensuring excellent grid compatibility.

This 9000W/7200W bidirectional power module delivers 9000W rated output capacity (AC to DC) and 7200W rated input capacity (DC to AC). It operates as a 480VAC input power module with an AC input range of 384~528VAC and 50/60±5Hz frequency. As a 15.5VDC output power module, it provides 15.5VDC DC output with 580A (AC to DC) and 480A (DC to AC) rated currents (580A/480A output current module), while AC input current is <15A (<15A input current module).

Key Features

• Bidirectional Energy Flow: Functions as a three-phase AC-DC bidirectional module, supporting seamless isolation and energy conversion to meet fast response needs of test equipment.
• Advanced Technologies: Integrates soft switching technology for enhanced reliability; achieves high PF (>0.99) and low THDi (<5%) for optimal grid performance.
• High Efficiency: Boasts 92% (AC to DC@480VAC) and 91.5% (DC to AC@480VAC) peak efficiency, minimizing energy loss.
• Robust Adaptability: Operates at full load in -10°C~45°C (derating to 90% at 45°C~60°C), adapting to unstable grids and harsh environments with comprehensive fault protection.
• Cooling & Communication: Equipped with forced air cooling (Forced air cooling power module) with intelligent control; features R-type air flow (rear inlet and front outlet, front: fan; rear: terminal) for efficient heat dissipation. Supports CAN communication (CAN communication power module) for easy monitoring.
• Compact Design: Measures 218mm86mm300mm (218mm86mm300mm power module) and weighs 6.5kg (6.5kg bidirectional power module), suitable for space-constrained setups.
• Certifications & Compliance: Passes UL, CE, TUV certification (UL CE TUV certified power module) and complies with EN55032 standards (EN55032 compliant power module).
• Expandability: Modular design allows up to 4 units in parallel for flexible system scaling.
