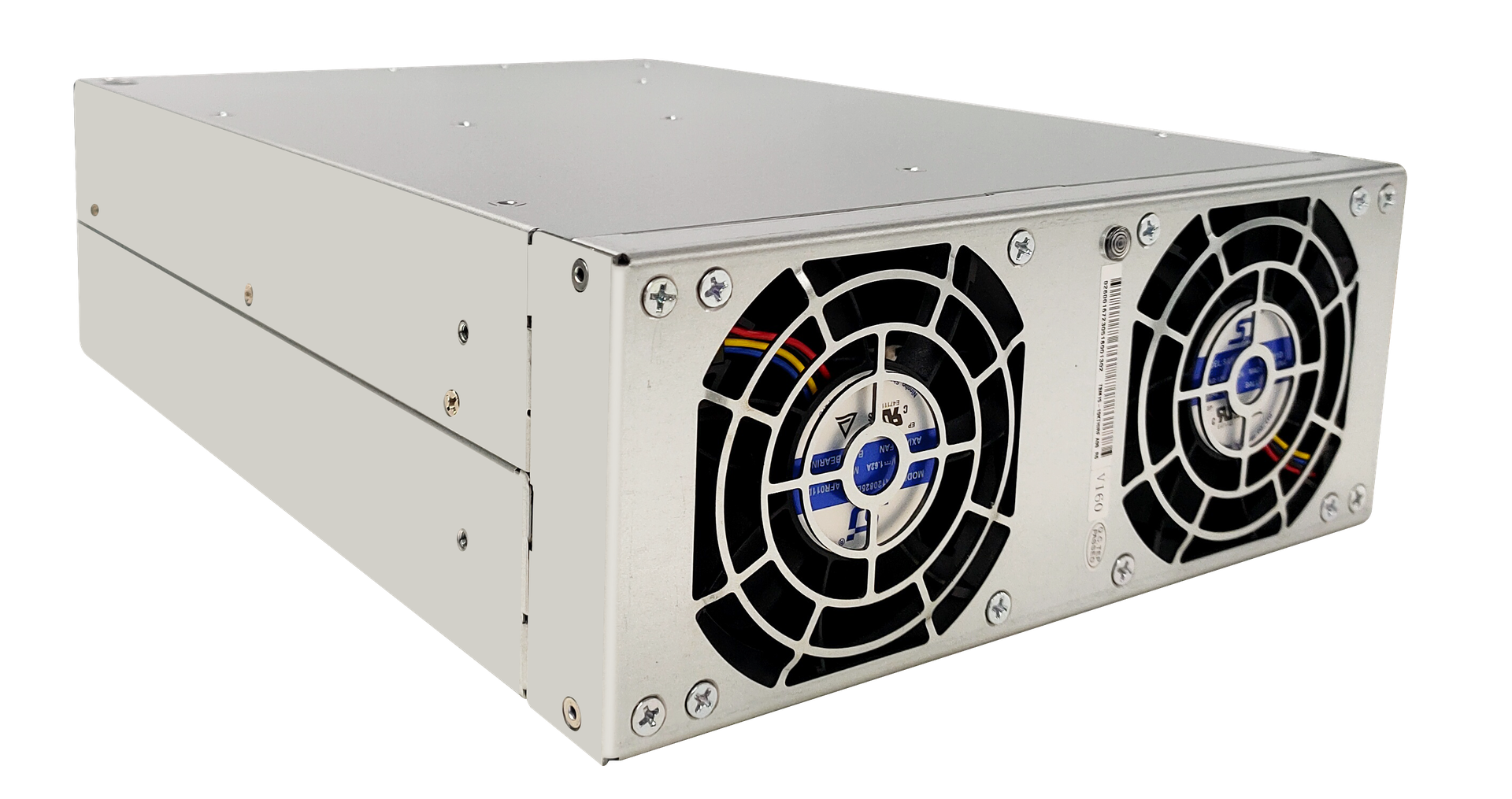

TPS-BM158000UHIRF Power Module

The TPS-BM158000UHIRF is a high-performance TPS-BM158000UHIRF power module, paired with the TPS-BM158000UHIF bidirectional power module, designed as a three-phase AC-DC bidirectional module. It adopts advanced three-phase no neutral line technology, making it a no neutral line current power module that eliminates neutral line current issues in power systems. Equipped with mature soft switching technology (Soft switching technology power module), it ensures reliable and efficient bidirectional energy conversion, suitable for applications such as cell formation test equipment (Cell formation test power module), power bidirectional test equipment (Power bidirectional test equipment module), and energy recyclable power aging equipment (Energy recyclable power aging module).

As a 92%/91.5% high efficiency power module, it achieves a peak efficiency of 92%@480VAC in AC to DC direction and 91.5%@480VAC in DC to AC direction, significantly reducing energy consumption. It features high power factor (High PF >0.99 power module, PF=0.99@480VAC full load) and low total harmonic distortion of input current (Low THDi <5% power module, THDi<5%@480VAC full load), ensuring excellent grid compatibility.

This 8000W/6400W bidirectional power module delivers 8000W rated output capacity in AC to DC direction and 6400W rated input capacity in DC to AC direction. It operates as a 480VAC input power module with an AC input voltage range of 384~528VAC (full load) and a frequency range of 50/60±5Hz. As a 15VDC output power module, it provides 15VDC DC output with rated currents of 533.3A (AC to DC) and 427A (DC to AC, 533.3A/427A output current module), while the AC input current is <14A (<14A input current module).

Key Features

• Bidirectional Energy Flow: Functions as a three-phase AC-DC bidirectional module, supporting seamless isolation and energy conversion, ensuring reliable performance in grid-connected systems.
• Advanced Technologies: Integrates soft switching technology for enhanced reliability and efficiency; achieves high PF (>0.99) and low THDi (<5%) for optimal grid performance.
• High Efficiency: Boasts 92% peak efficiency (AC to DC@480VAC) and 91.5% peak efficiency (DC to AC@480VAC), minimizing energy loss and reducing operational costs.
• Robust Adaptability: Operates at full load in -10°C~45°C, with derating to 90% at 45°C~60°C; adapts to unstable grids and harsh environments, equipped with perfect fault protection functions.
• Cooling & Communication: Features forced air cooling (Forced air cooling power module) with intelligent control (air flow options include front inlet/rear outlet and R-type rear inlet/front outlet) and CAN communication (CAN communication power module) for efficient operation and monitoring.
• Compact Design: Measures 176mm86mm285mm (176mm86mm285mm power module) and weighs ≤8kg (≤8kg bidirectional power module), ideal for space-constrained industrial installations.
• Certifications & Compliance: Can pass UL, CE, TUV certification (UL CE TUV certified power module) and meets EN55032 standards (EN55032 compliant power module), ensuring global compatibility.
• Expandability: Modular design supports intelligent expansion with up to 4 units connected in parallel, suitable for scalable system configurations.
