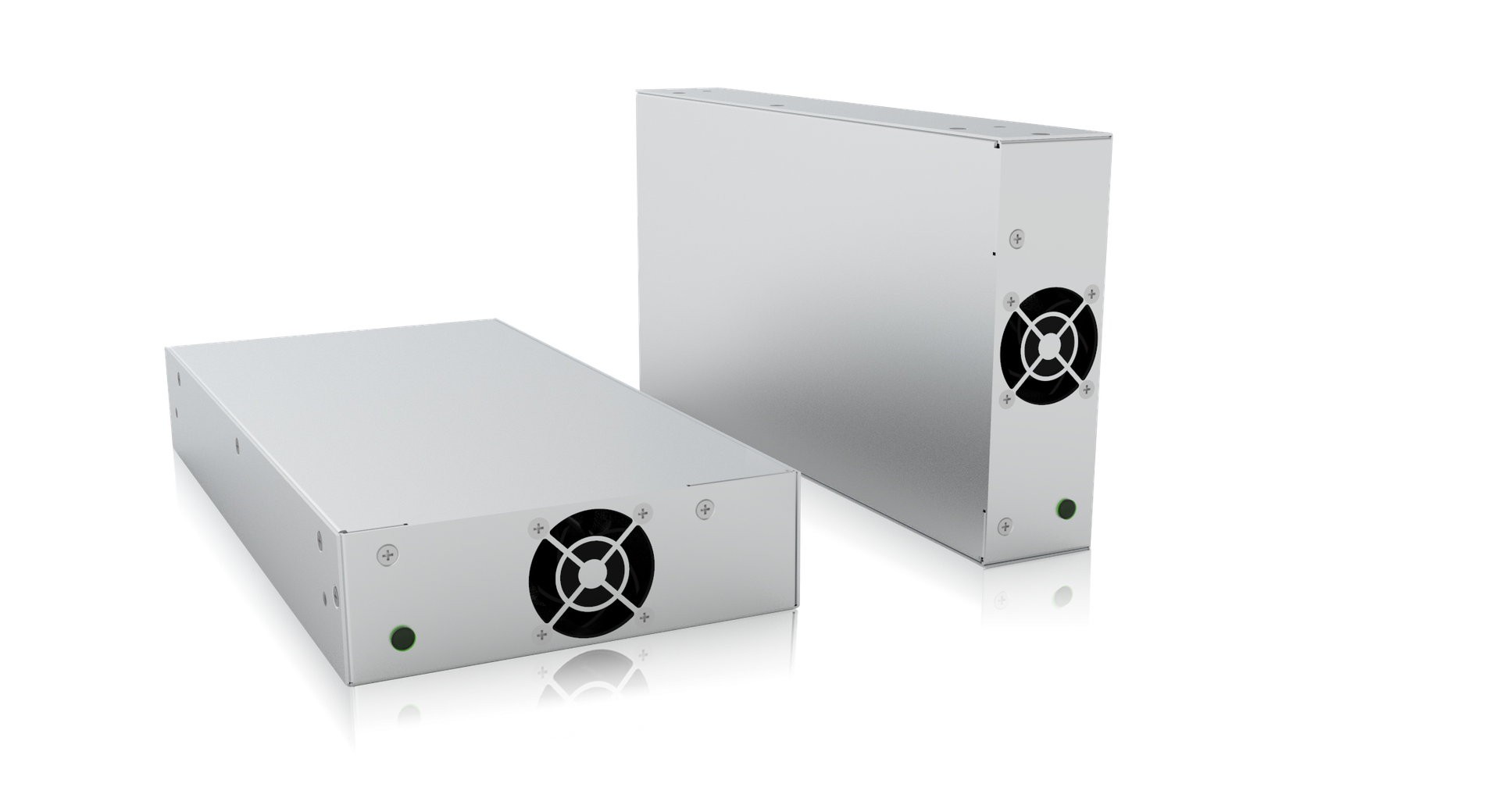

TPS-BM152250SIRF-U Bidirectional Power Module

The TPS-BM152250SIRF-U Bidirectional Power Module is a high-performance 2250W Single-Phase AC-DC Module, part of the TPS-BM152250SI(R)F-U series, designed for seamless bidirectional energy conversion in diverse electrical test scenarios. As an AC-DC Bidirectional Isolation Module, it enables reliable inverter operation in grid-connected systems and supports efficient energy flow between AC and DC sides, leveraging mature soft switching technology for enhanced reliability and strong grid/environment adaptability. Featuring high efficiency with 91% in AC to DC mode and 90% in DC to AC mode (High Efficiency Bidirectional Module), it maintains superior power quality with a high power factor (PF>0.99, High PF>0.99 Power Module) and low total harmonic distortion (THDi <5%, Low THDi <5% Power Module) under full load. It incorporates seamless voltage switching (Seamless Voltage Bidirectional Switch Module), meeting the fast response demands of test equipment. As a Single-Phase LV AC-DC Power Module, it accepts a 220/230/240VAC input (220/230/240VAC Input Power Module) within 176~264VAC and delivers a stable 15.5VDC output (15.5VDC Output Bidirectional Module) with a rated current of 145.2A (145.2A DC Output Power Module). Equipped with Forced Air Cooling (R-type: rear inlet and front outlet, with front fan and rear terminal), it adapts to harsh environments with no derating at 45°C (Harsh Environment Adaptable Power Module). With a Modular Bidirectional Power Module design, it supports intelligent expansion and automatic parallel operation of up to 4 units. It complies with EN55032 (EN55032 Compliant Power Module), has passed UL62368-1 certification (UL62368-1 Certified Power Module), and can be CE/TUV certified (CE/TUV Certifiable Power Module), making it ideal for Cell Formation Testing Power Module, Power Bidirectional Testing Module, and Energy Recyclable Power Module applications.

Key Features

• Bidirectional Isolation & Energy Flow: Facilitates AC-DC and DC-AC conversion with reliable grid-connected inverter performance.
• High Efficiency & Power Quality: 91% AC-DC/90% DC-AC efficiency, PF>0.99, and THDi <5% for optimal operational performance.
• Seamless Switching: Voltage seamless switching ensures fast response, suitable for test equipment requirements.
• Modular & Expandable: Supports up to 4 units in parallel for flexible power scaling via intelligent expansion.
• Reliable & Compliant: R-type forced air cooling, harsh environment adaptability, EN55032 compliance, and UL/CE/TUV certification readiness.
