Product Description

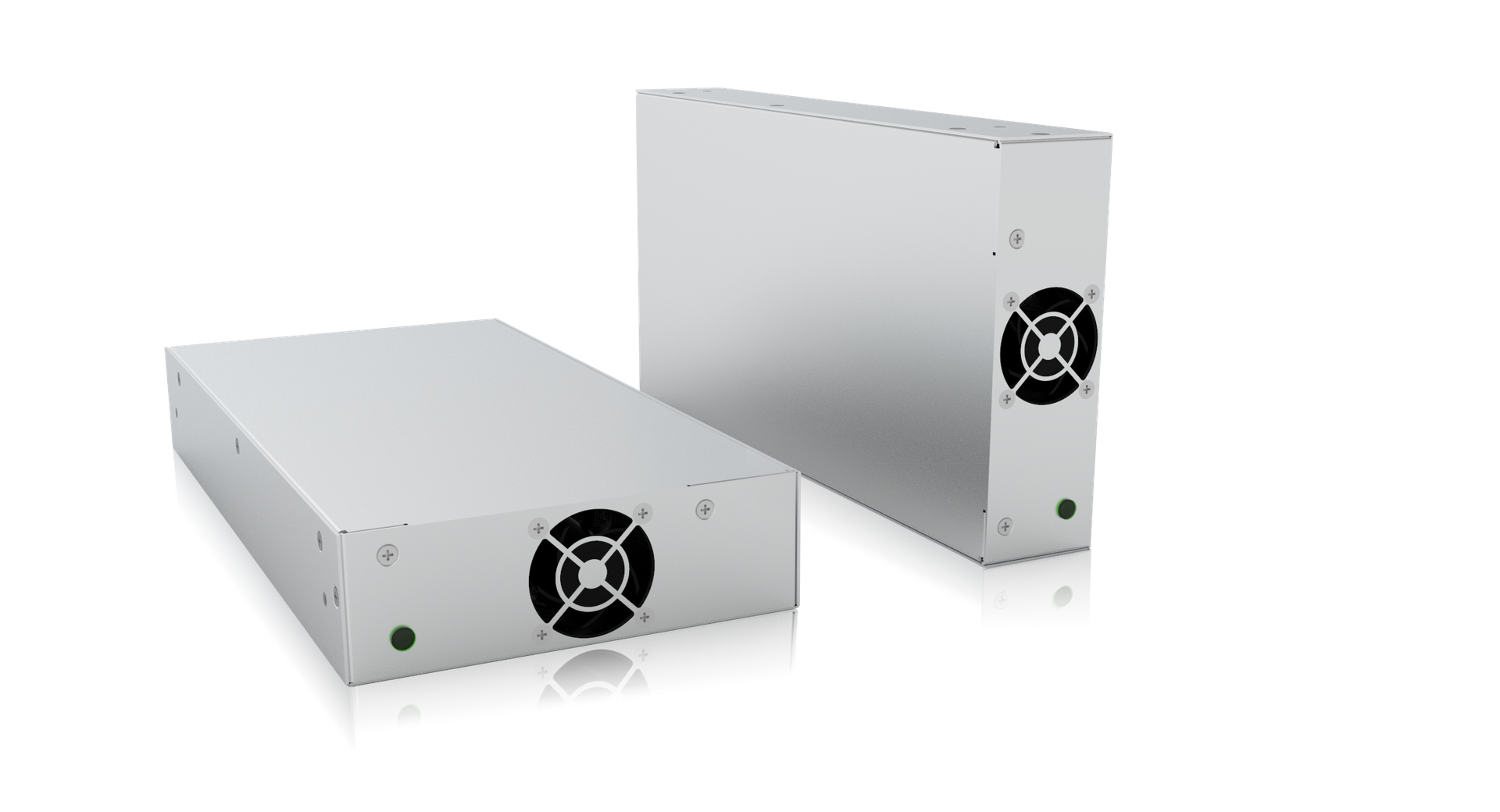

TPS-BM152250SIF-U Bidirectional Power Module
The TPS-BM152250SIF-U Bidirectional Power Module is a high-performance 2250W Single-Phase AC-DC Module, designed for seamless bidirectional energy conversion in various electrical test scenarios. As an AC-DC Bidirectional Isolation Module, it enables reliable inverter operation in grid-connected systems and supports efficient energy flow between AC and DC sides. It adopts mature soft switching technology, ensuring high reliability and strong adaptability to grids and environments. Boasting high efficiency with 91% in AC to DC mode and 90% in DC to AC mode (High Efficiency Bidirectional Module), it maintains excellent power quality with a high power factor (PF>0.99, High PF>0.99 Power Module) and low total harmonic distortion (THDi <5%, Low THDi <5% Power Module) under full load. It features seamless voltage switching (Seamless Voltage Bidirectional Switch Module), meeting the fast response requirements of test equipment. Operating as a Single-Phase LV AC-DC Power Module, it accepts a 220/230/240VAC input (220/230/240VAC Input Power Module) within the range of 176~264VAC and delivers a stable 15.5VDC output (15.5VDC Output Bidirectional Module) with a rated current of 145.2A (145.2A DC Output Power Module). Equipped with Forced Air Cooling (default front inlet and rear outlet), it adapts to harsh environments with no derating at 45°C (Harsh Environment Adaptable Power Module). With a Modular Bidirectional Power Module design, it supports intelligent expansion and automatic parallel operation of up to 4 units. It complies with EN55032 (EN55032 Compliant Power Module), has passed UL62368-1 certification (UL62368-1 Certified Power Module), and can be CE/TUV certified (CE/TUV Certifiable Power Module), making it ideal for Cell Formation Testing Power Module, Power Bidirectional Testing Module, and Energy Recyclable Power Module applications.
Key Features
- Bidirectional Isolation & Energy Flow: Enables AC-DC and DC-AC conversion with reliable grid-connected inverter operation.
- High Efficiency & Power Quality: 91% AC-DC/90% DC-AC efficiency, PF>0.99, and THDi <5% for optimal performance.
- Seamless Switching: Voltage seamless switching meets fast response needs of test equipment.
- Modular & Expandable: Supports up to 4 units in parallel for flexible power scaling.
- Reliable & Compliant: Forced air cooling, harsh environment adaptability, EN55032 compliance, and UL/CE/TUV certification readiness.
Specifications
Parameter | Value |
---|---|
Air Flow | From front to rear |
Dimensions (L*W*H)(mm) | 141*44*285 |
Efficiency | 90%(DC to AC), 91%(AC to DC) |
Input Current | ≤15A(AC to DC), 100.8A(DC to AC) |
Input Power | 1562W(DC to AC) |
Input Voltage | 15.5Vdc, 176-264Vac |
Output Current | 145.2A(AC to DC) |
Output Power | 2250W(AC to DC) |
Output Voltage | 15.5Vdc, 176-264Vac |
Output Voltage Accuracy | 1%(AC to DC) |
Rated Input Voltage | 220Vac, 230Vac, 240Vac |
Weight | ≤2.4kg |
