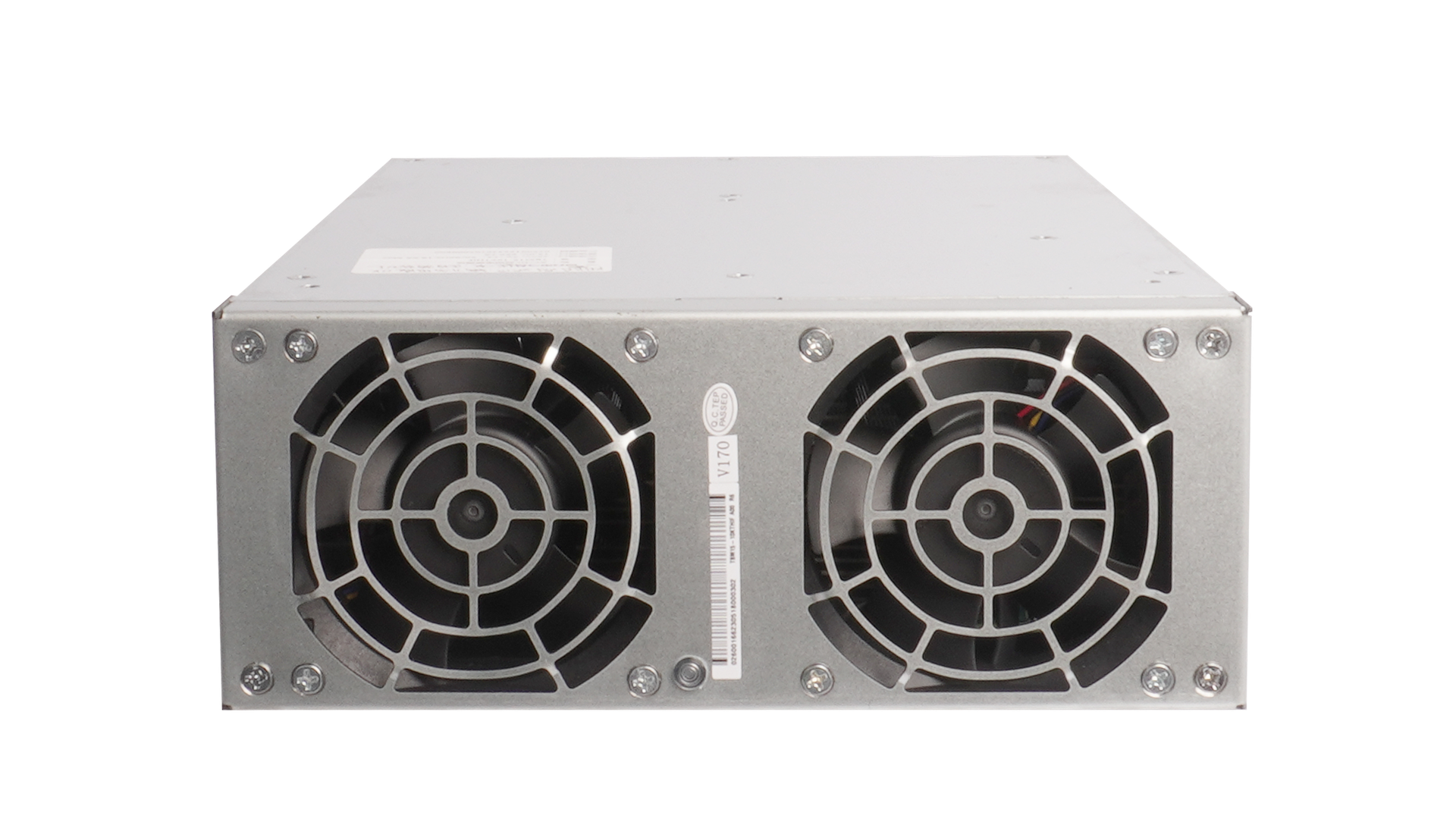

TPS-BM1510KUHIF Bidirectional Power Module

The TPS-BM1510KUHIF Bidirectional Power Module is a high-performance three-phase solution, part of the TPS-BM1510KUHIF/TPS-BM1510KUHIRF series, designed for seamless AC-DC and DC-AC energy conversion. As a Three-Phase No Neutral Line Power Module, it eliminates neutral line current issues, ensuring stable operation in three-phase systems and completely solving the problem of neutral line current in power systems. It adopts mature soft switching technology, offering high reliability, strong grid and environment adaptability, and bidirectional seamless switching without voltage difference. In AC-DC direction, it delivers a rated output of 10000W (10000W Three-Phase AC-DC Module) with a 15.5VDC output (15.5VDC Output Bidirectional Module) and 645A current (645A DC Output Power Module). It operates with a 480VAC input (480VAC Input Power Module) within the range of 384~528VAC, with a frequency range of 50/60±5Hz adaptive control. It boasts 92% peak efficiency (92% High Efficiency Bidirectional Module), high power factor (PF>0.99, High PF>0.99 Three-Phase Module), and low total harmonic distortion (THDi <5%, Low THDi <5% Power Module) under full load. As a Three-Phase AC-DC Bidirectional Isolation Module, it supports grid-connected inverter operations (Grid-Connected Inverter Power Module) with excellent EMC performance meeting EN55032 (EN55032 Compliant Power Module). Equipped with Forced Air Cooling (front inlet and rear outlet), it operates reliably in harsh environments with no derating at 45°C (Harsh Environment Adaptable Power Module), and from -10°C to 45°C at full load, with power derating to 90% from 45°C to 60°C. With a Modular Bidirectional Power Module design, it enables intelligent expansion and automatic parallel operation with up to 4 units in parallel. It features a complete fault protection function and can pass UL, CE, TUV certification (UL/CE/TUV Certified Power Module). Ideal for applications such as Cell Formation Testing Power Module, Power Bidirectional Testing Module, and Energy Recyclable Power Module, it fits the Three-Phase LV AC-DC Power Module category.

Key Features

• Three-Phase No Neutral Line Design: Eliminates neutral line current, solving power system neutral line issues and enhancing stability.
• High Performance: 10000W AC-DC output, 92% efficiency, 480VAC input, 15.5VDC/645A output, PF>0.99, and THDi <5% for superior power quality.
• Bidirectional Isolation: Supports seamless AC-DC/DC-AC conversion, suitable for grid-connected inverter systems with reliable operation.
• Modular & Expandable: Up to 4 units in parallel for flexible power scaling, with intelligent expansion and automatic parallel operation.
• Durable & Compliant: Forced air cooling, harsh environment adaptability (no derating at 45°C), EN55032 compliance, and UL/CE/TUV certification readiness.
